Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake Systems (Diagnostics)
>>
Diagnostics Chart with Diagnosis Connector
>>
DTC 41: Abnormal Abs Control Module
>>
Diagnostic Procedures:
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedures:

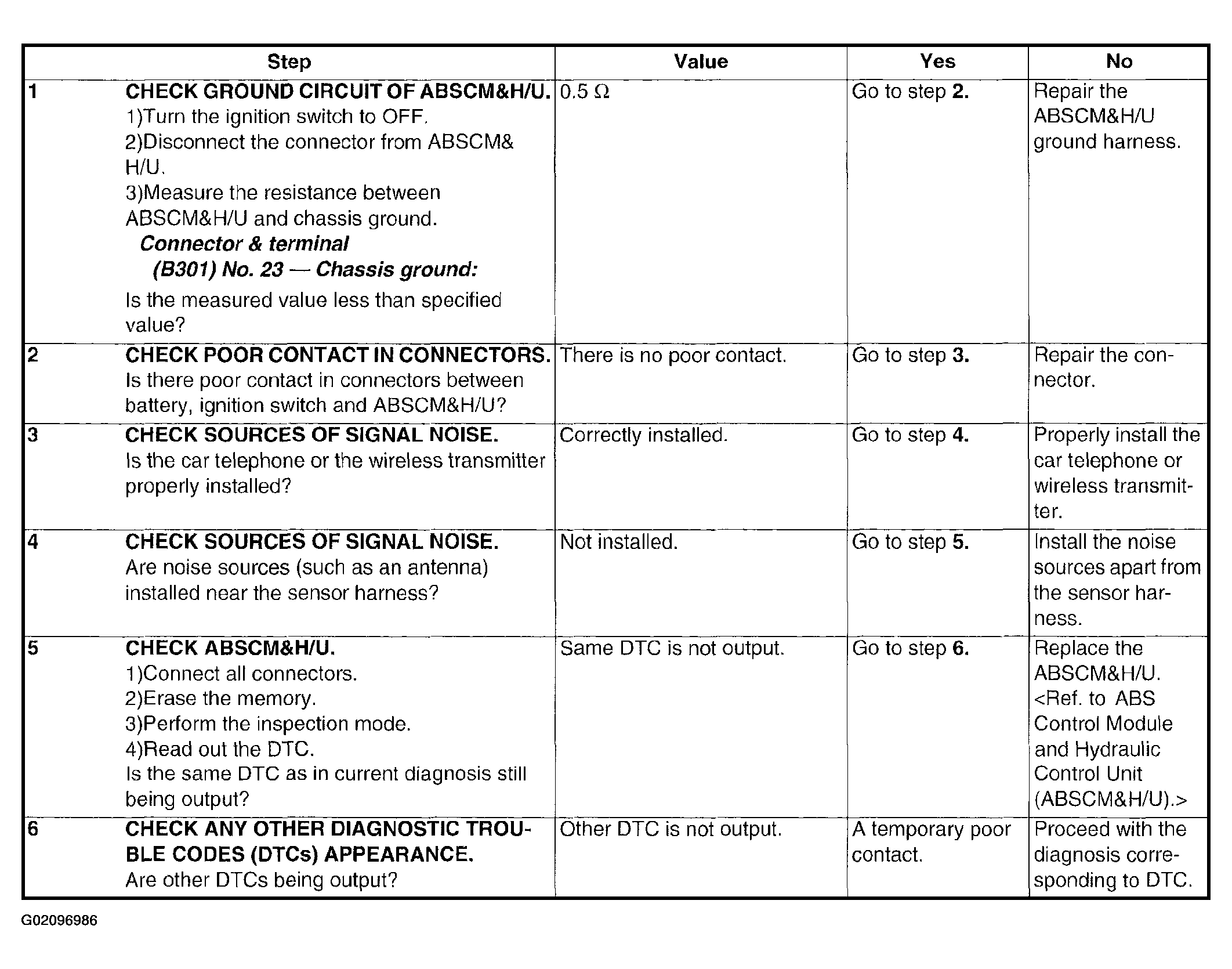

Fig 1: Abnormal ABS Control Module Diagnostic Procedure Chart
Courtesy of SUBARU OF AMERICA, INC.
