Low Clutch Timing Solenoid

This solenoid is mounted on the transmission hydraulic control valve body. It is turned ON or OFF according to signals from the TCM. It then controls the low clutch timing valve B and reverse inhibitor valve.

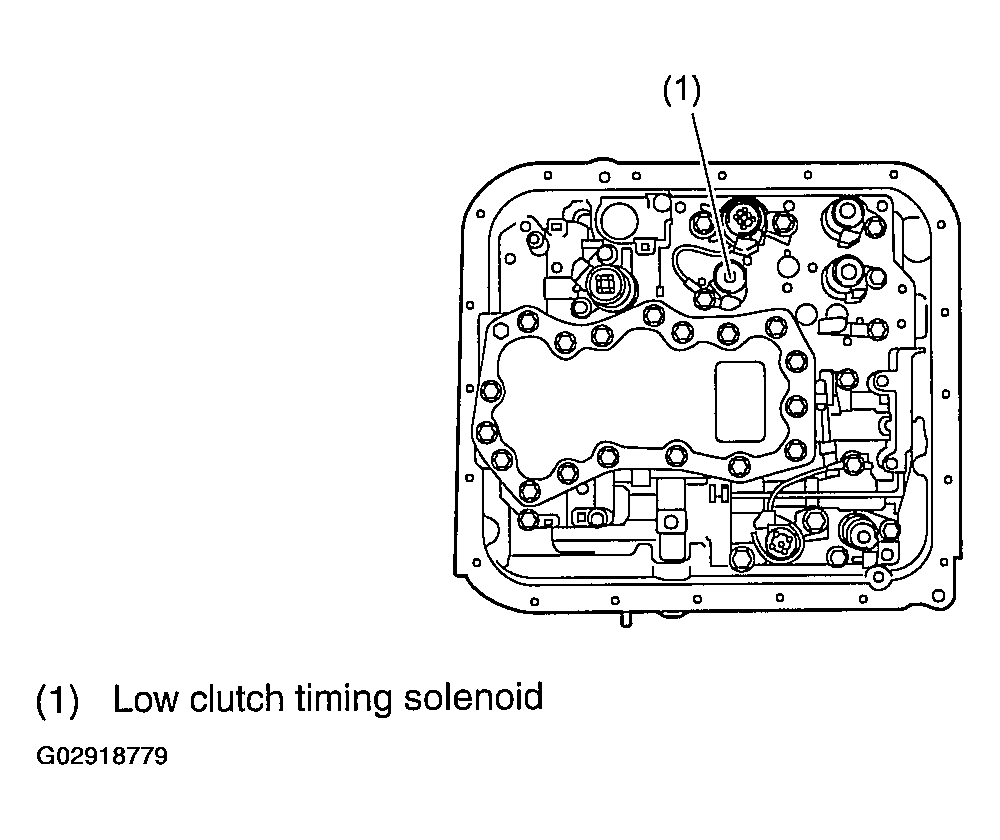

Fig 1: Identifying Low Clutch Timing Solenoid

Courtesy of SUBARU OF AMERICA, INC.
