Circuit Diagram

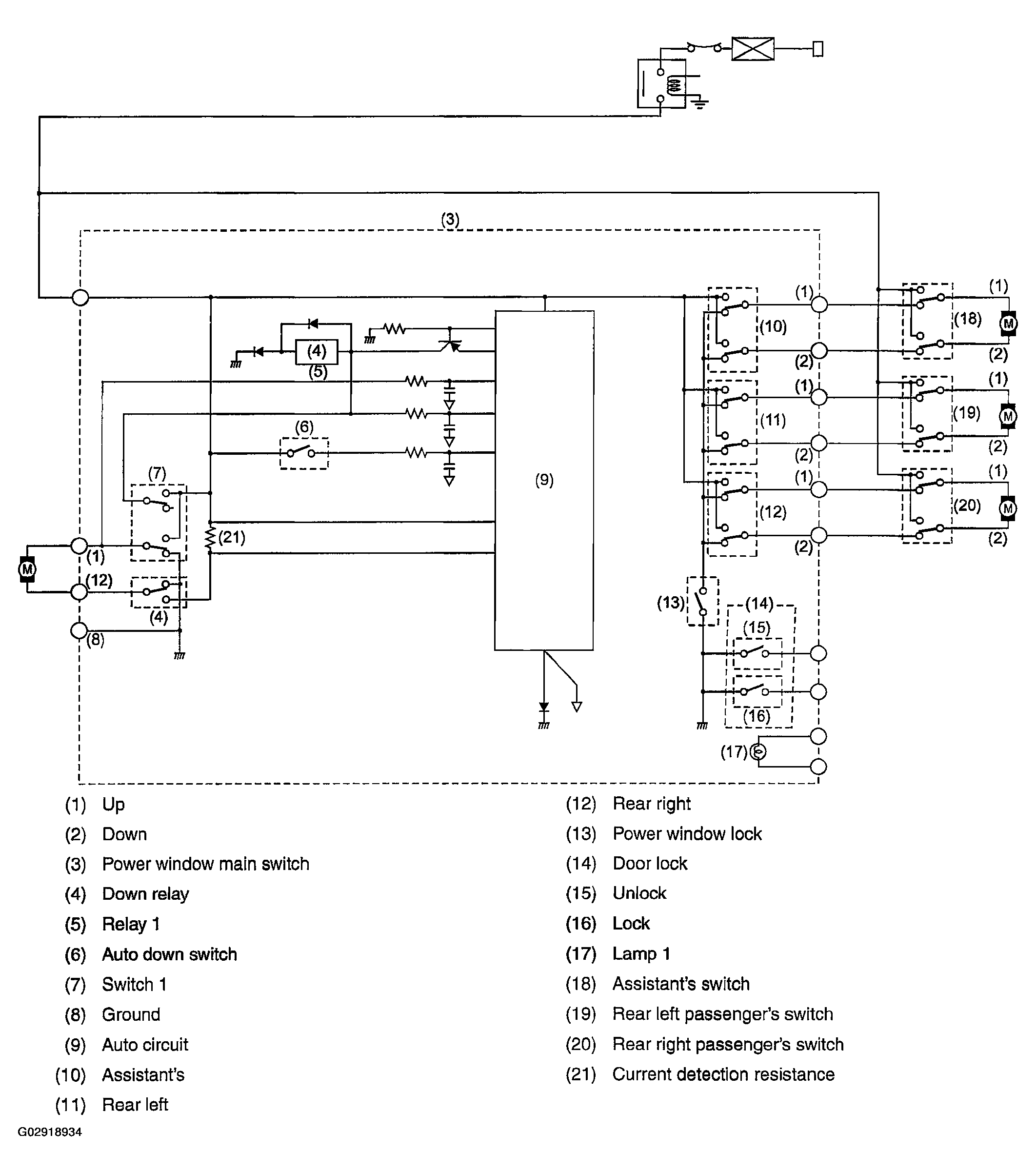

Fig 1: Circuit Diagram - Power Window

G02918934

Courtesy of SUBARU OF AMERICA, INC.
