Line Pressure Test: Measurement: Evaluation

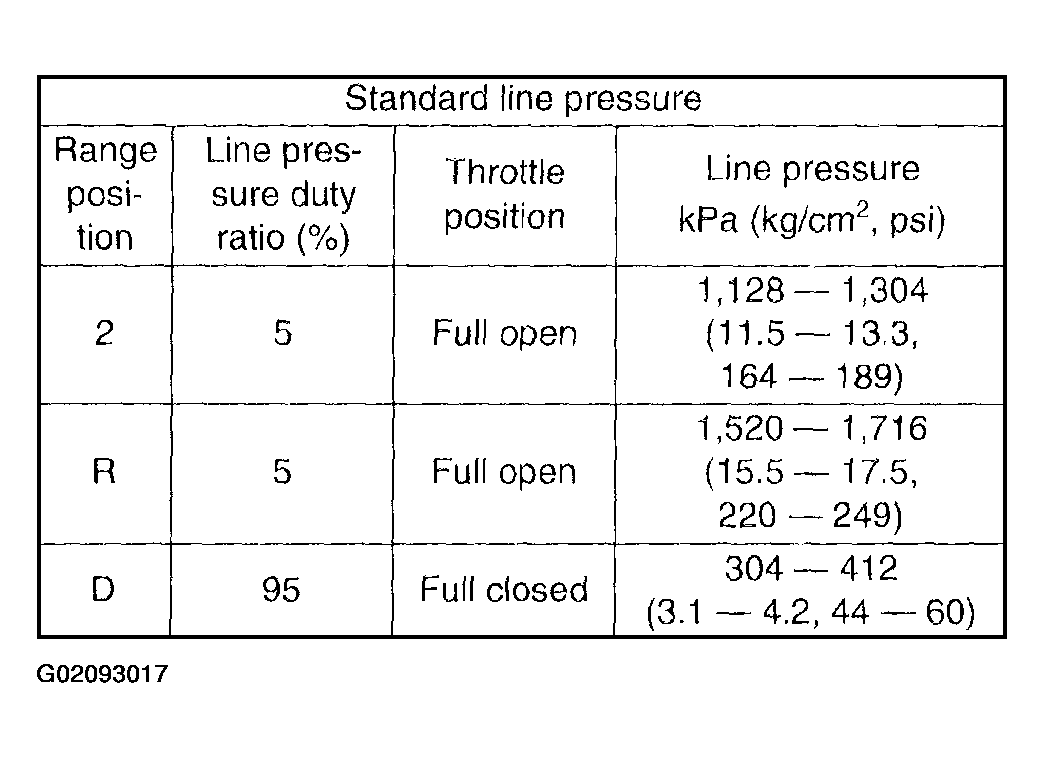

Fig 1: Standard Line Pressure Chart

G02093017

Courtesy of SUBARU OF AMERICA, INC.
