2-4 Brake: Removal

  1. Remove the transmission assembly from the vehicle. Refer to REMOVAL , Automatic Transmission Assembly.
  2. Extract the torque converter clutch assembly. Refer to REMOVAL , Torque Converter Clutch Assembly.
  3. Remove the input shaft.

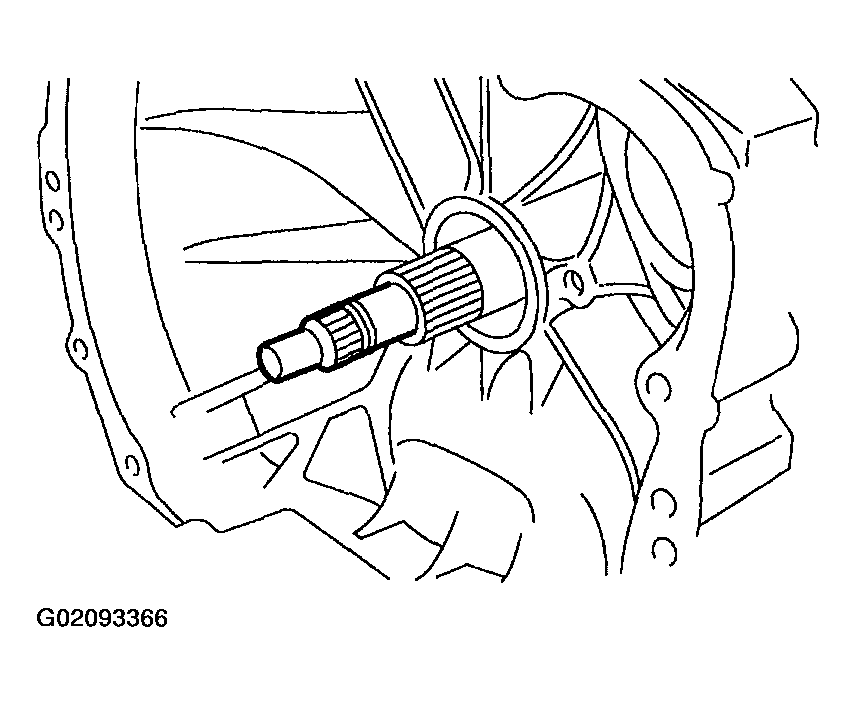

    Fig 1: Removing Input Shaft
    G02093366Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the air breather hose. Refer to REMOVAL , Air Breather Hose.
  5. Lift-up lever behind the transmission harness connector and disconnect it from stay.
  6. Disconnect inhibitor switch connector from stay.
  7. Remove the oil charger pipe. Refer to REMOVAL , Oil Charger Pipe.
  8. Remove the oil cooler inlet and outlet pipes with washers. Refer to REMOVAL , ATF Cooler Pipe and Hose.
  9. Remove rear vehicle speed sensor, and separate the transmission case and extension case. Refer to REMOVAL , Extension Case.
  10. Remove reduction driven gear. Refer to REMOVAL , Reduction Driven Gear.
  11. Separation of torque converter clutch case and transmission case. Refer to REMOVAL , Torque Converter Clutch Case.
  12. Remove the oil pan and control valve body. Refer to REMOVAL , Control Valve Body.
  13. Remove the oil pump housing. Refer to REMOVAL , Oil Pump.
  14. Remove 2-4 brake seal.

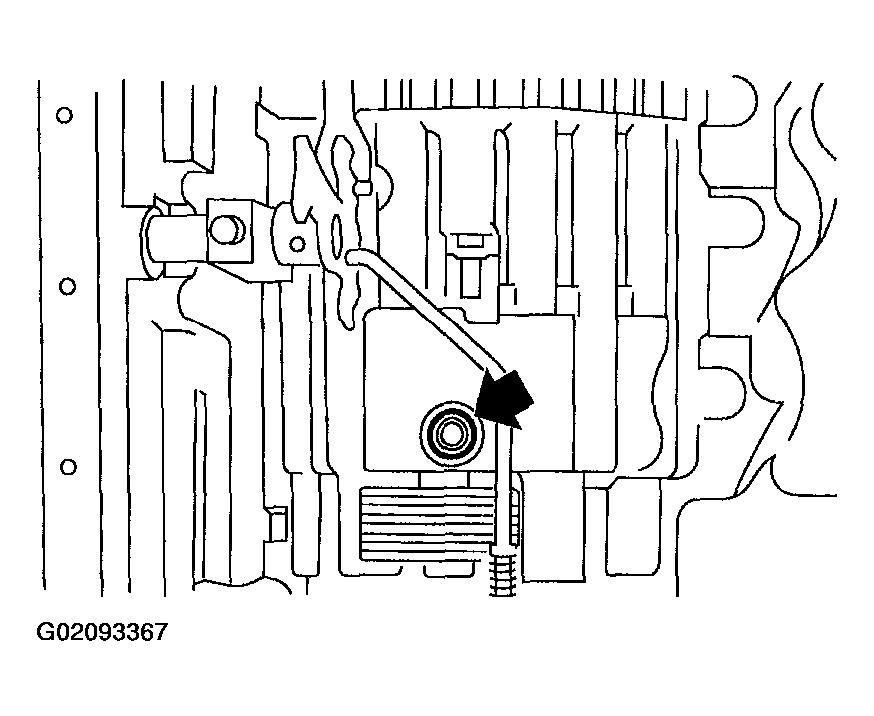

    Fig 2: Removing 2-4 Brake Seal
    G02093367Courtesy of SUBARU OF AMERICA, INC.
  15. Take out the high clutch and reverse clutch assembly. Refer to REMOVAL , High Clutch and Reverse Clutch.
  16. Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly. Refer to REMOVAL , Planetary Gear and Low Clutch.
  17. Remove snap ring.

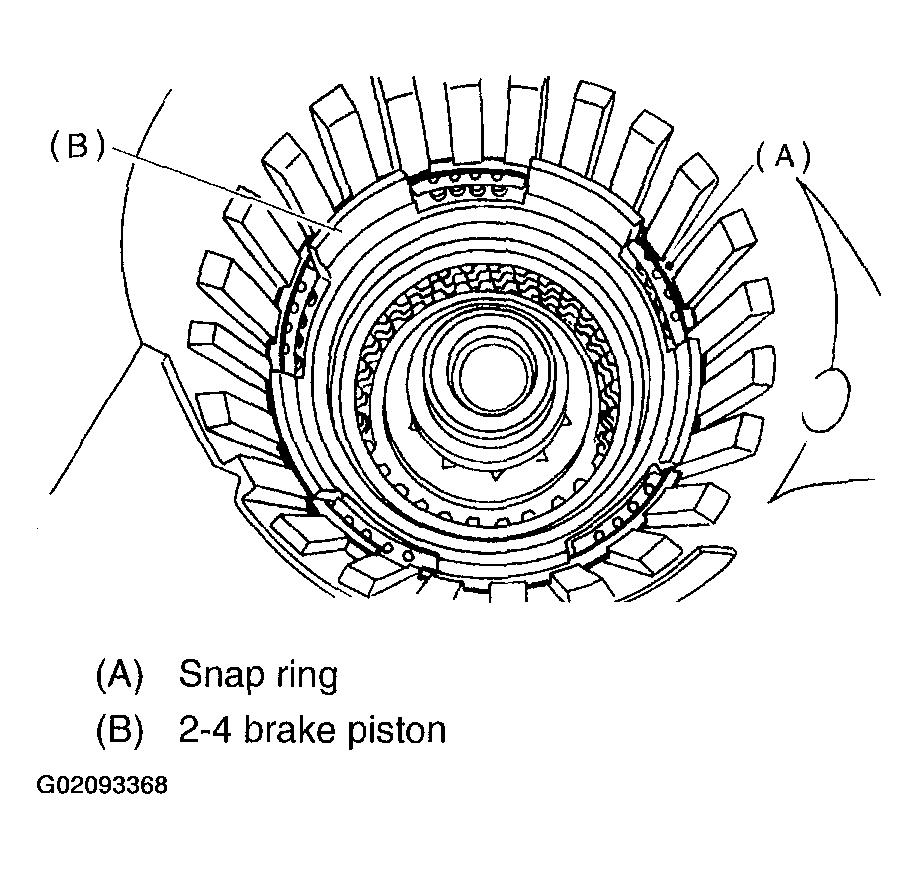

    Fig 3: Removing Snap Ring
    G02093368Courtesy of SUBARU OF AMERICA, INC.
  18. Take out 2-4 brake return spring.

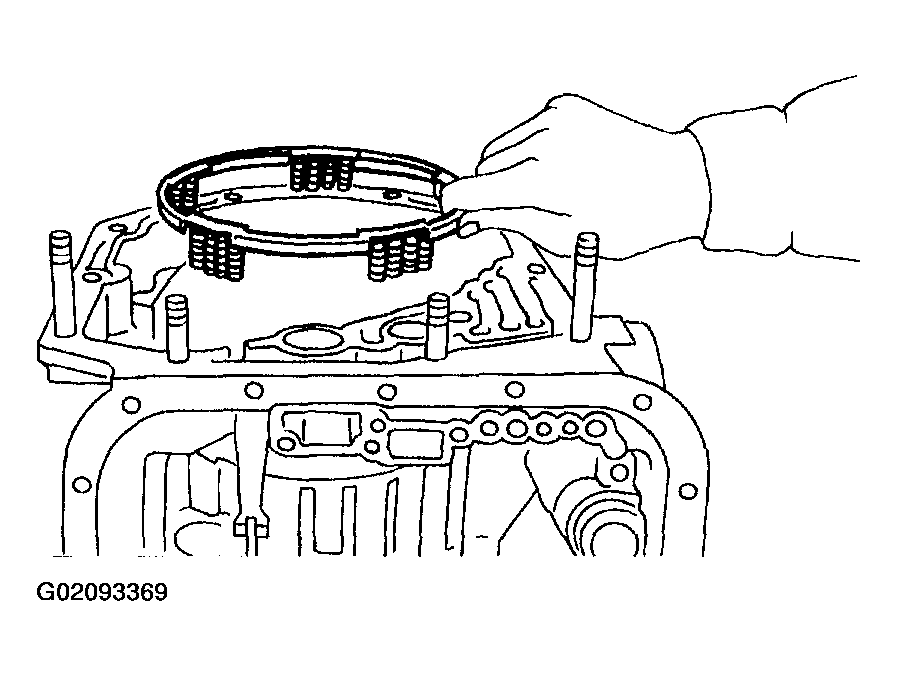

    Fig 4: Removing 2-4 Brake Return Spring
    G02093369Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the 2-4 brake piston and piston retainer without damaging.

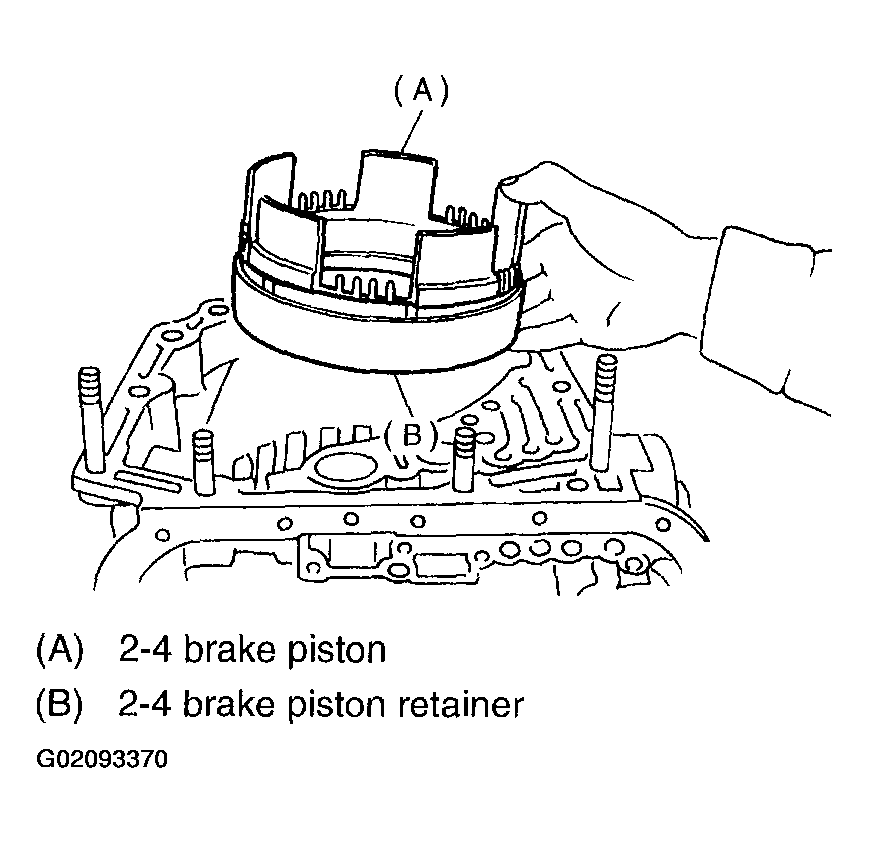

    Fig 5: Removing 2-4 Brake Piston & Piston Retainer
    G02093370Courtesy of SUBARU OF AMERICA, INC.
  20. Separate 2-4 brake piston and piston retainer.

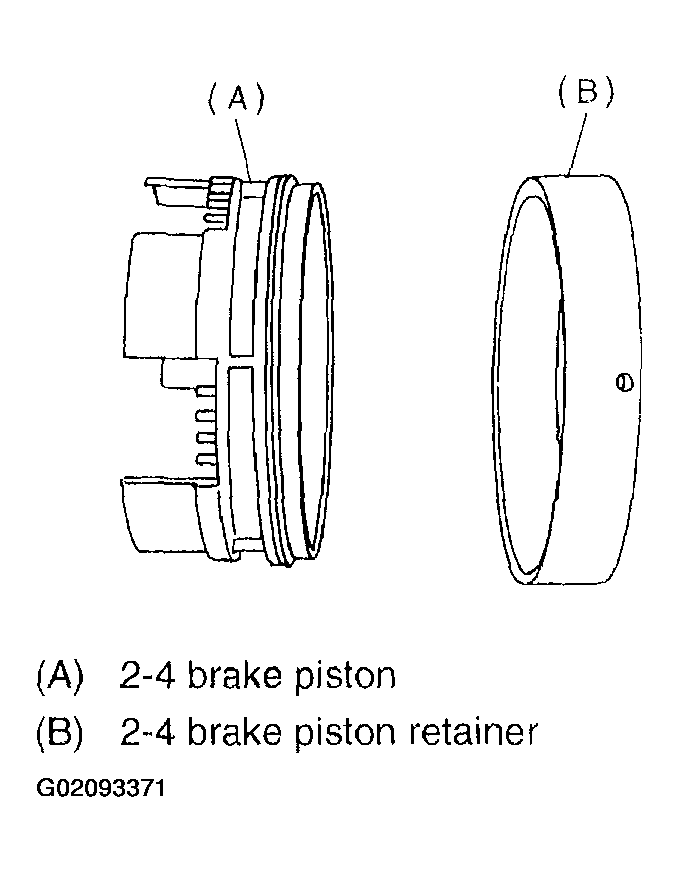

    Fig 6: Separating 2-4 Brake Piston & Piston Retainer
    G02093371Courtesy of SUBARU OF AMERICA, INC.
