Integrated Module Power Supply and Ground Line
INTEGRATED MODULE POWER SUPPLY AND GROUND LINE

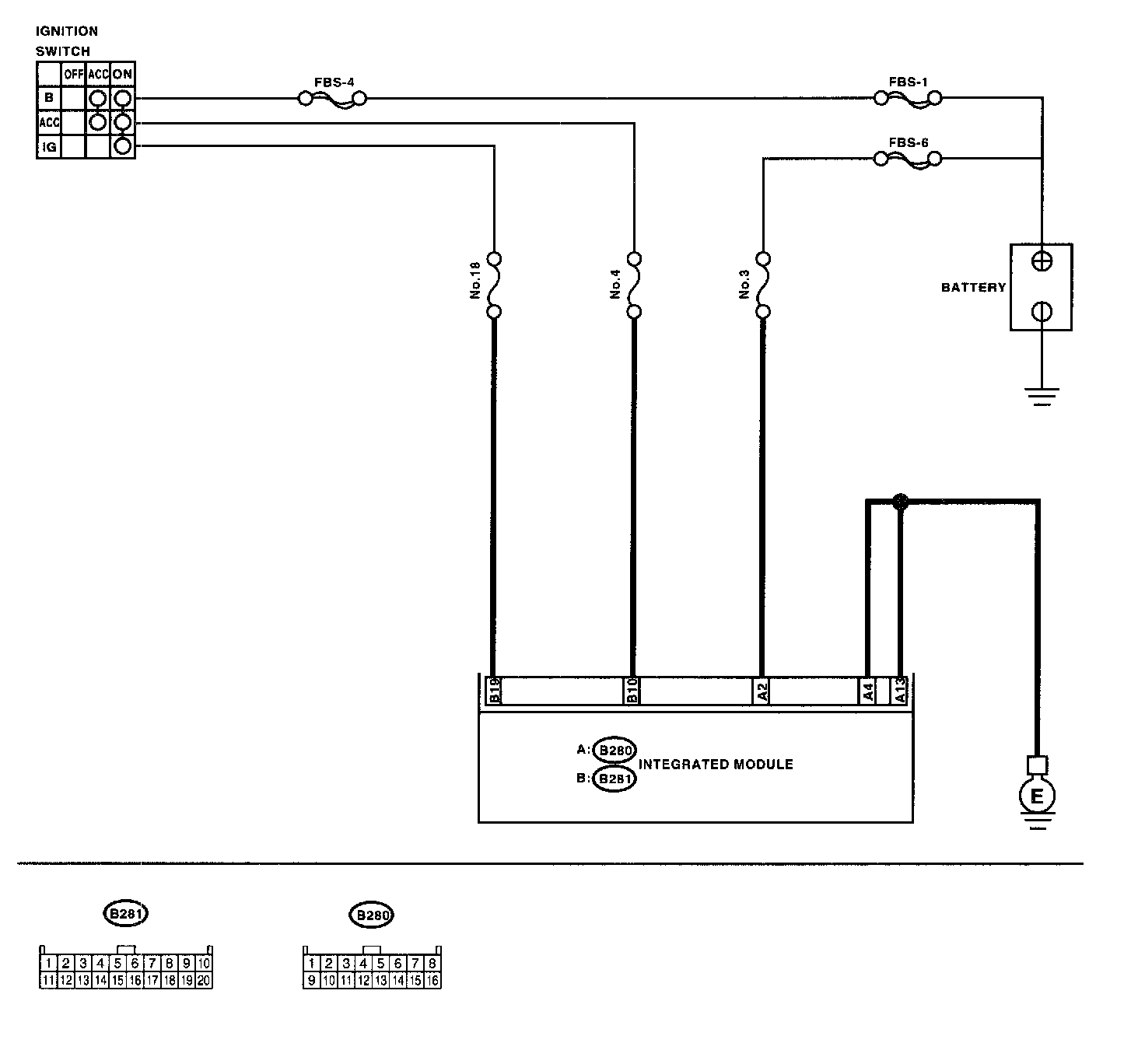

WIRING DIAGRAM:
