System Specifications

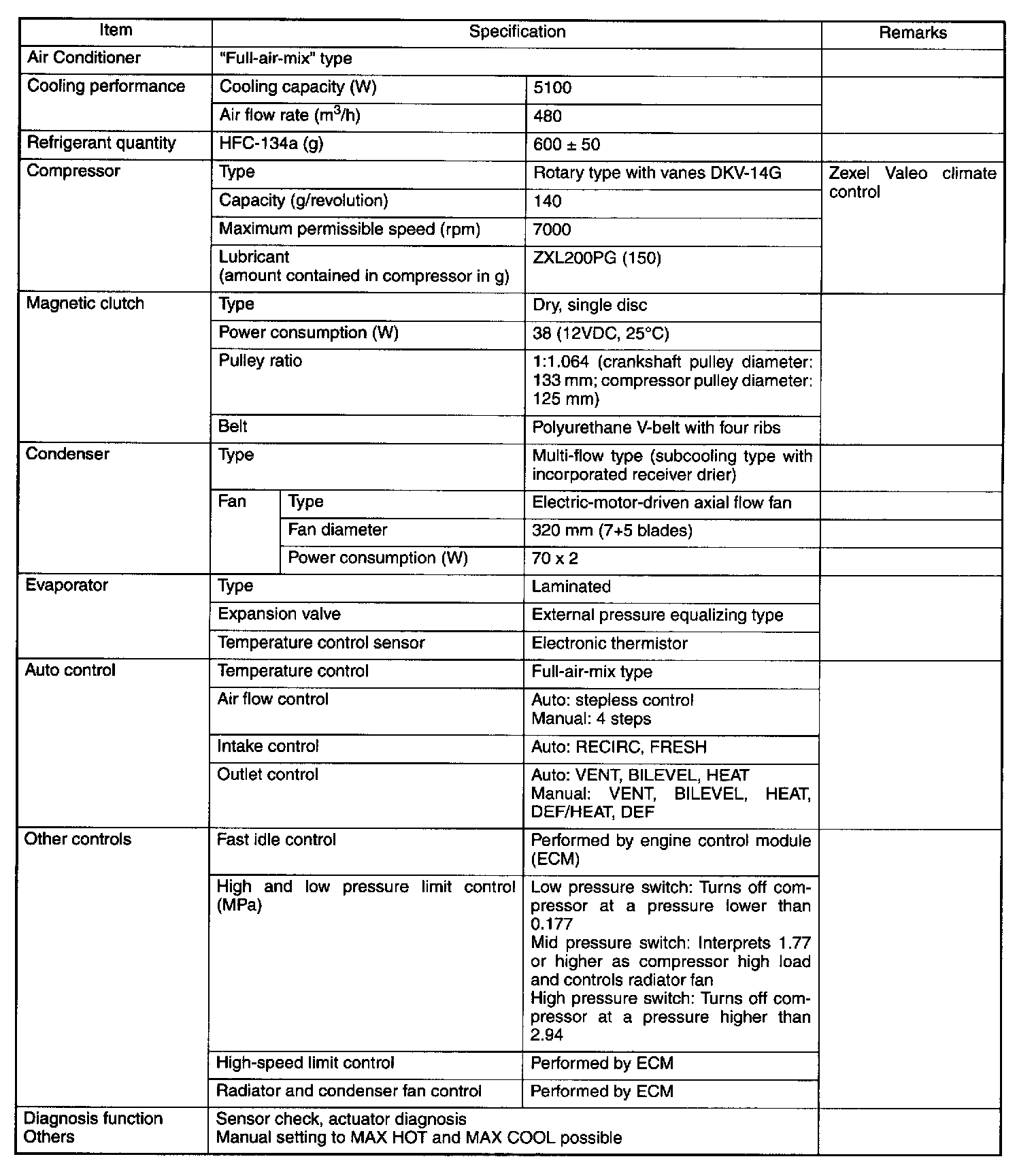

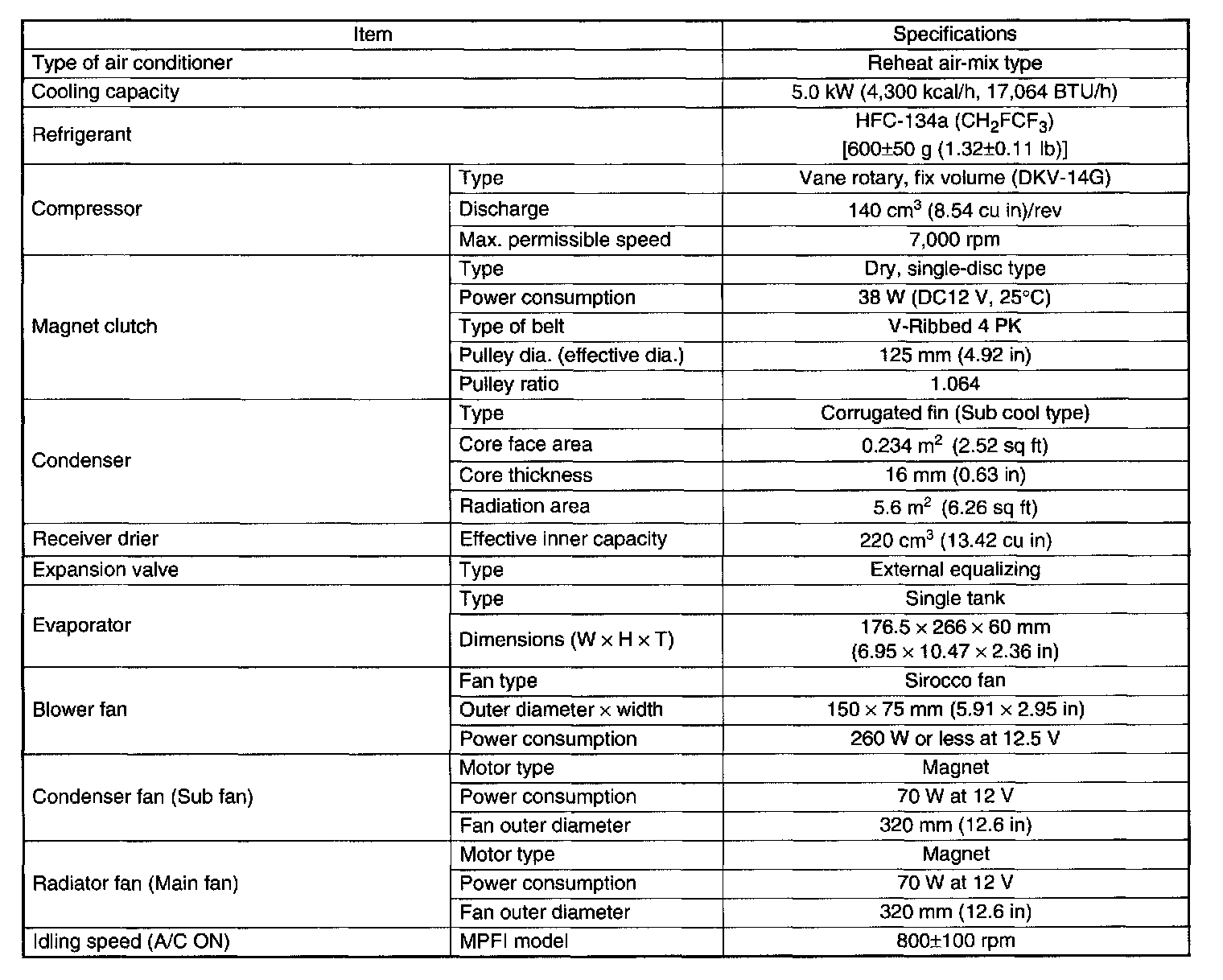

Manual Air Conditioning System:

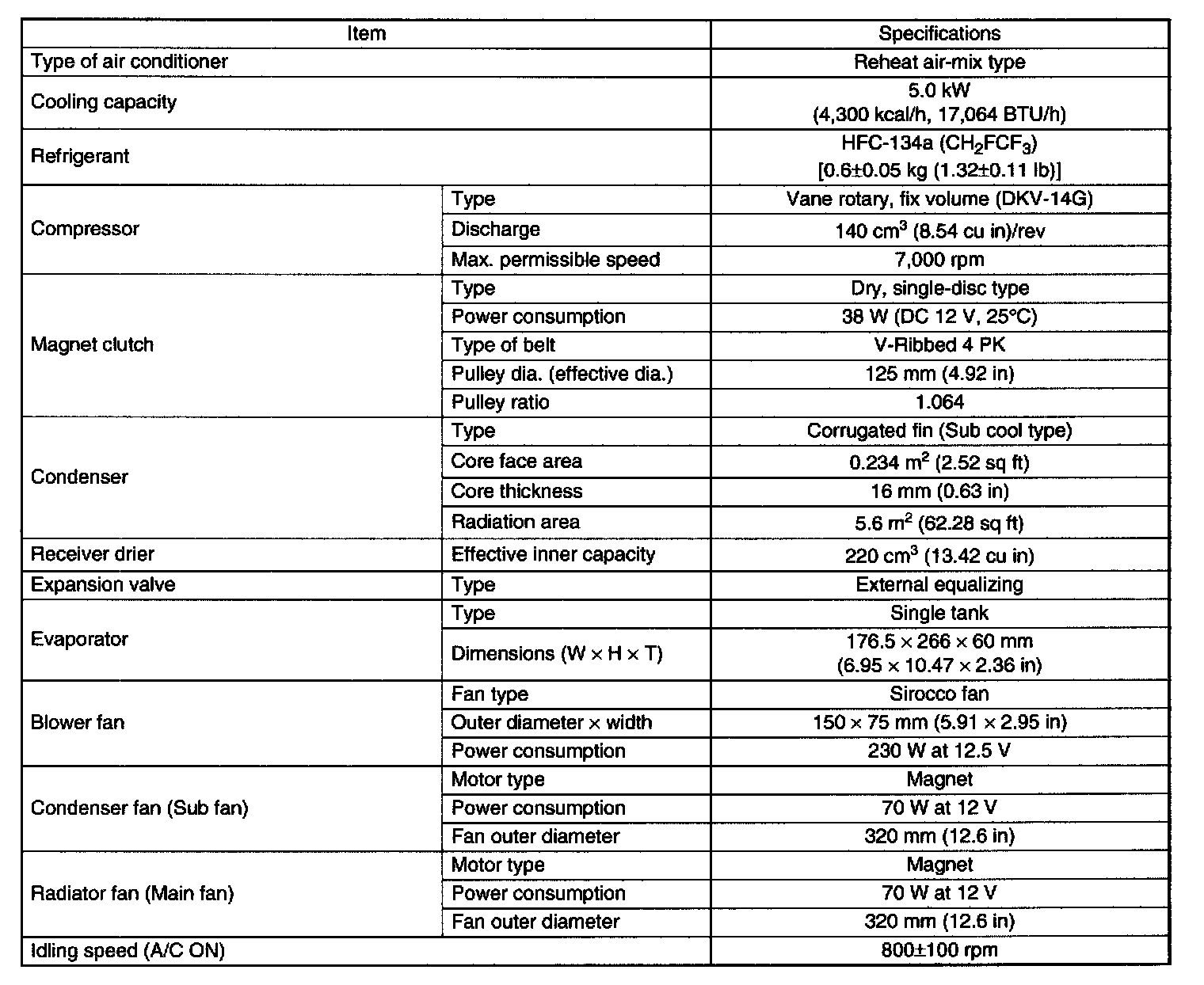

Automatic Air Conditioning System:

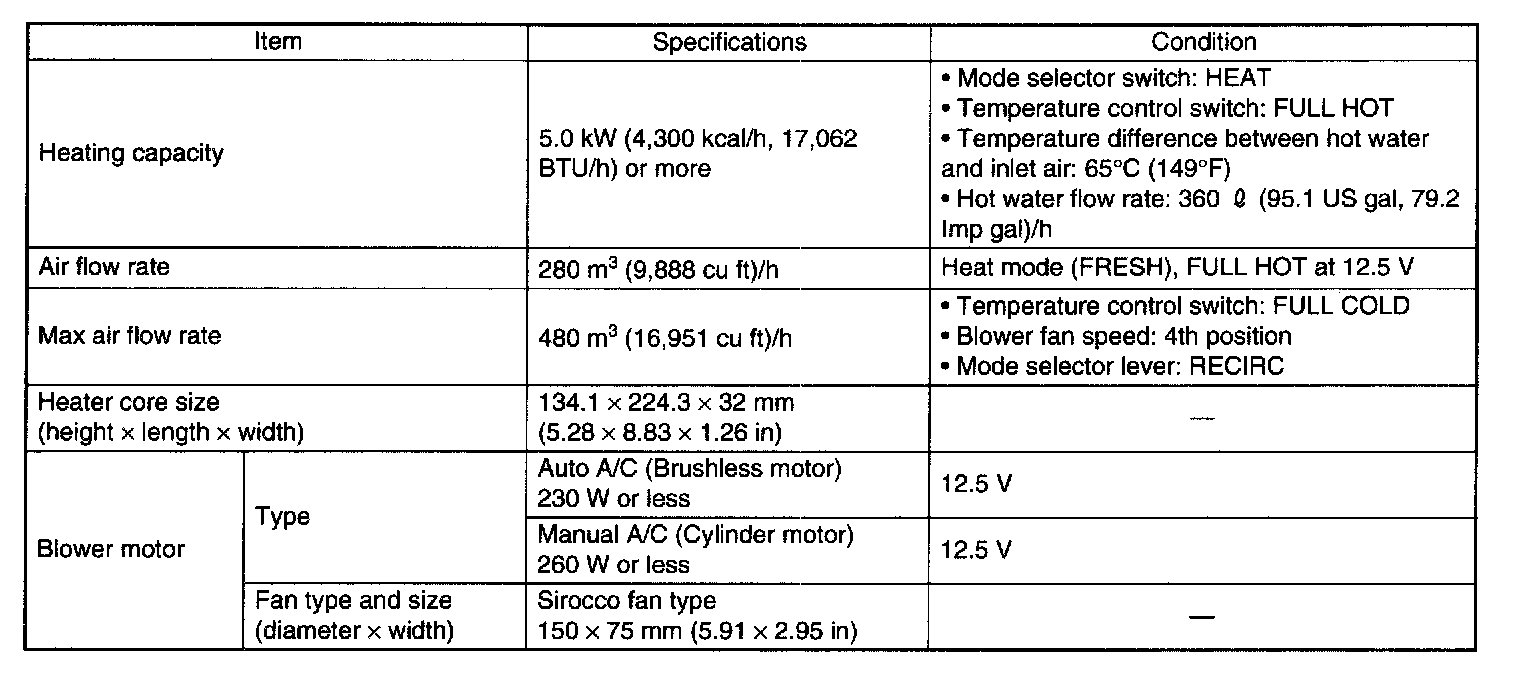

Heater System:

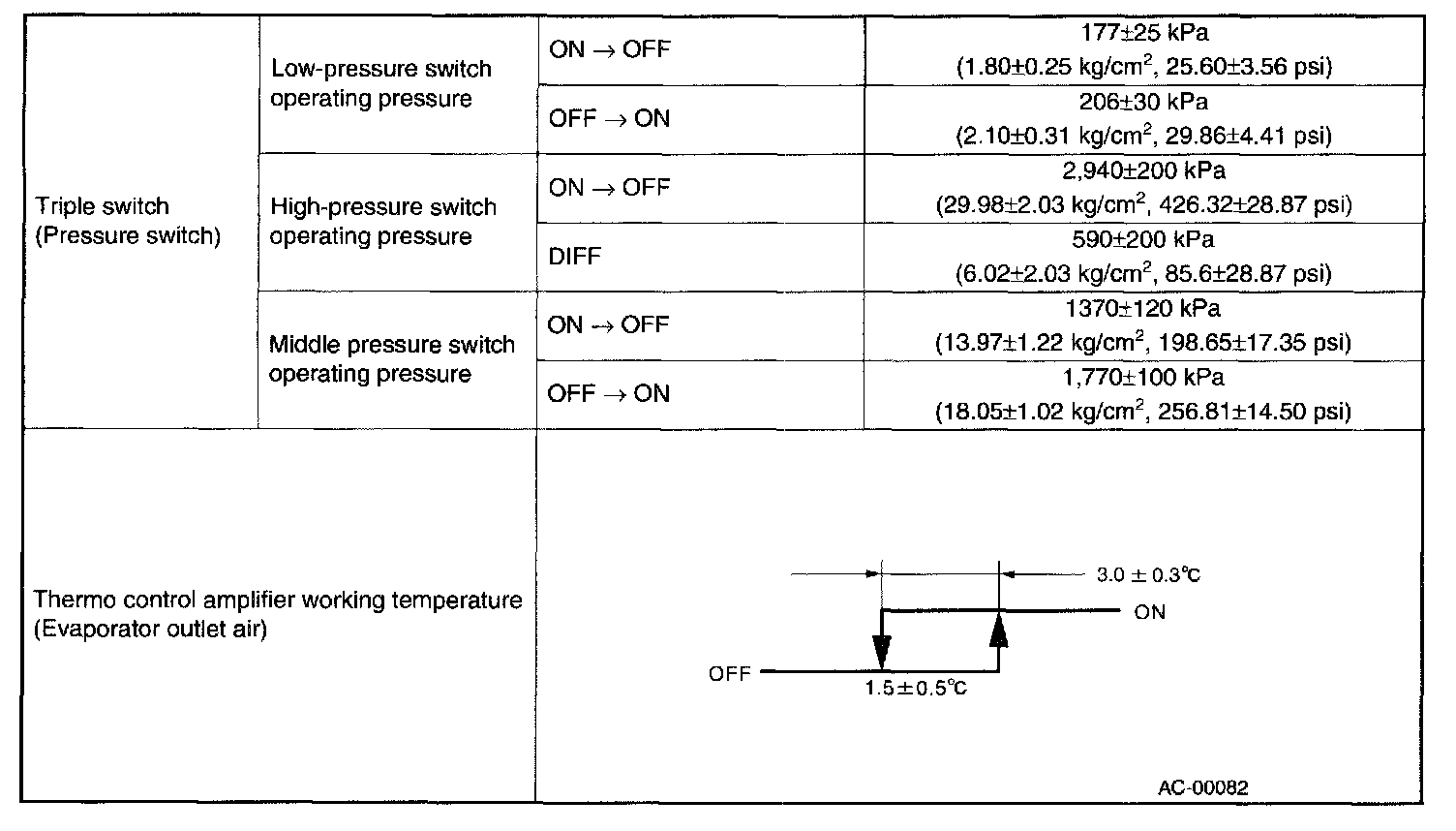

A/C System - Auto A/C Model:




A/C System - Auto A/C Model:

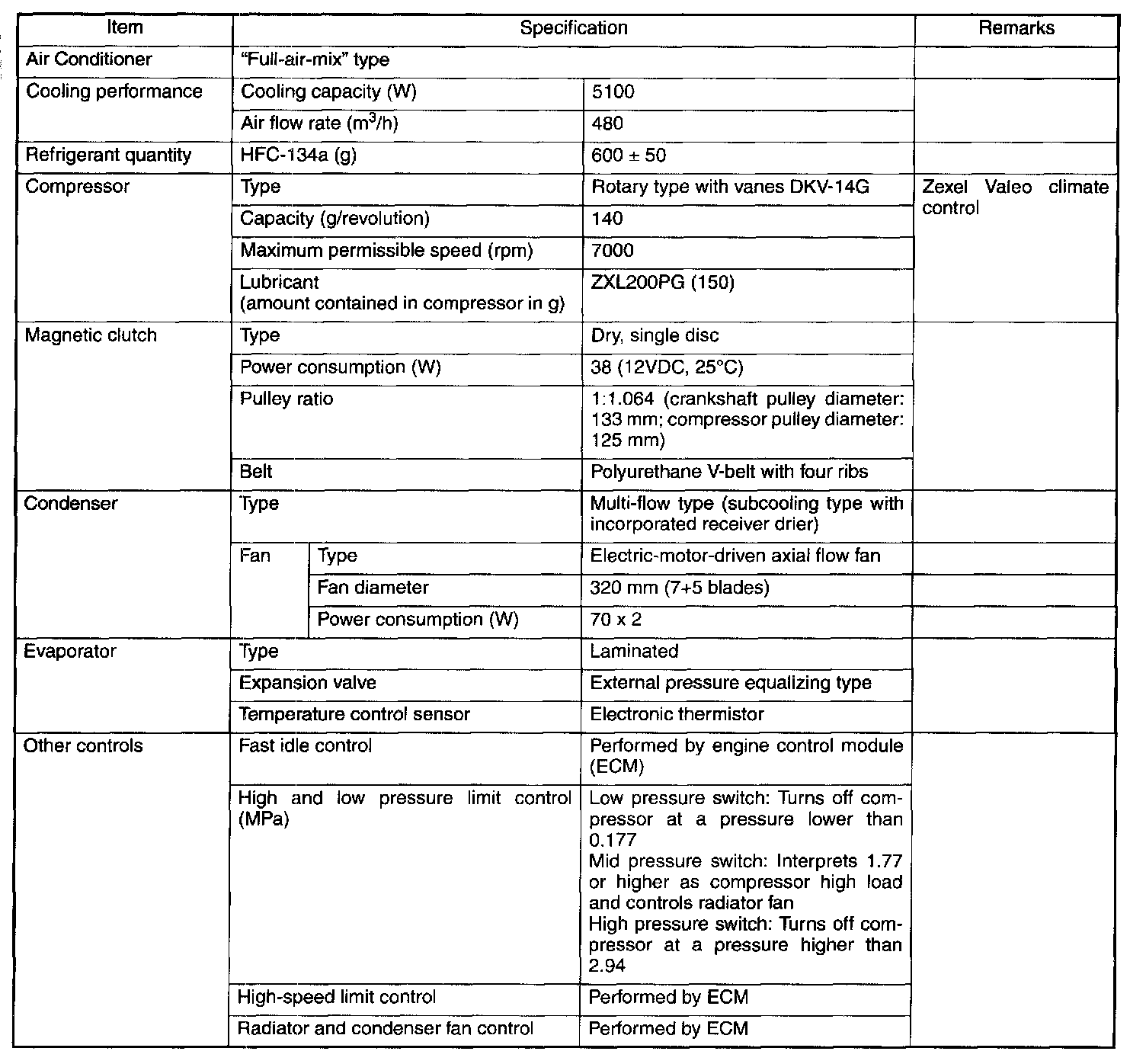

A/C System - Manual A/C Model:

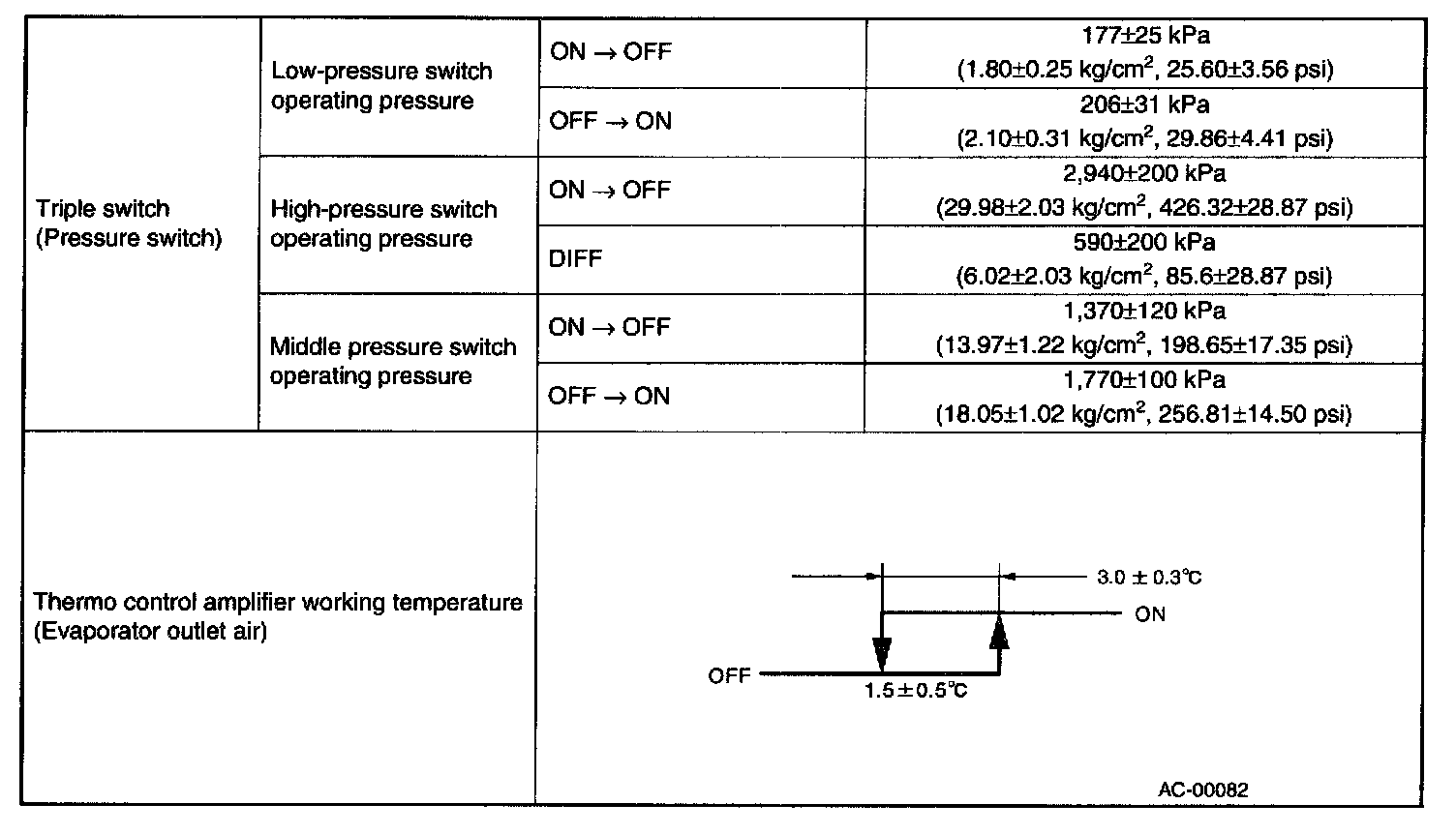

A/C System - Manual A/C Model:
