System Specifications

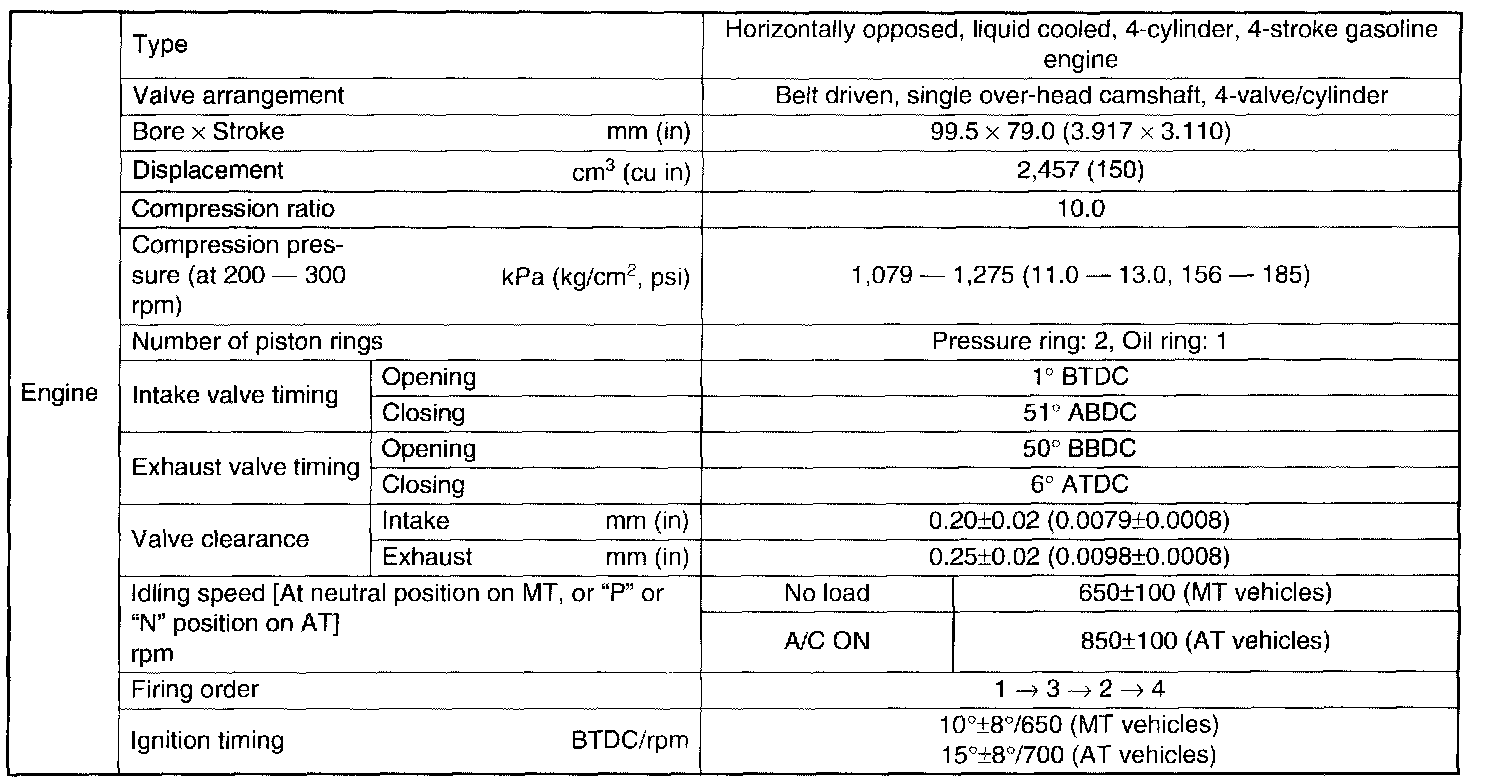

SPECIFICATIONS

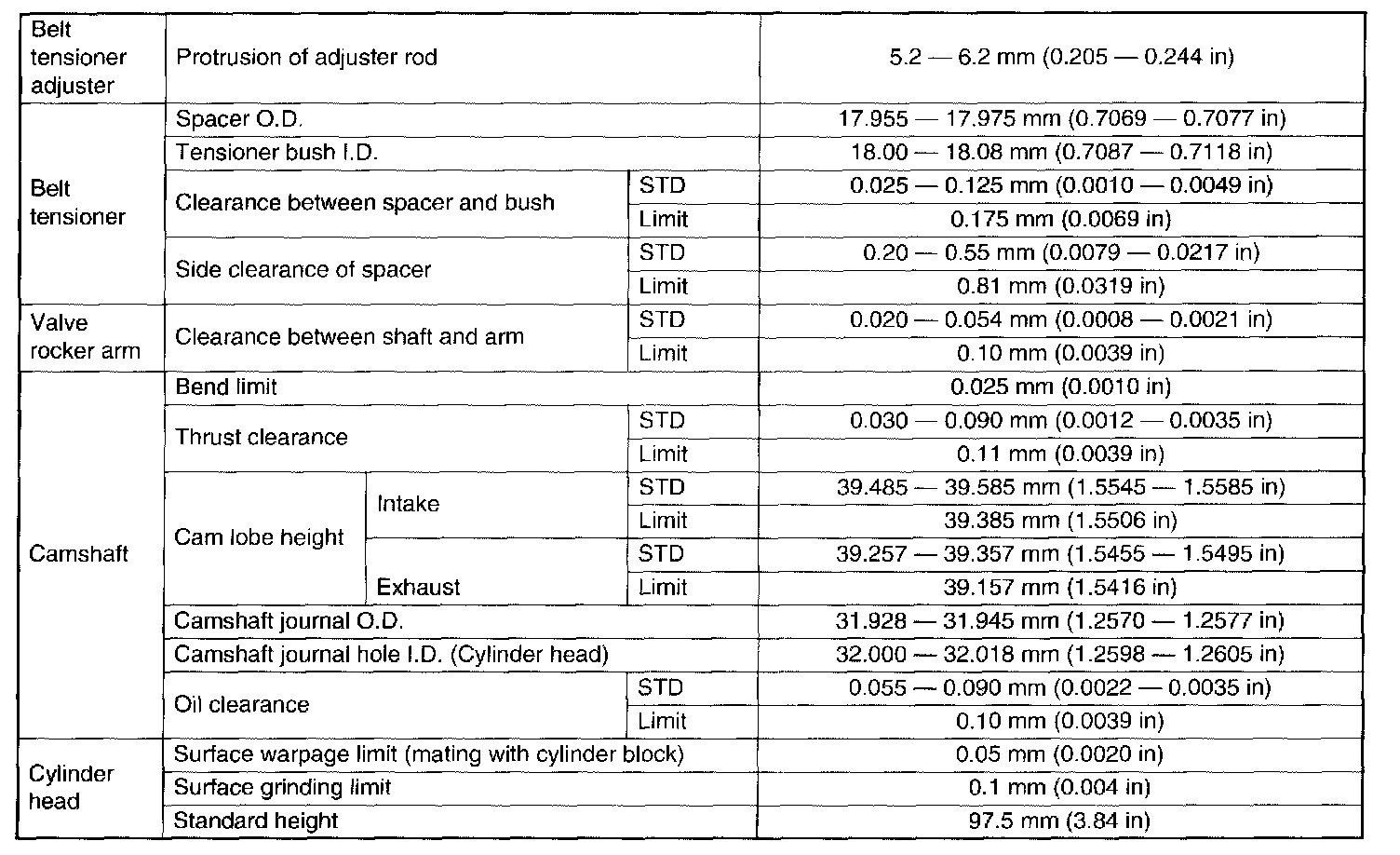

TIMING BELT

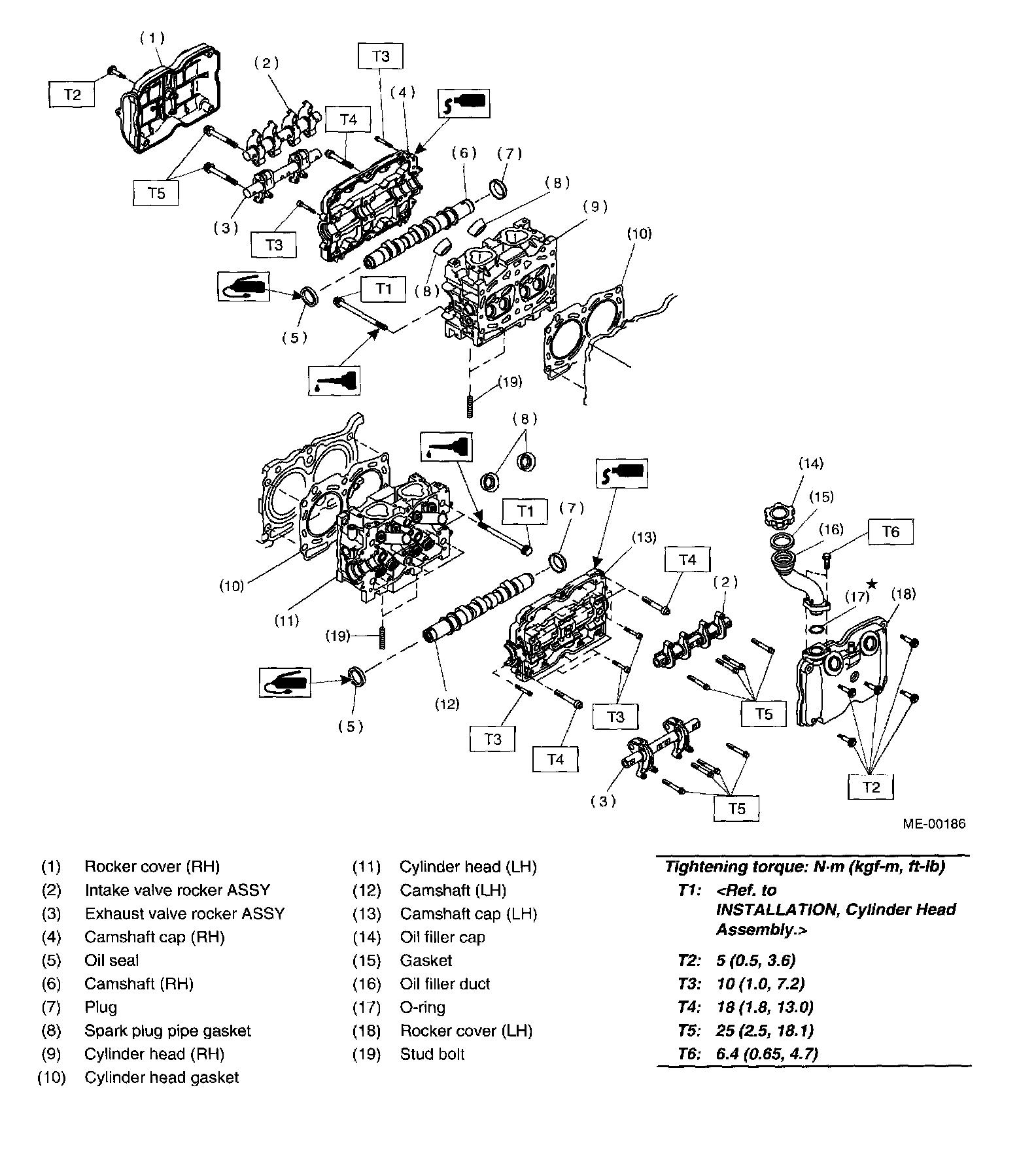

CYLINDER HEAD AND CAMSHAFT

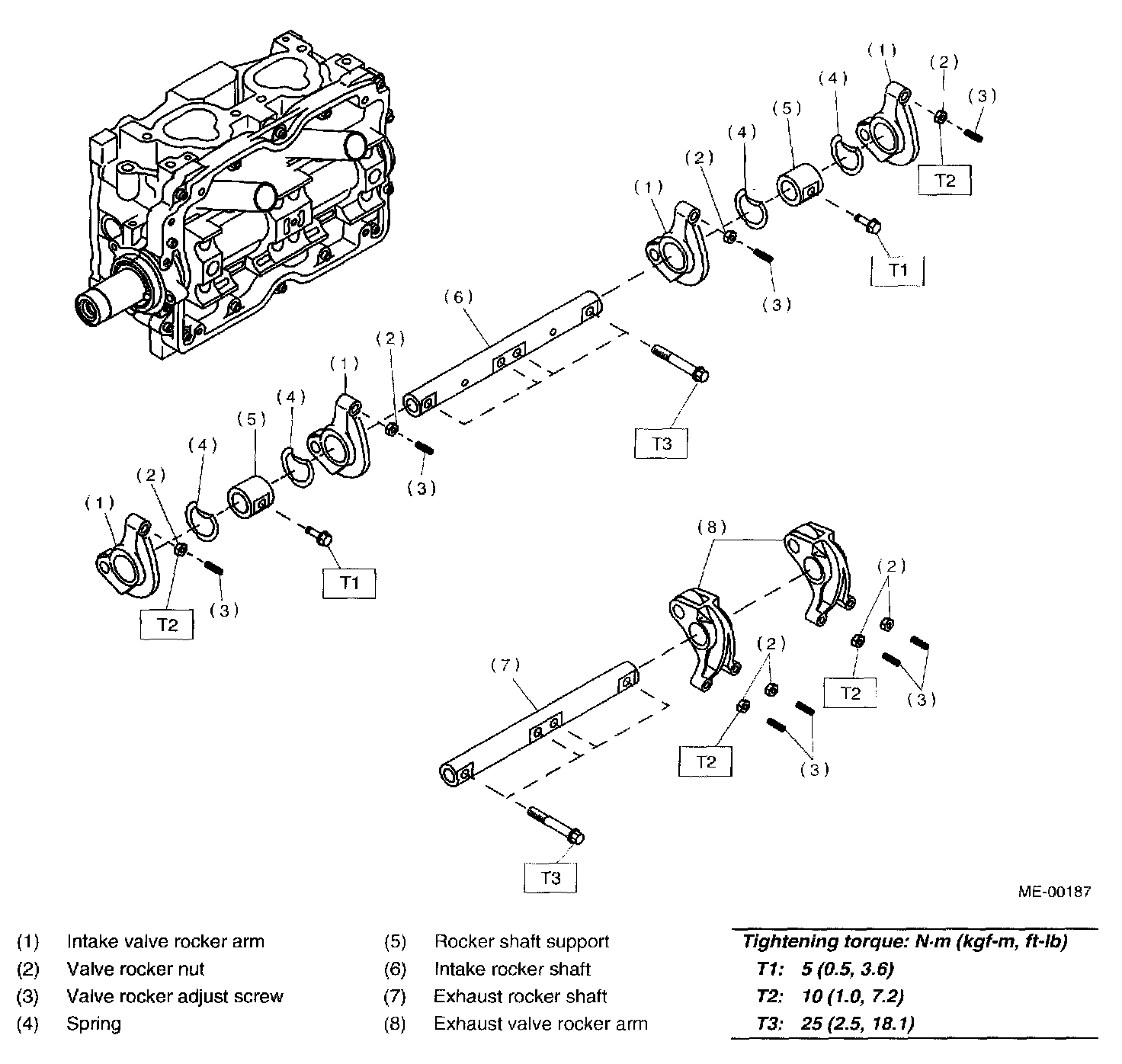

VALVE ROCKER ASSEMBLY

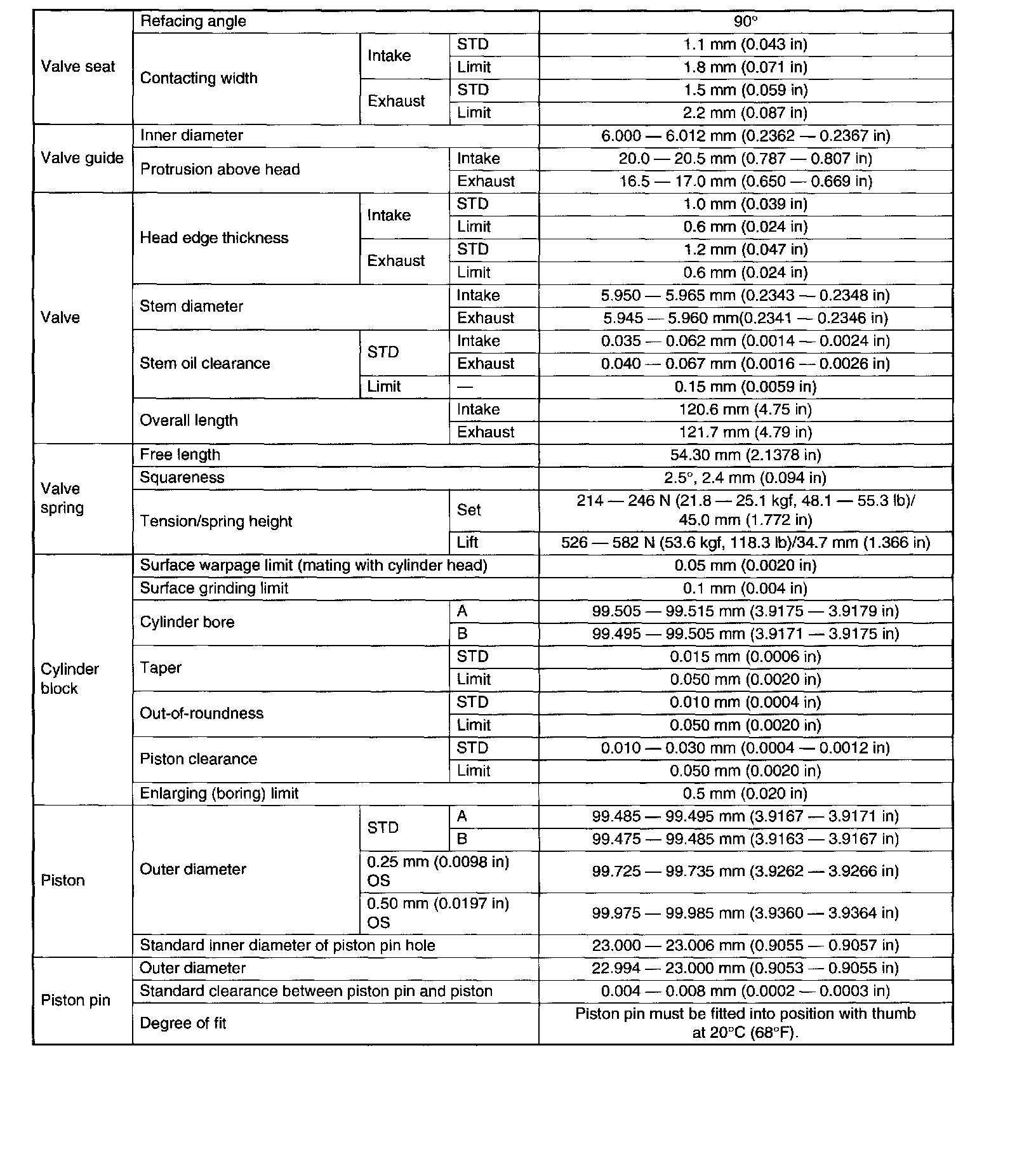

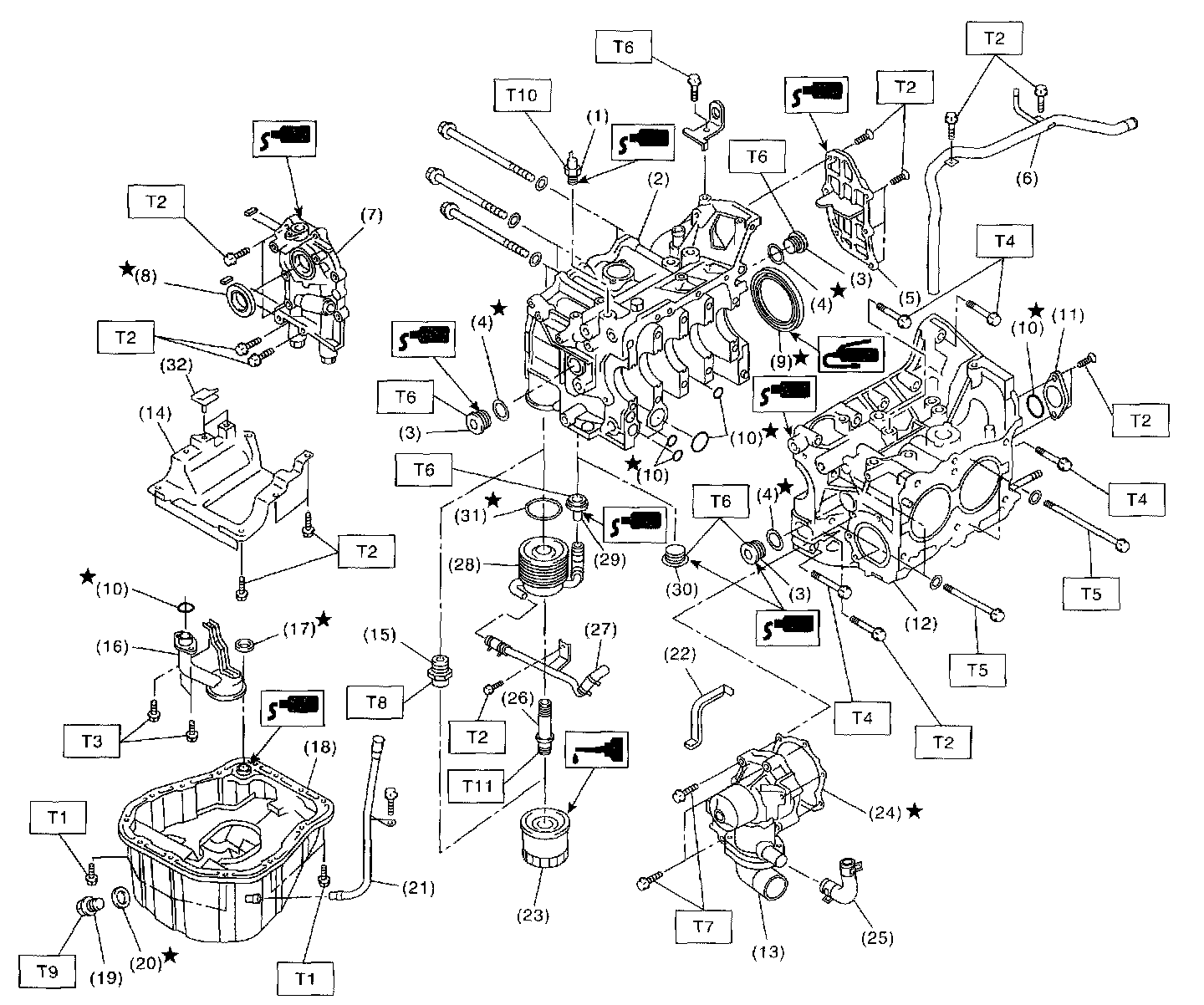

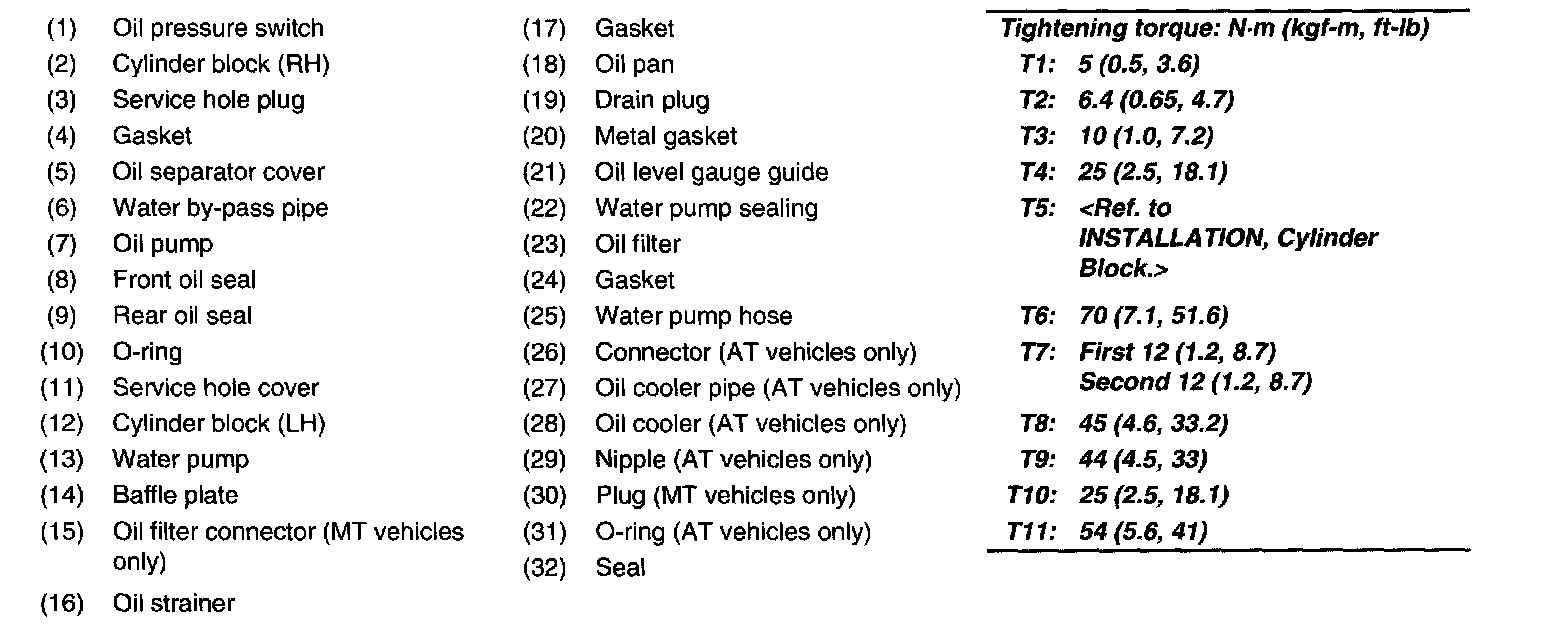

CYLINDER BLOCK

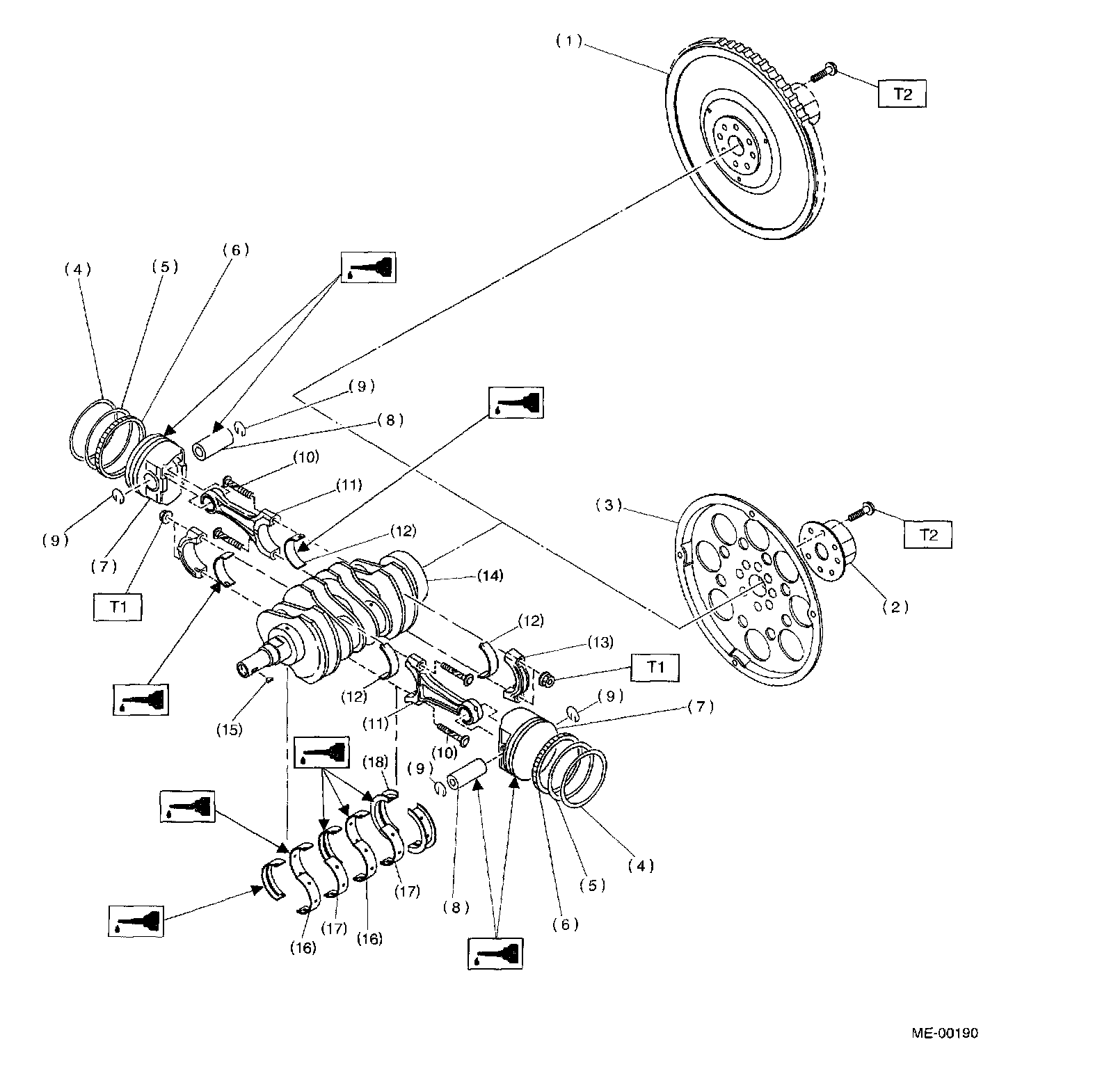

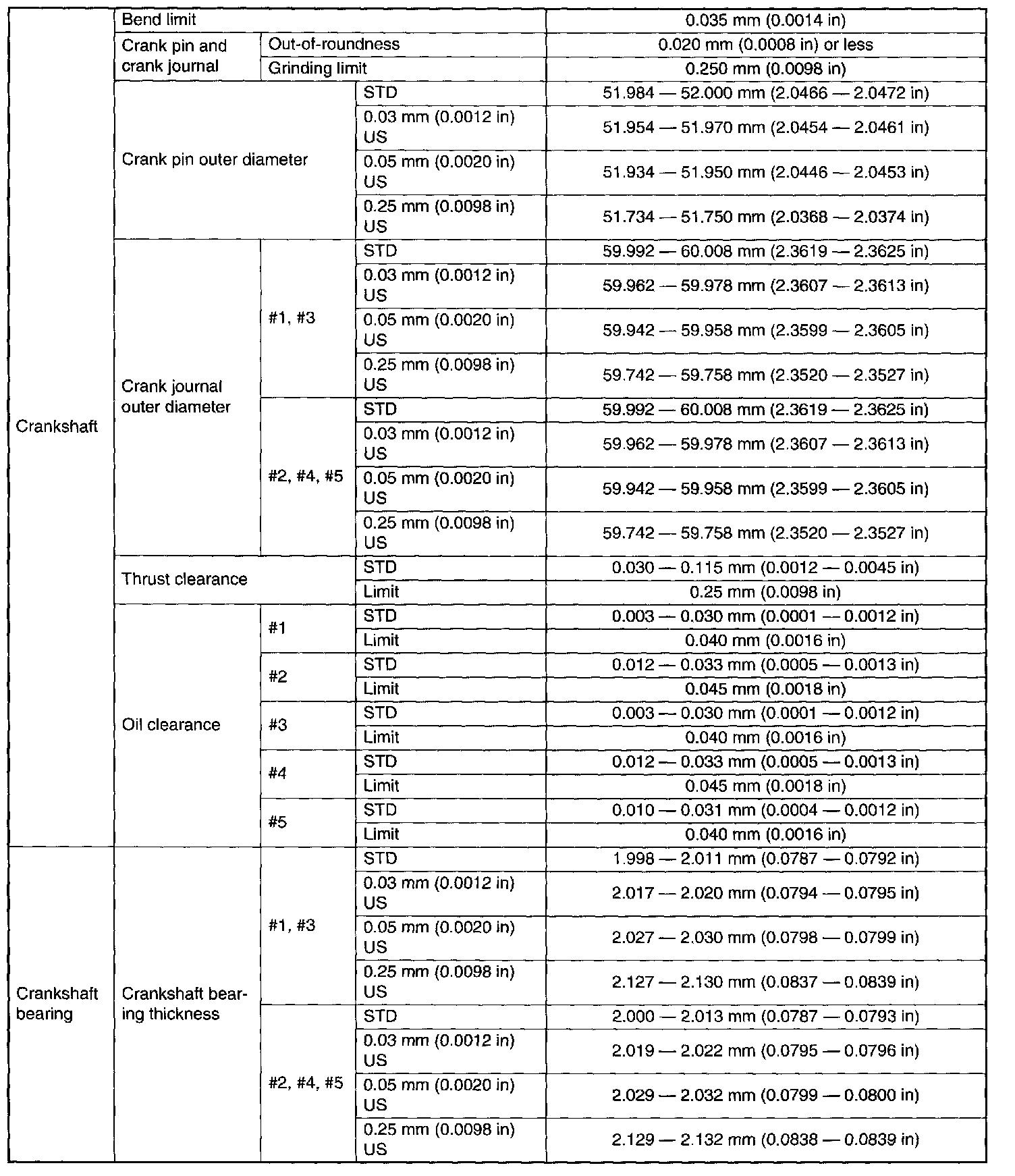

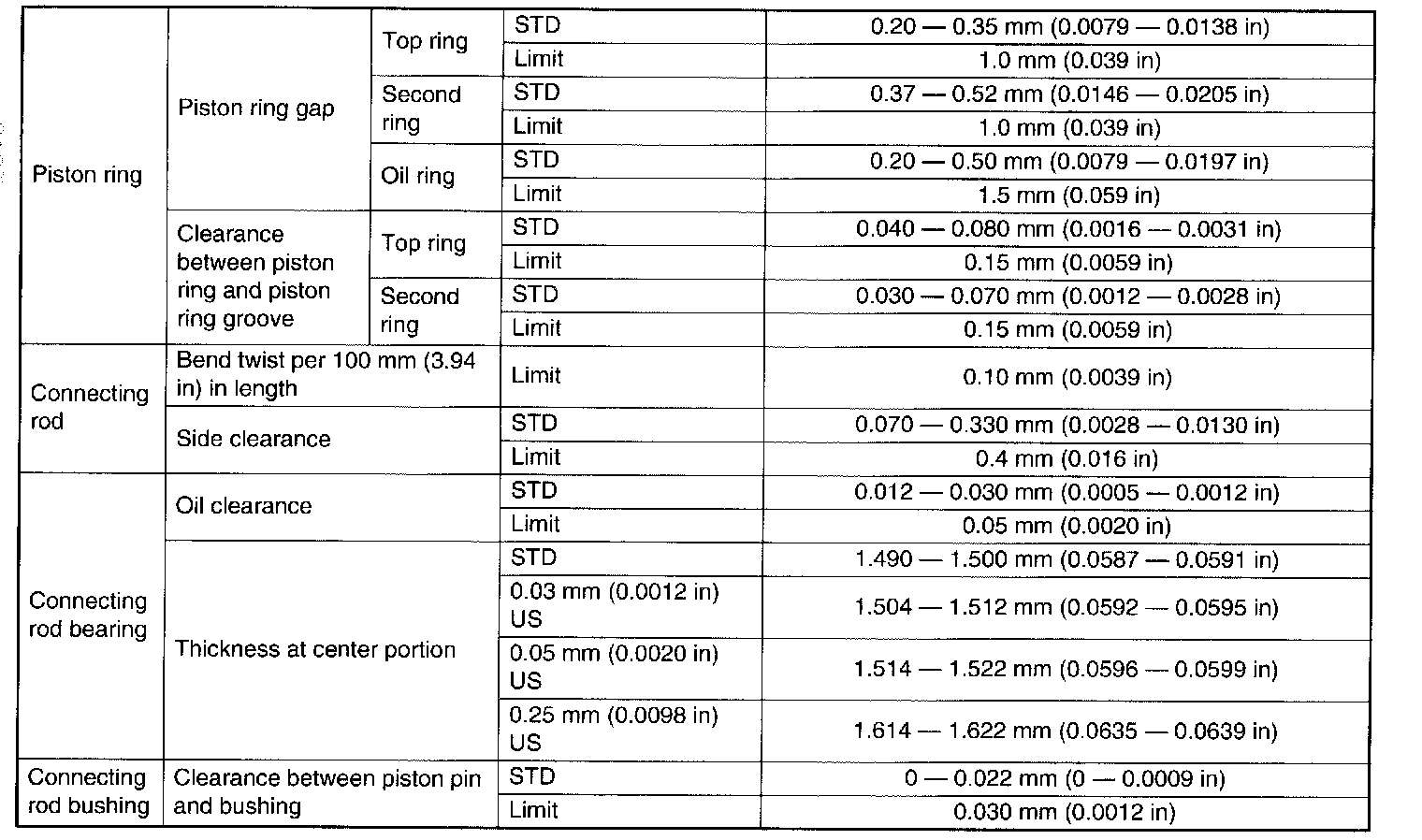

CRANKSHAFT AND PISTON

NOTE: STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize
