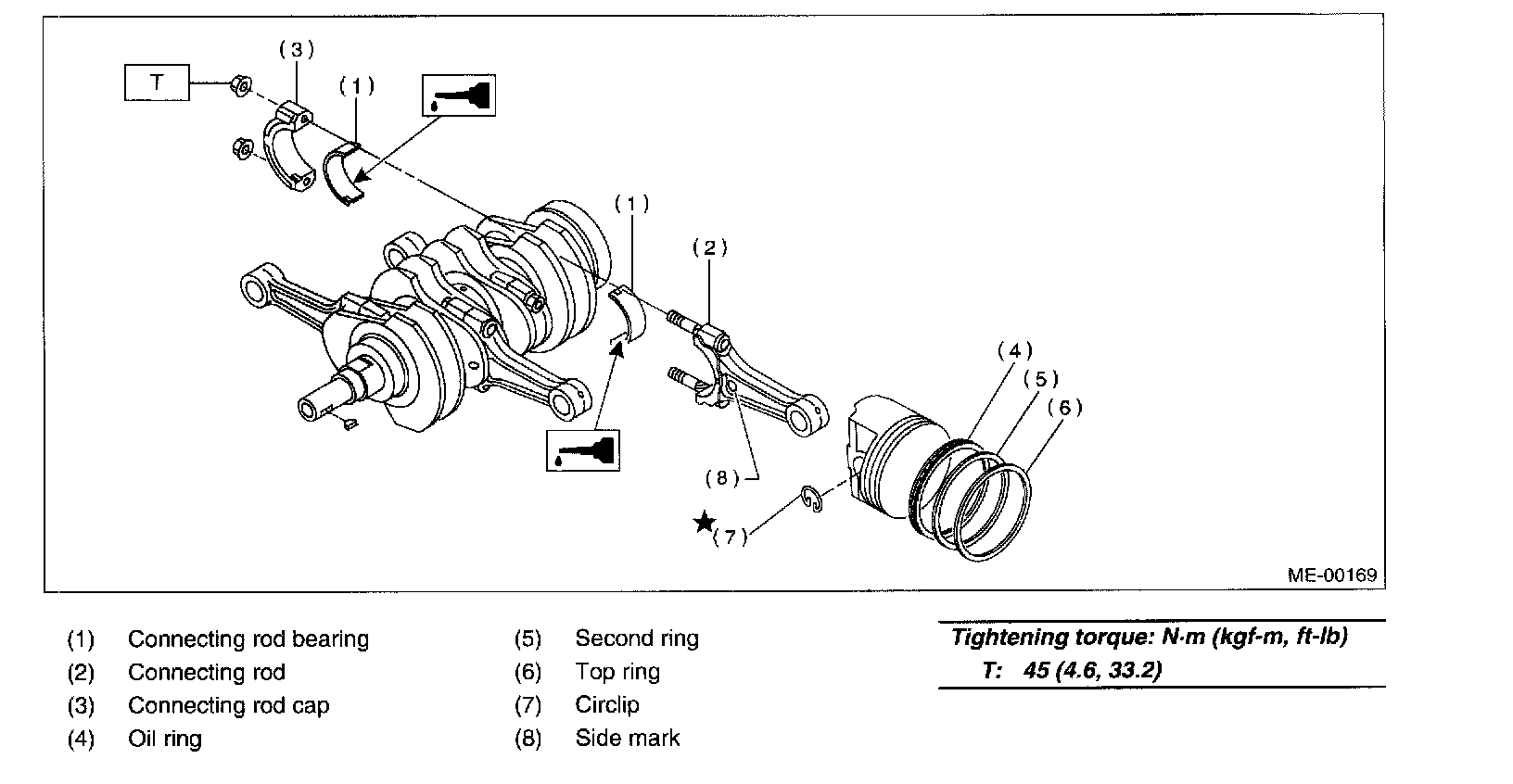

Connecting Rod, Engine

Connecting rod
Bend twist per 100 mm (3.94 in) in length - limit 0.10 mm (0.0039 in.)
Side clearance
STD 0.070 - 0.330 mm (0.0028 - 0.0130 in)
Limit 0.4 mm (0.016 in.)
