Exploded Views

COMPONENT

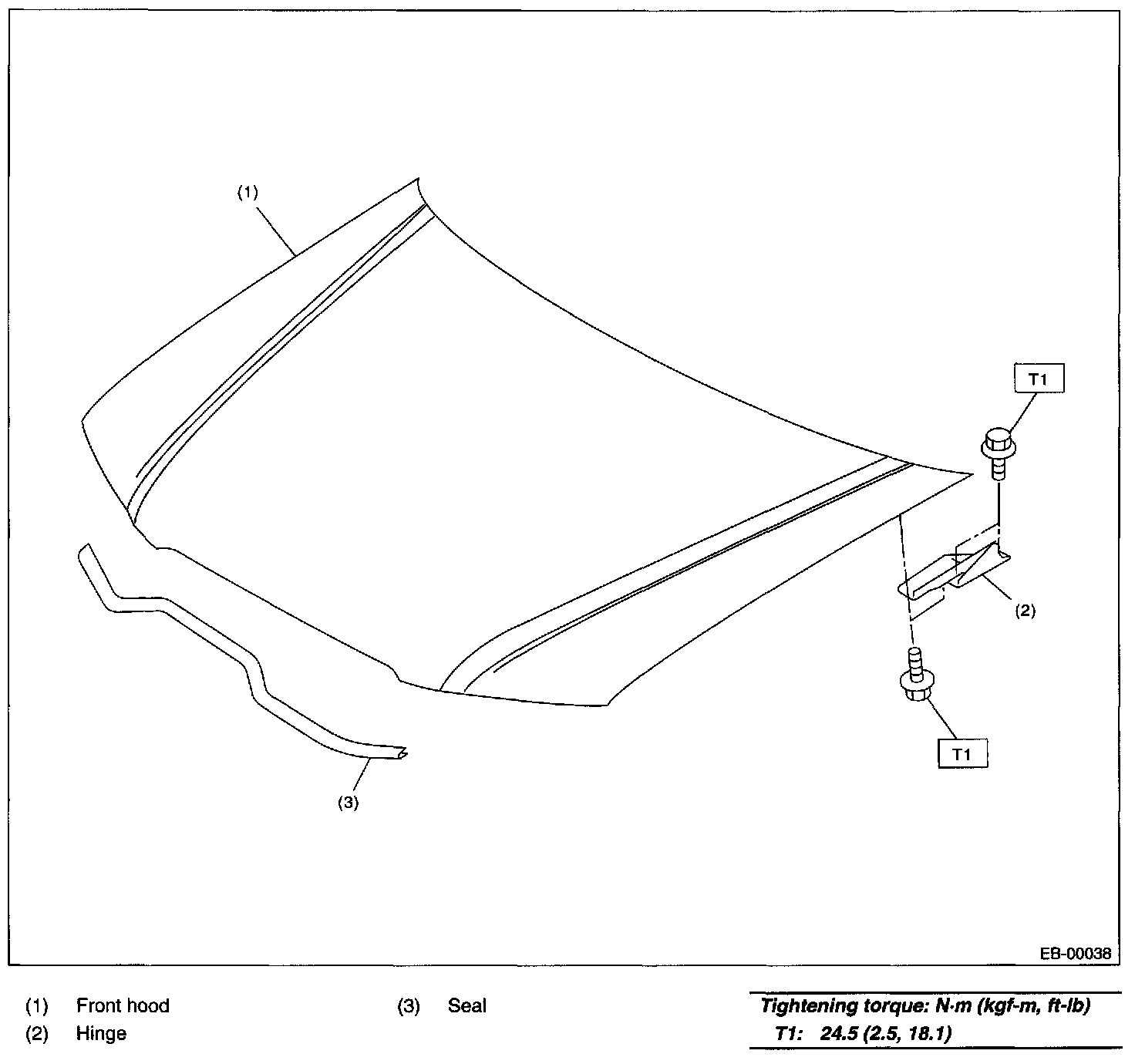

1. FRONT HOOD

Front Hood:






2. FRONT FENDER PANEL

Front Fender Panel:

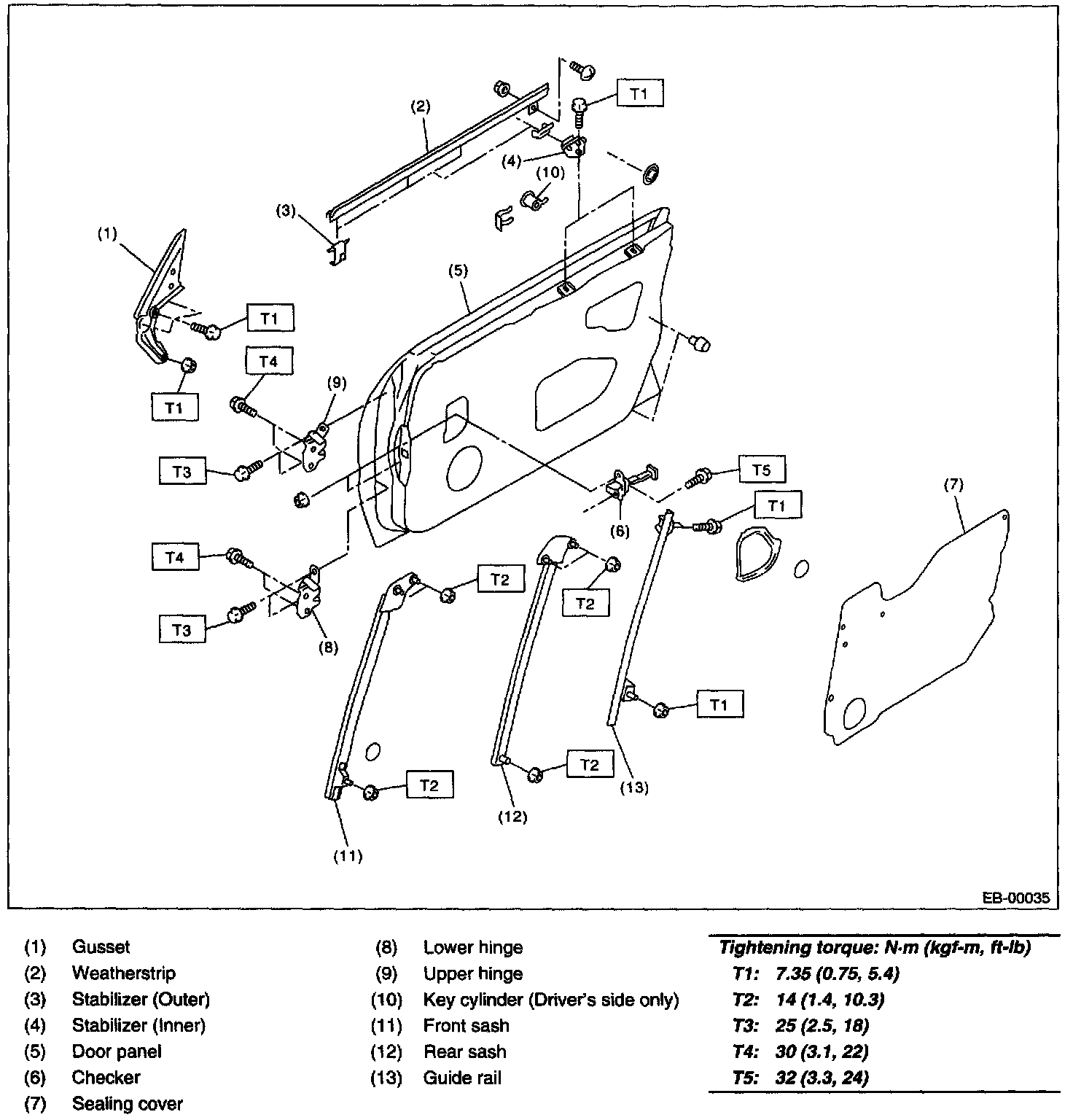

3. FRONT DOOR PANEL

Front Door Panel:

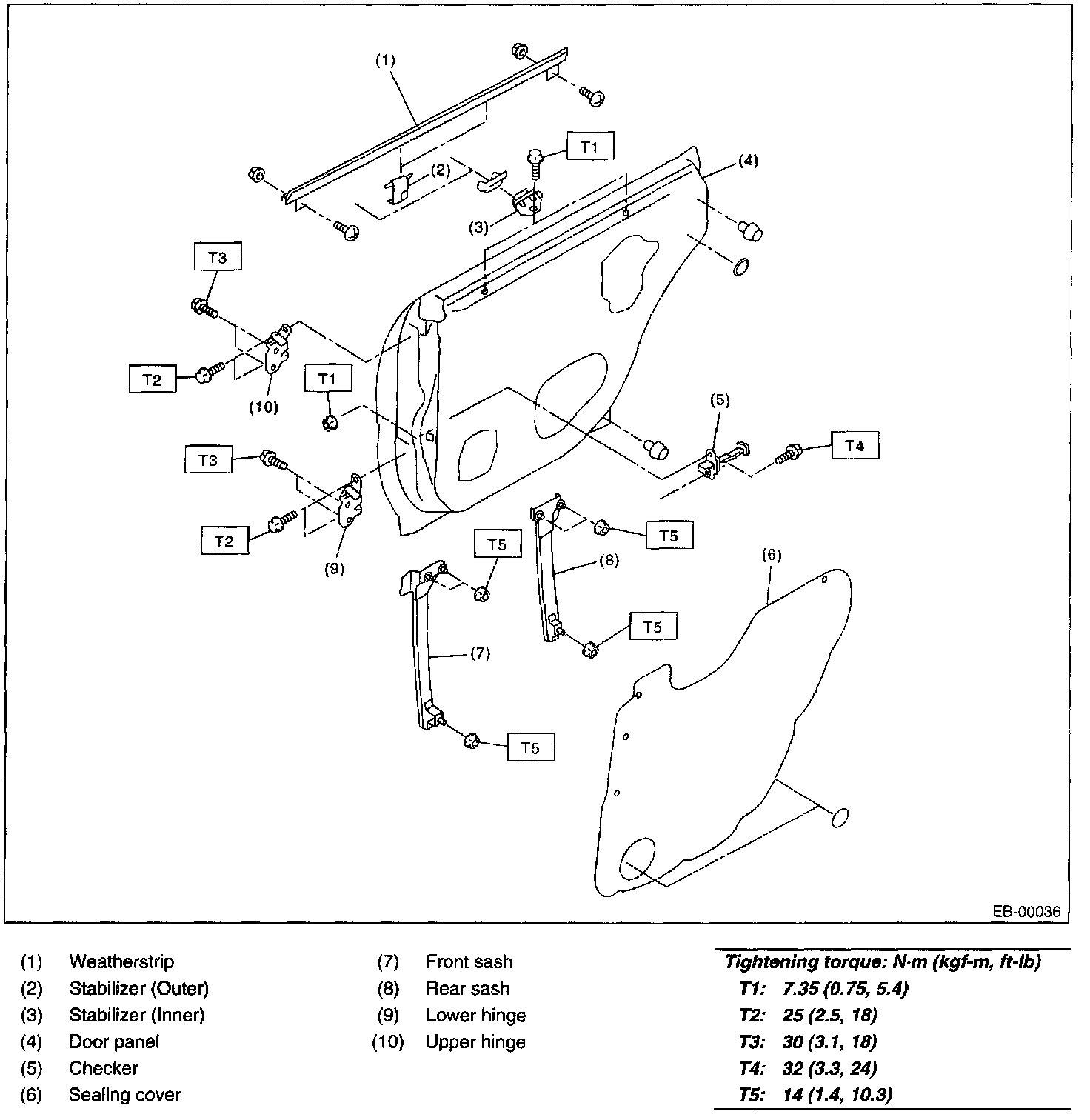

4. REAR DOOR PANEL

Rear Door Panel:

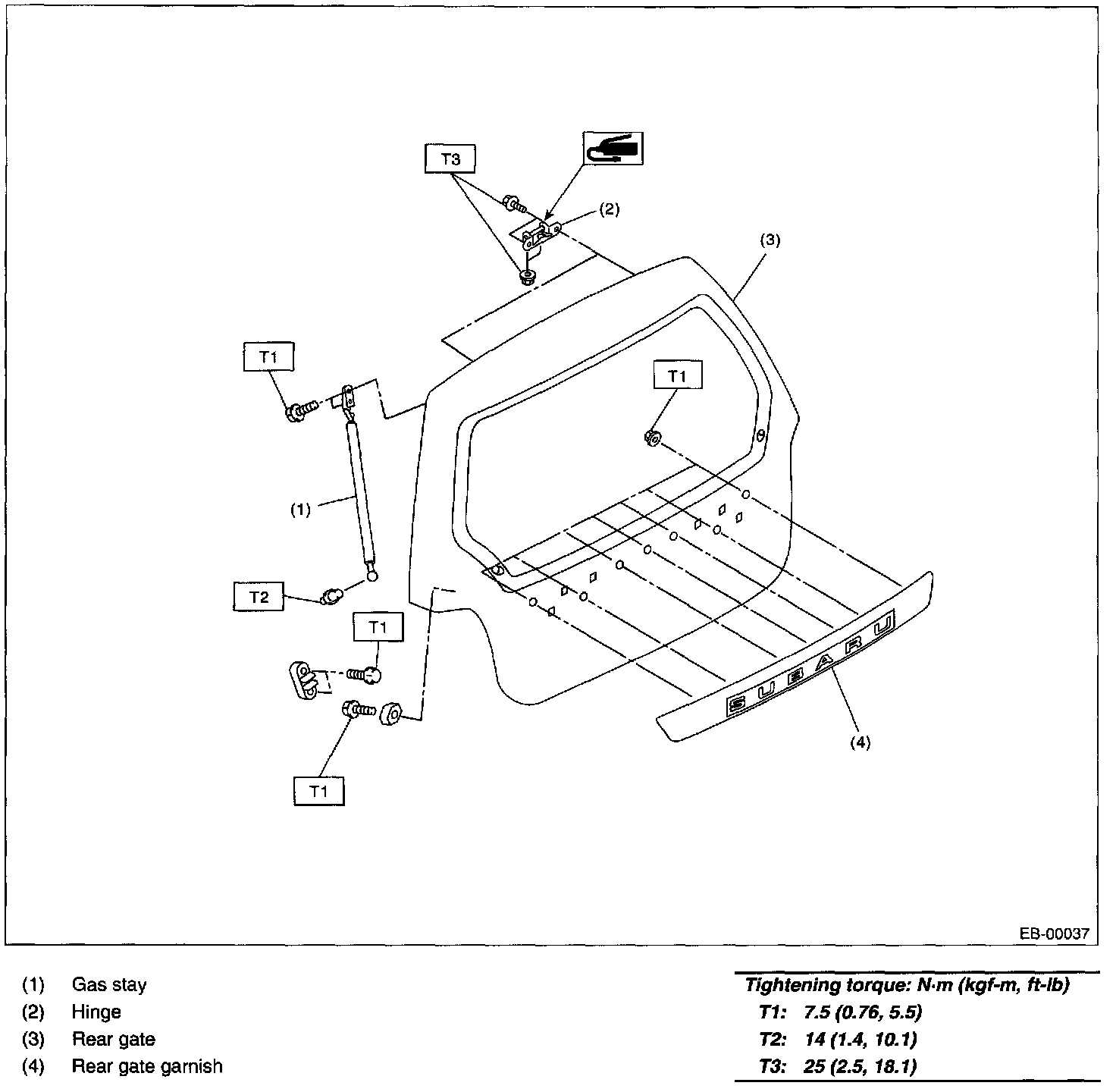

5. REAR GATE PANEL

Rear Gate Panel:
