Oil Pump

WARNING: This page is about a different variant/trim than selected.

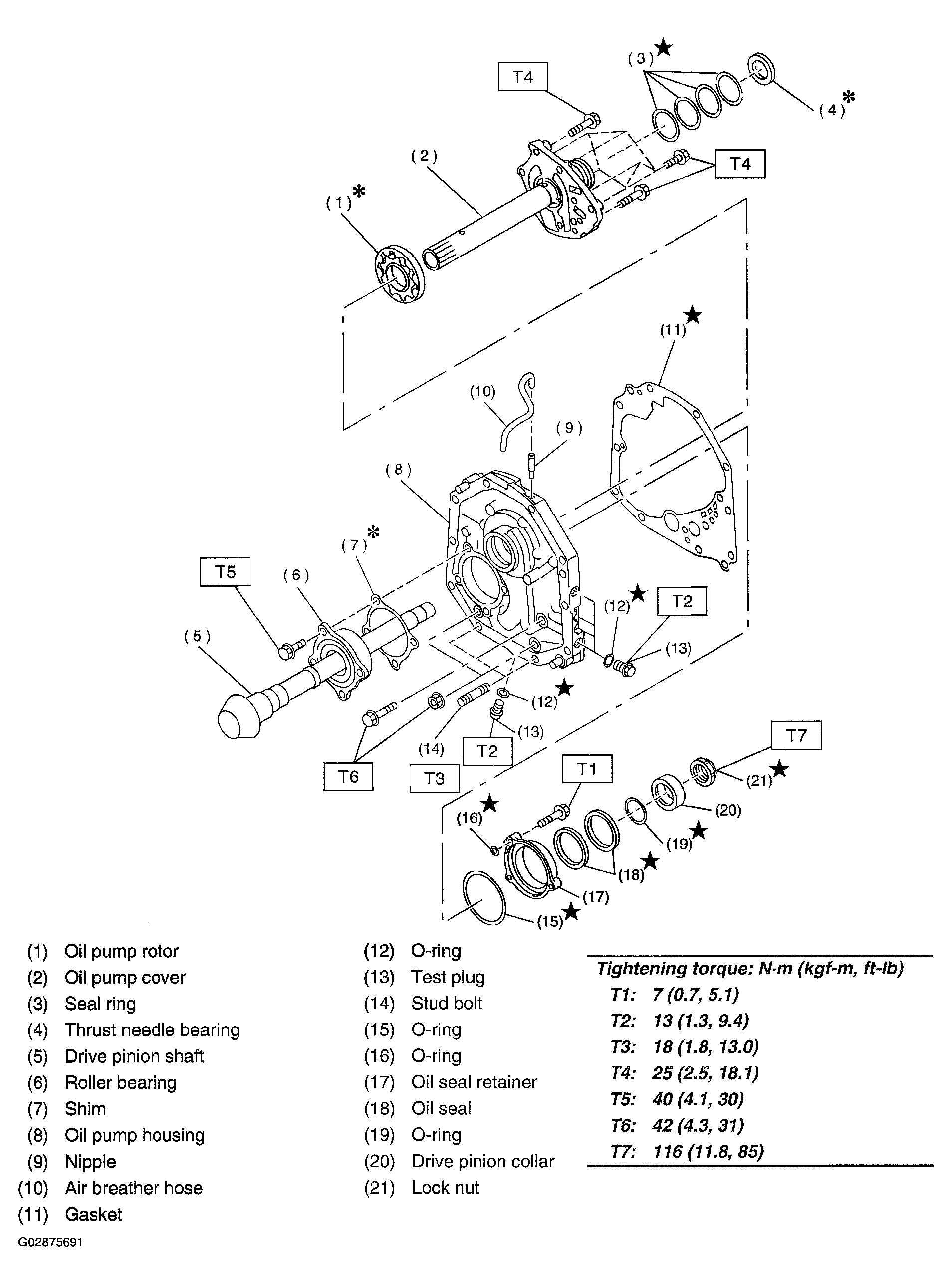

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G02875691Courtesy of SUBARU OF AMERICA, INC.
