Gear Shift Lever

The manual transmission's gear shift lever system is a parallel link type whose stay is mounted through a cushion rubber.

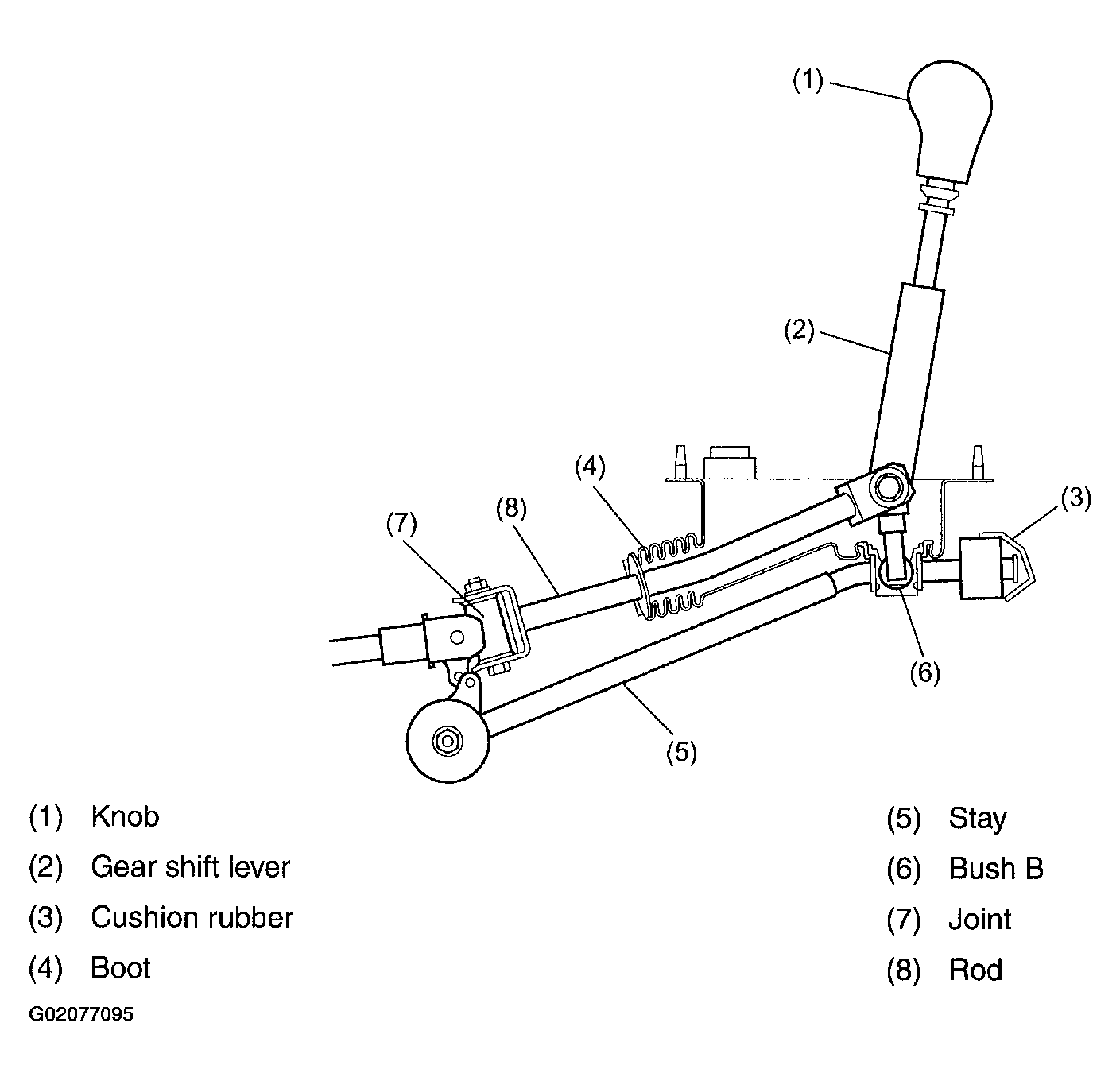

Fig 1: Identifying Manual Transmission Gear Shift Lever System
G02077095Courtesy of SUBARU OF AMERICA, INC.
