Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.

Wiring Diagram:

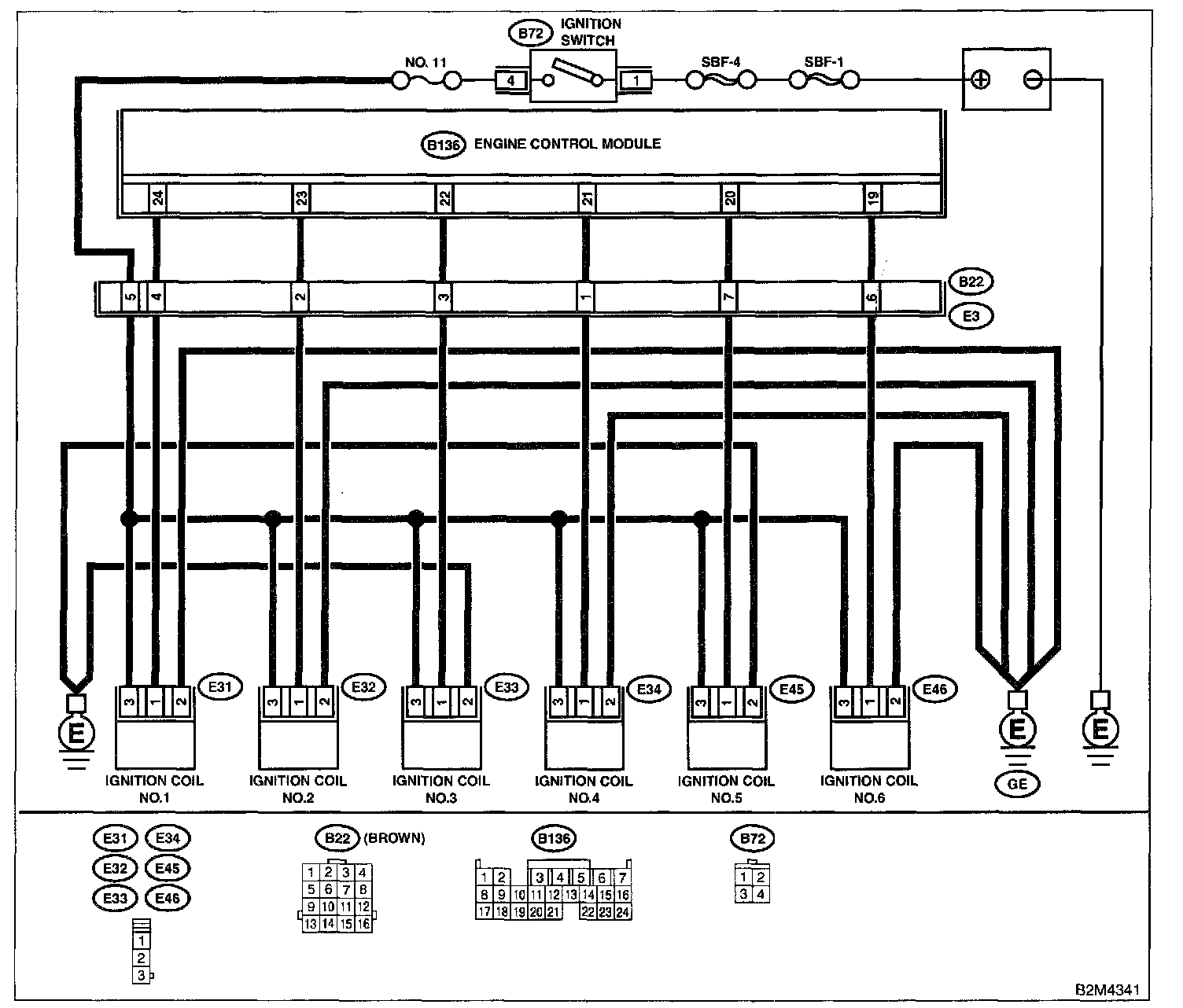

WIRING DIAGRAM

Step 1:

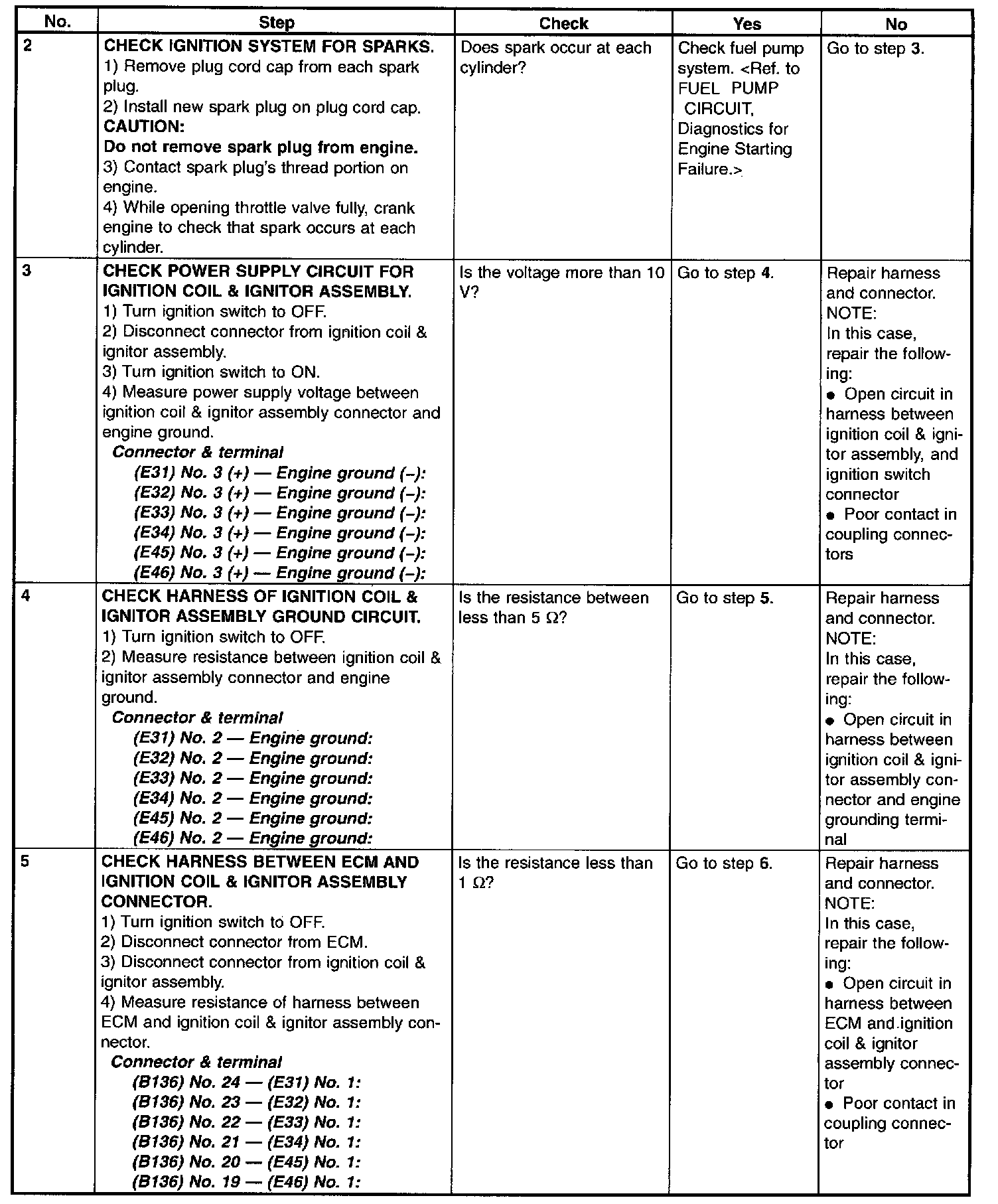

Step 2 - 5:

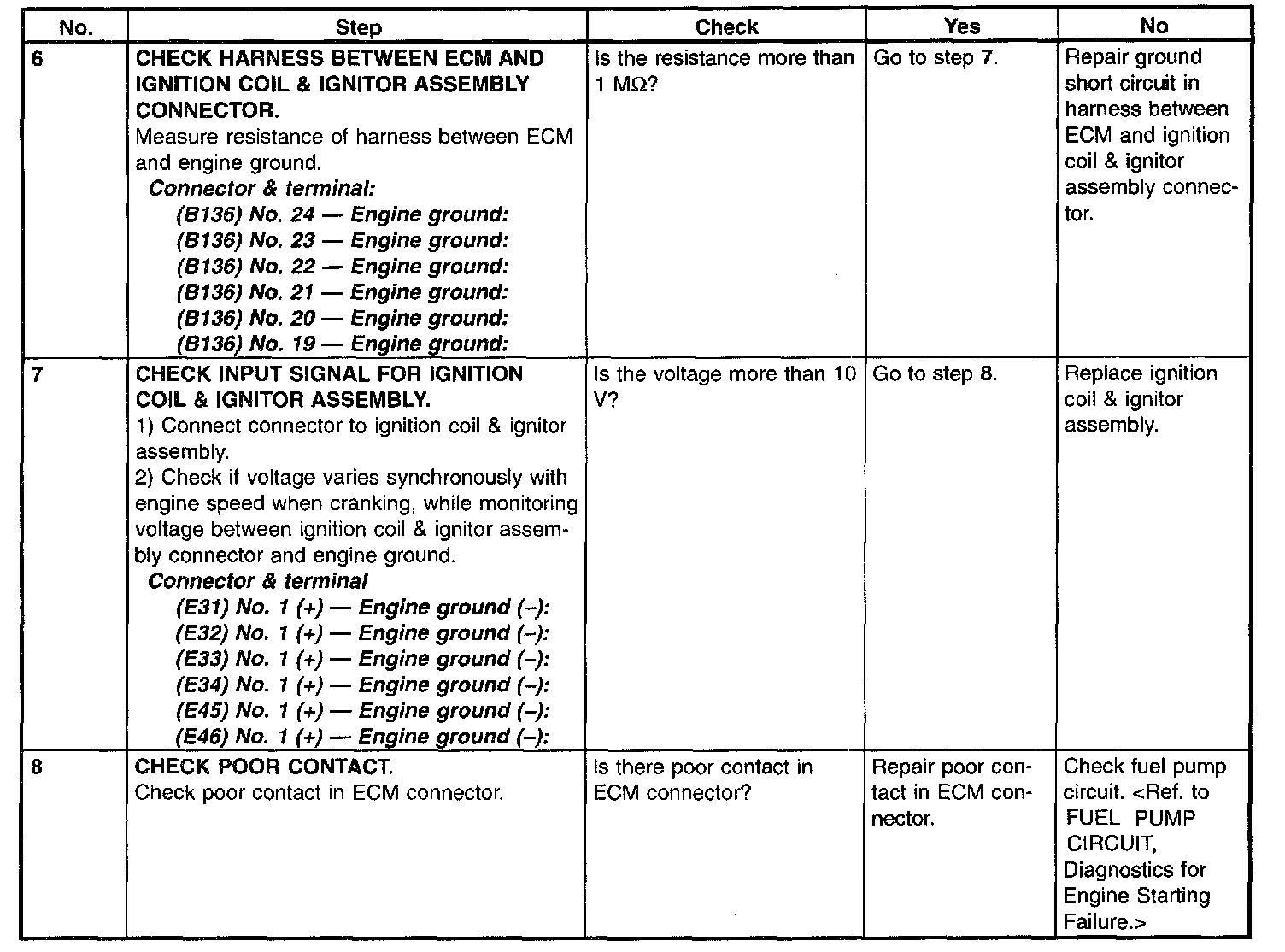

Step 6 - 8:
