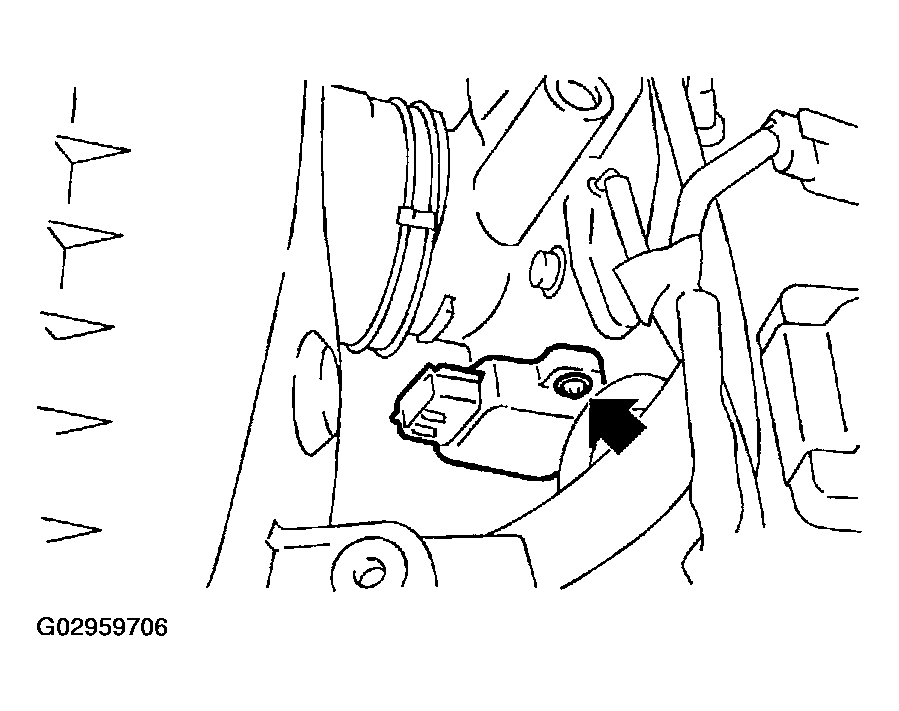

Throttle Position Sensor: Installation
Install in the reverse order of removal.
- Tightening torque:
1.6 N.m (0.16 kgf-m, 1.2 ft-lb)
CAUTION:
When installing throttle position sensor, adjust to the specified data.
Courtesy of SUBARU OF AMERICA, INC.
