Wiper Control Relay: Removal

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery. Remove the right quarter lower trim. See REAR QUARTER TRIM .
  2. Loosen the nut to remove control unit.

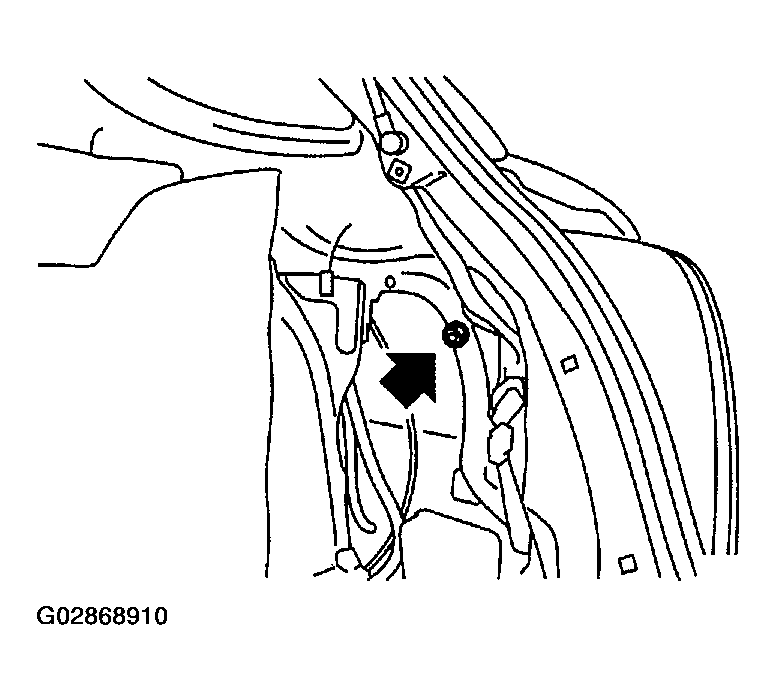

    Fig 1: Loosening The Nut To Remove Control Unit
    G02868910Courtesy of SUBARU OF AMERICA, INC.
