Fuel Injection (Fuel Systems) -- (SOHC): General Description: Specifications

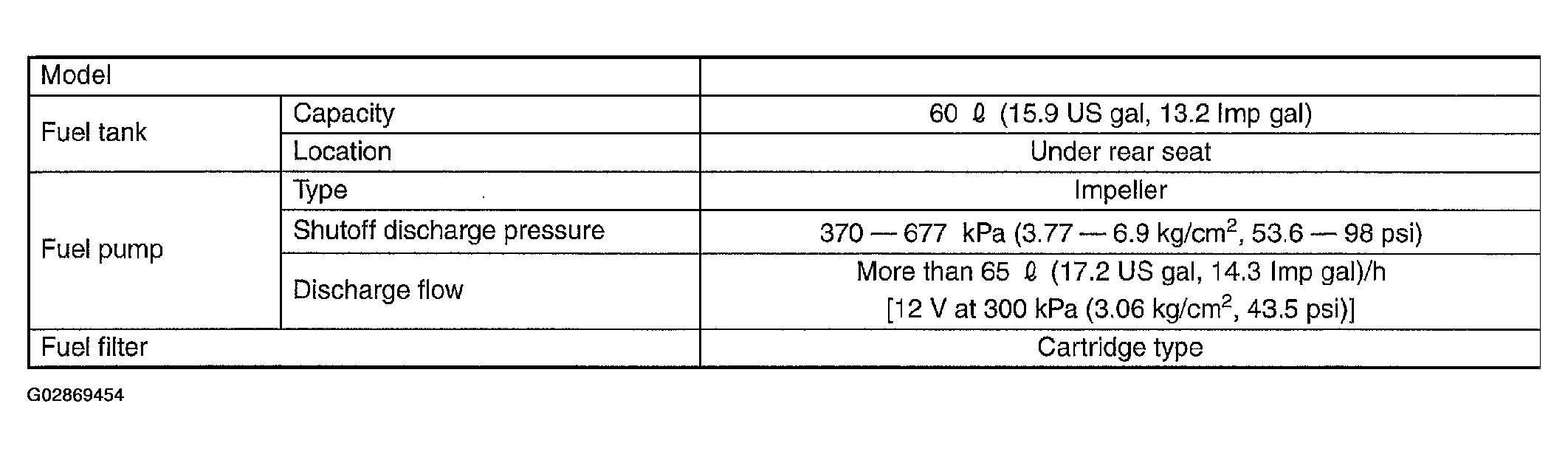

Fig 1: Fuel System Specifications
G02869454Courtesy of SUBARU OF AMERICA, INC.
