Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)

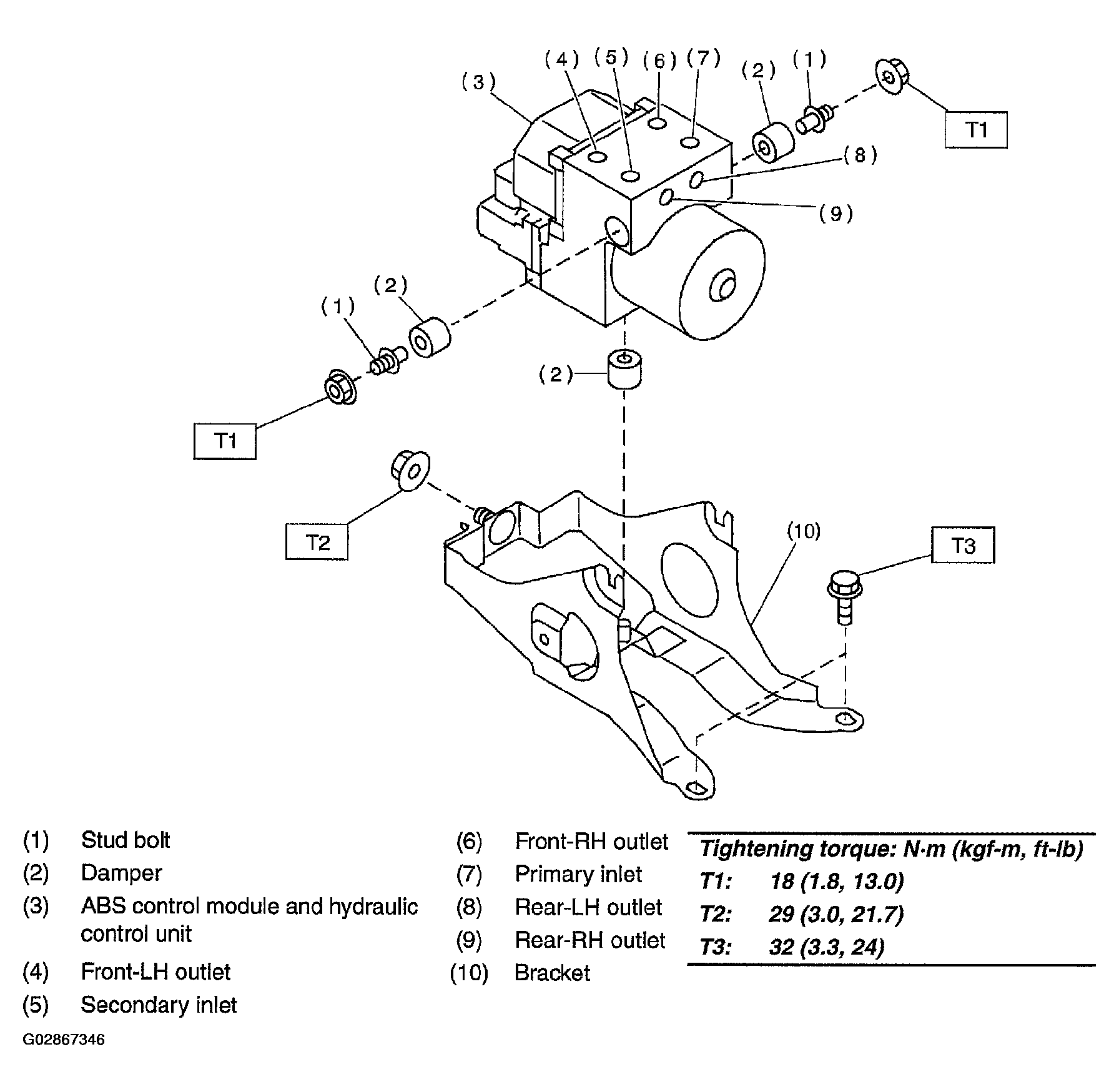

Fig 1: Identifying ABS Control Module And Hydraulic Control Unit (ABSCM & H/U)
G02867346Courtesy of SUBARU OF AMERICA, INC.
