Inhibitor Switch: Removal

Set up the vehicle on the lift.
Move select lever to neutral position.
Remove air cleaner case. Refer to REMOVAL under AIR CLEANER CASE .
Disconnect inhibitor switch connector.

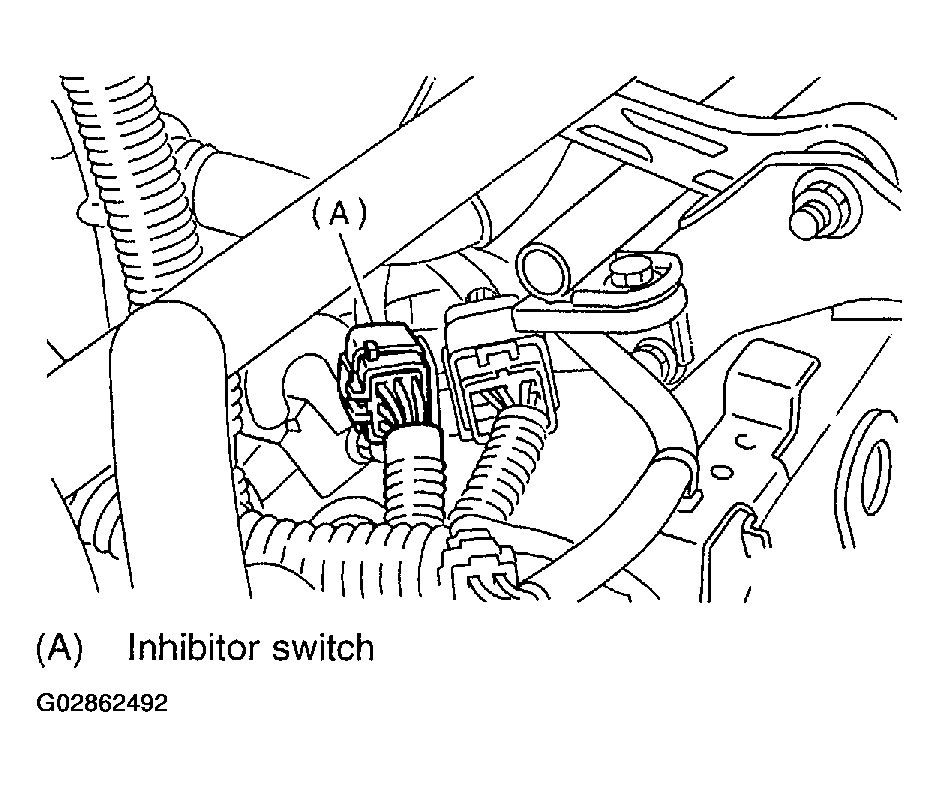

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove inhibitor switch connector from stay.
Lift-up the vehicle.
Remove front exhaust pipe with center exhaust pipe. Refer to REMOVAL under FRONT EXHAUST PIPE .
Remove snap pin from range select lever.

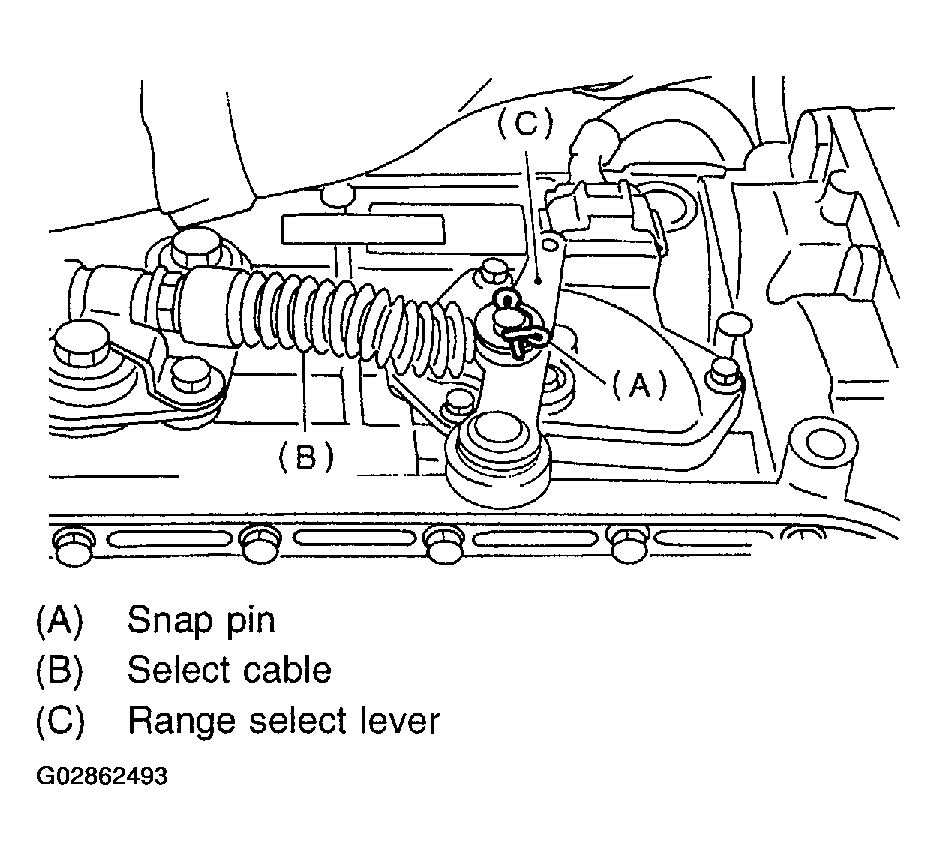

Fig 2: Removing Snap Pin From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove plate assembly from transmission case.

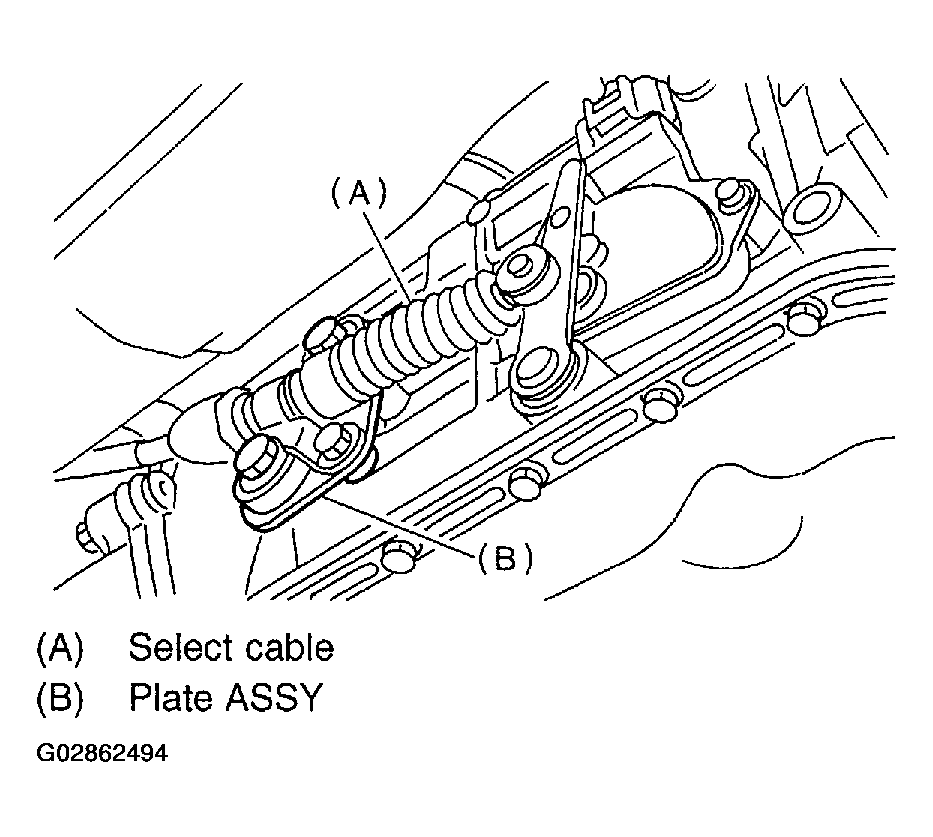

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts.

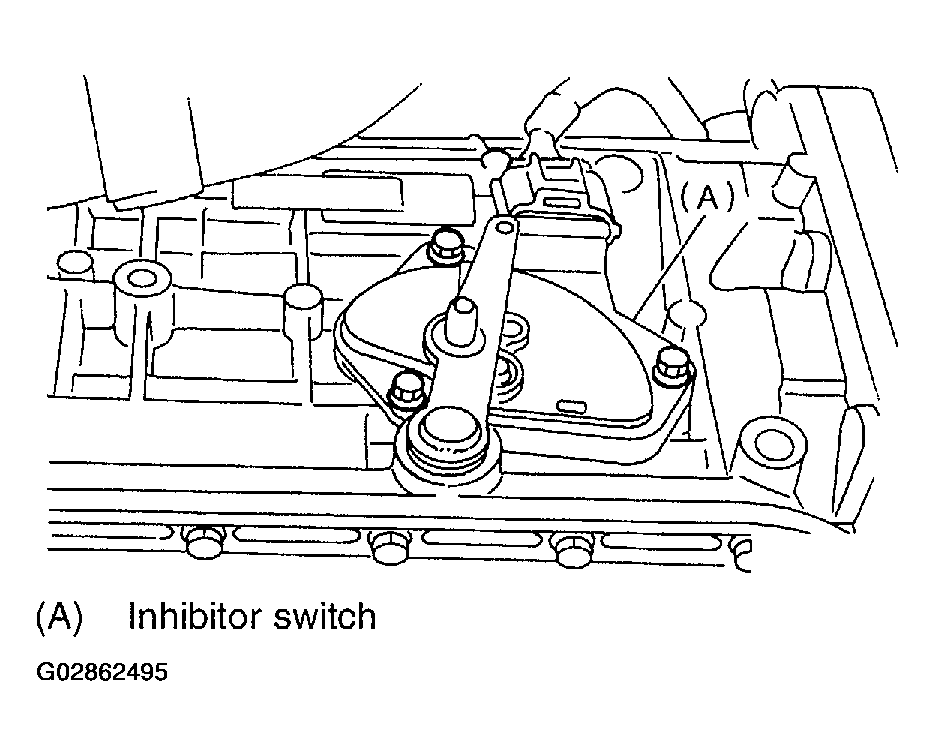

Fig 4: Removing Inhibitor Switch Bolt
Courtesy of SUBARU OF AMERICA, INC.
Move range select lever to parking position (left side).

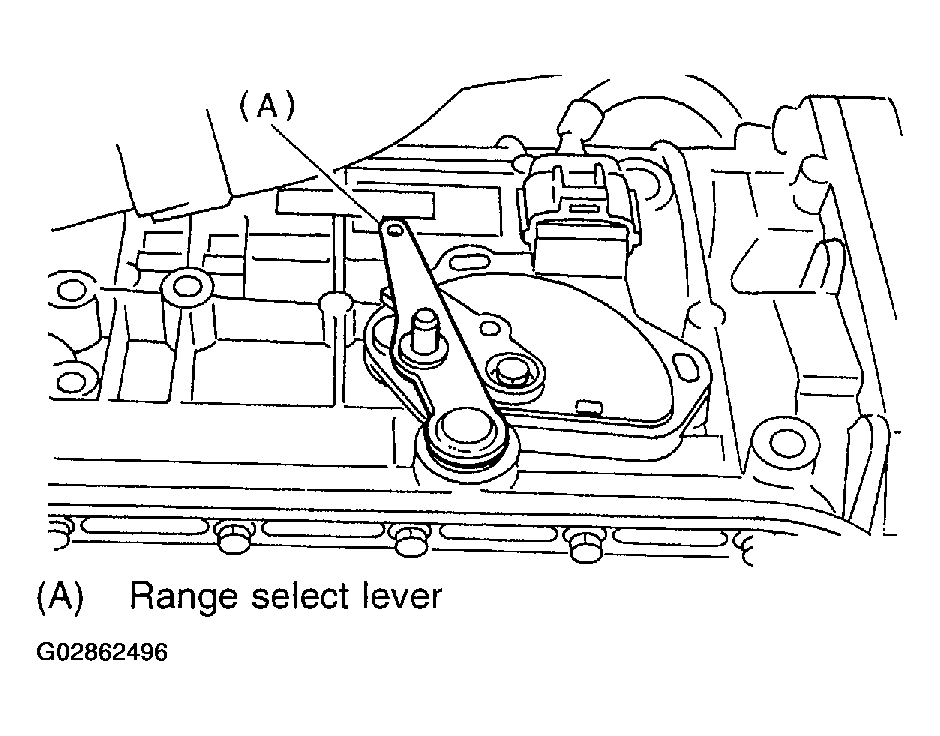

Fig 5: Moving Range Select Lever To Parking Position (Left Side)
Courtesy of SUBARU OF AMERICA, INC.
Remove inhibitor switch from transmission.

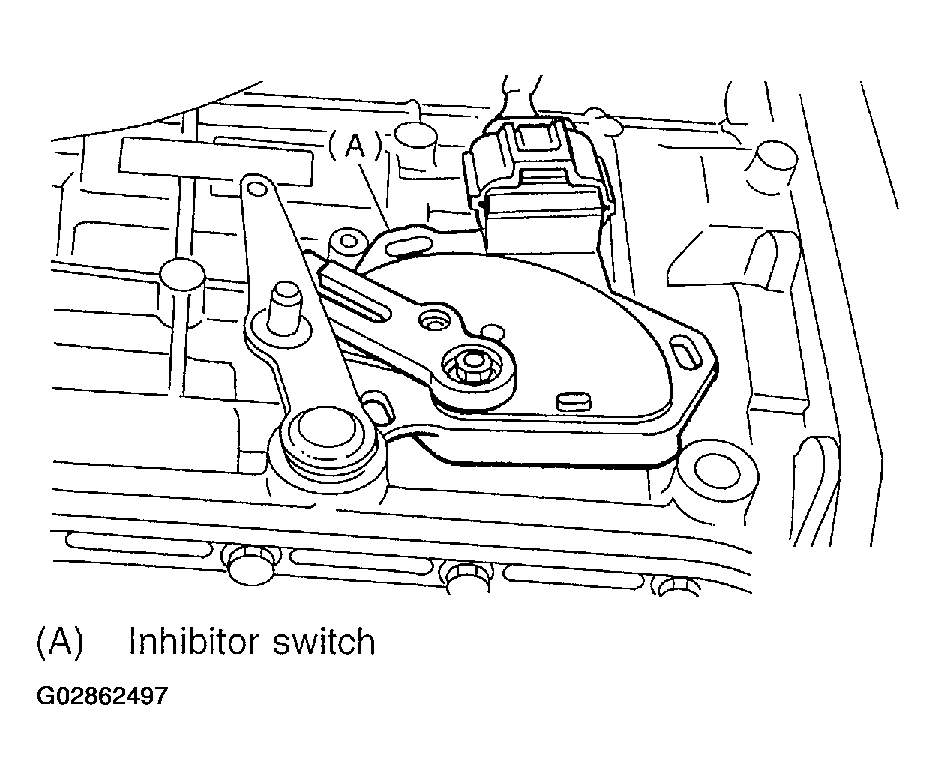

Fig 6: Removing Inhibitor Switch From Transmission
Courtesy of SUBARU OF AMERICA, INC.
Disconnect inhibitor switch harness from inhibitor switch.
