Operation Of At Oil Temp Warning Light

On starting the engine, the AT OIL TEMP warning light illuminates and then goes out as shown in the "Normal" diagram below.

If any problem exists, the light continues flashing as shown in the "Abnormal" diagram below.

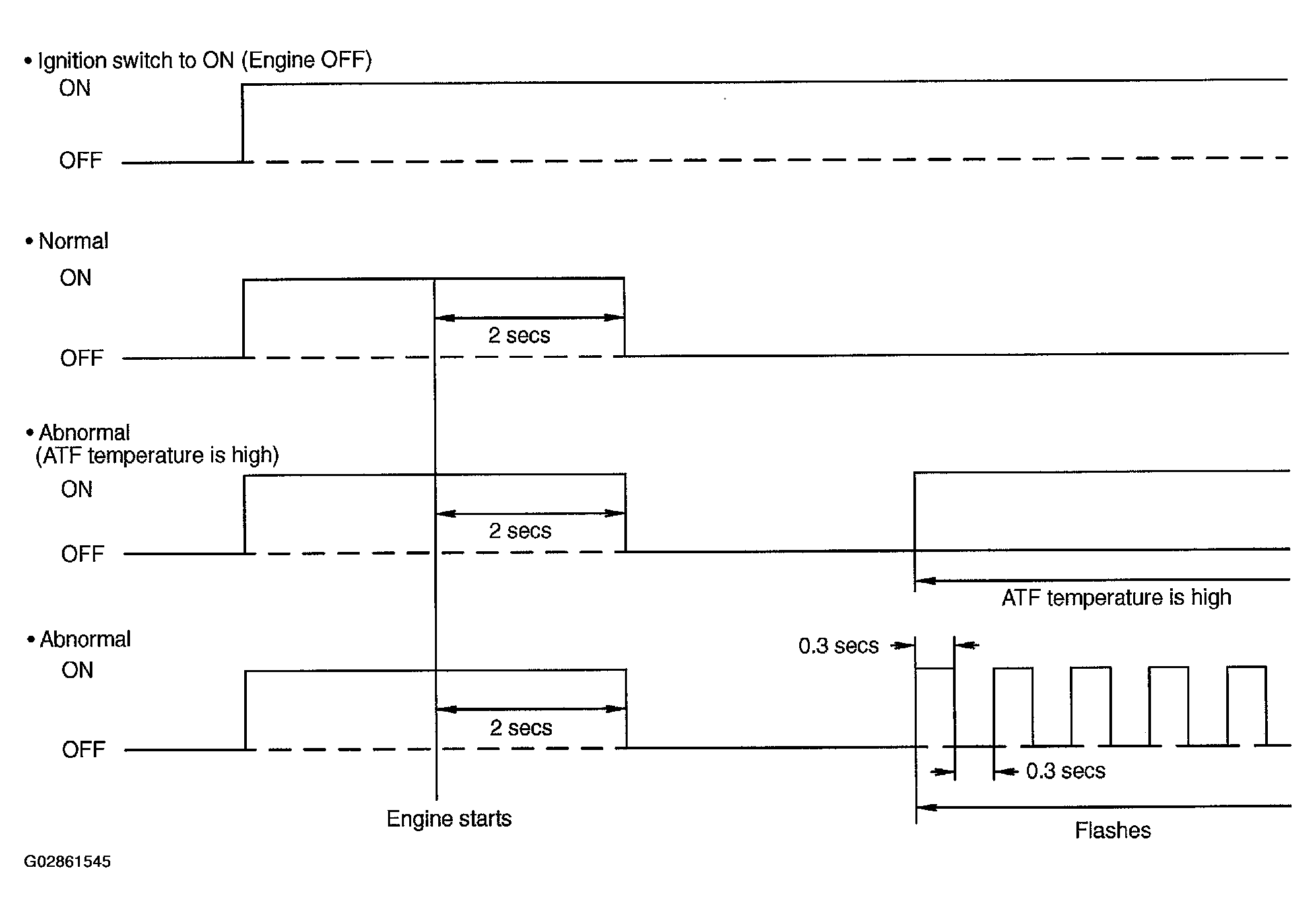

Fig 1: Operation Of At Oil Temp Warning Light

Courtesy of SUBARU OF AMERICA, INC.
