Pressure Switch

The pressure switch is located on the high-pressure line to the receiver drier. When an abnormally high or low pressure occurs in the high-pressure line, the pressure switch turns OFF to stop operation of the compressor.

• When the pressure is abnormally low [177 kPa (1.8 kgf/cm² , 26 psi) or less]

  The pressure switch turns OFF assuming that the refrigerant is lost due to leakage.

• When the pressure is abnormally high [2,940 kPa (30 kgf/cm² , 427 psi) or more]

  The pressure switch turns OFF to prevent the system from being damaged.

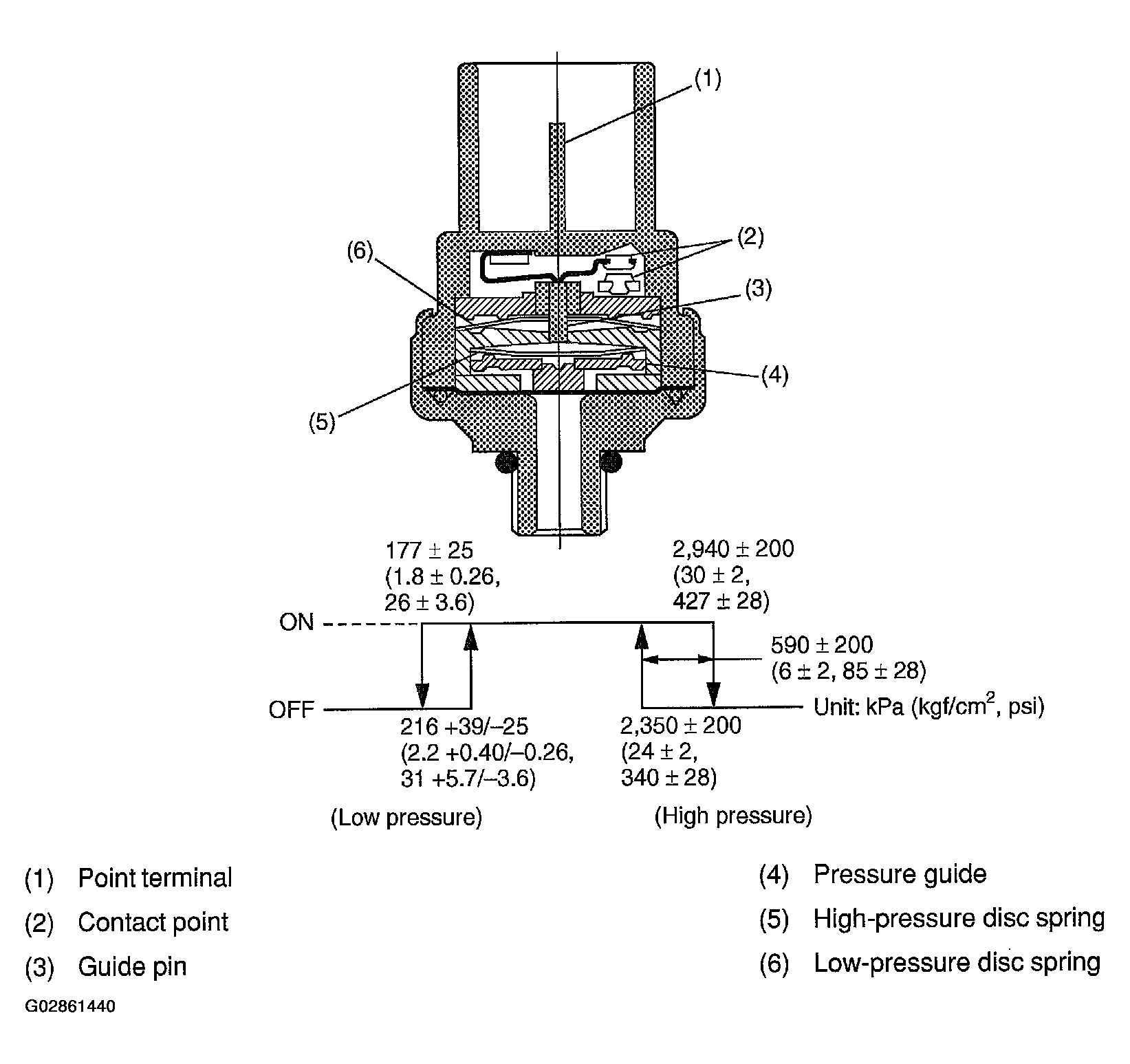

  Fig 1: Identifying Pressure Switch

  Courtesy of SUBARU OF AMERICA, INC.
