Radiator Sub Fan System: Inspection

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

DETECTING CONDITION:

Engine coolant temperature is above 96°C (205°F).
A/C compressor is rotated.
Vehicle speed is below 19 km/h (12 MPH).

TROUBLE SYMPTOM:

Radiator sub fan does not rotate under the above conditions.
Radiator sub fan does not rotate at high speed when the following conditions are both met:
1. Engine coolant temperature is above 90°C (194°F).
2. A/C is ON.

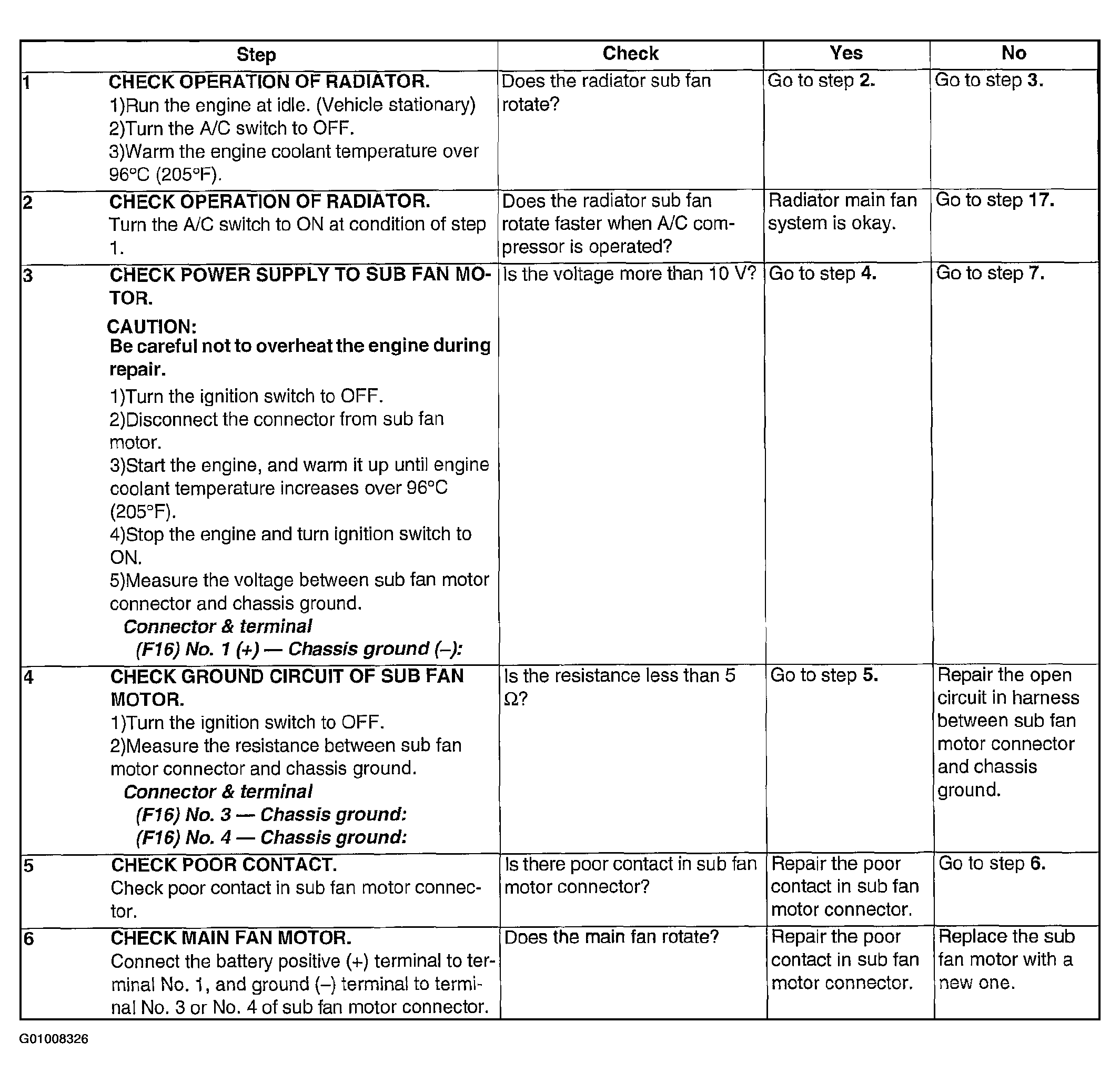

  Fig 1: Trouble Symptom Chart (1 of 4)
  Courtesy of SUBARU OF AMERICA, INC.

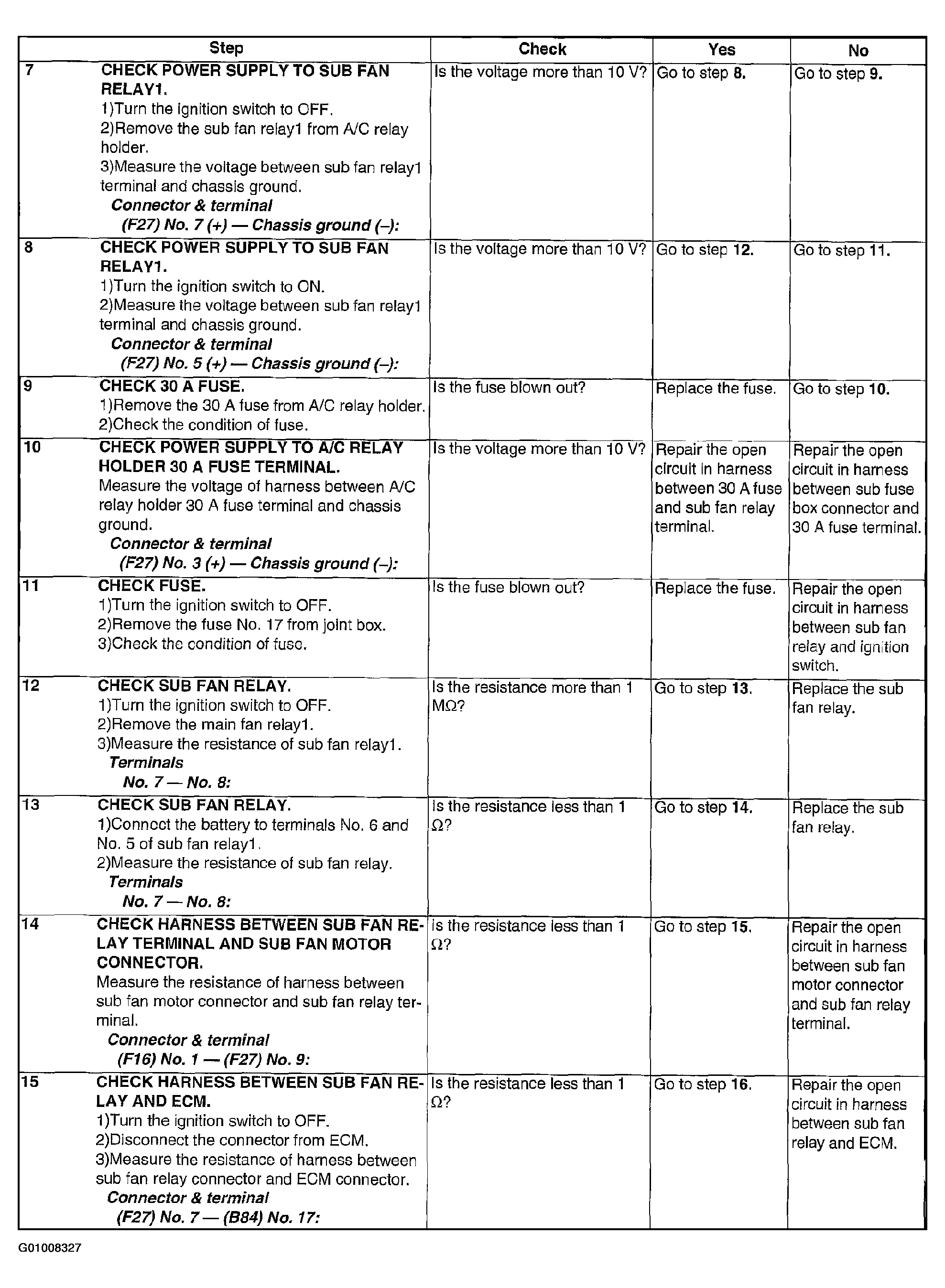

  Fig 2: Trouble Symptom Chart (2 of 4)
  Courtesy of SUBARU OF AMERICA, INC.

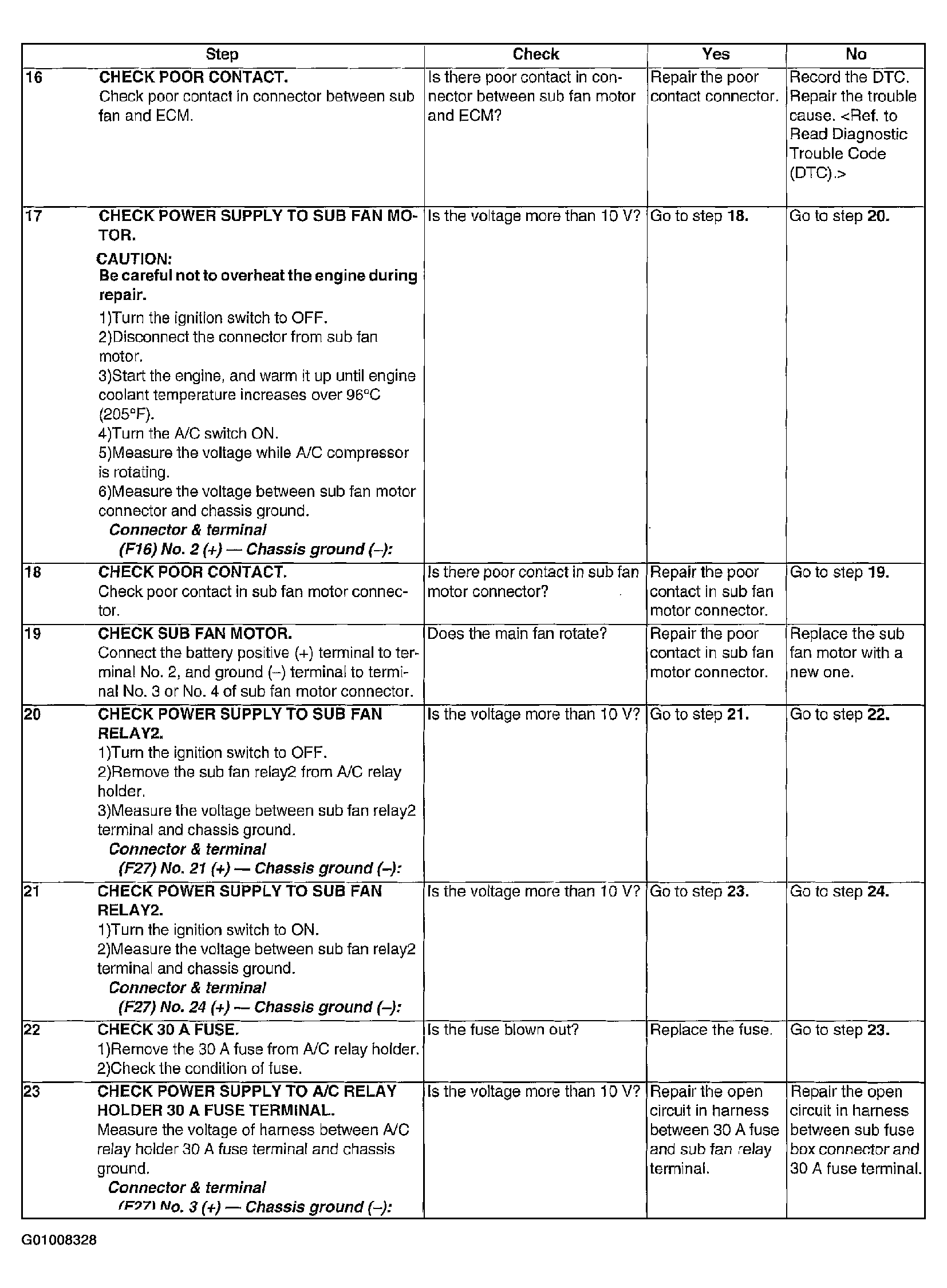

  Fig 3: Trouble Symptom Chart (3 of 4)
  Courtesy of SUBARU OF AMERICA, INC.

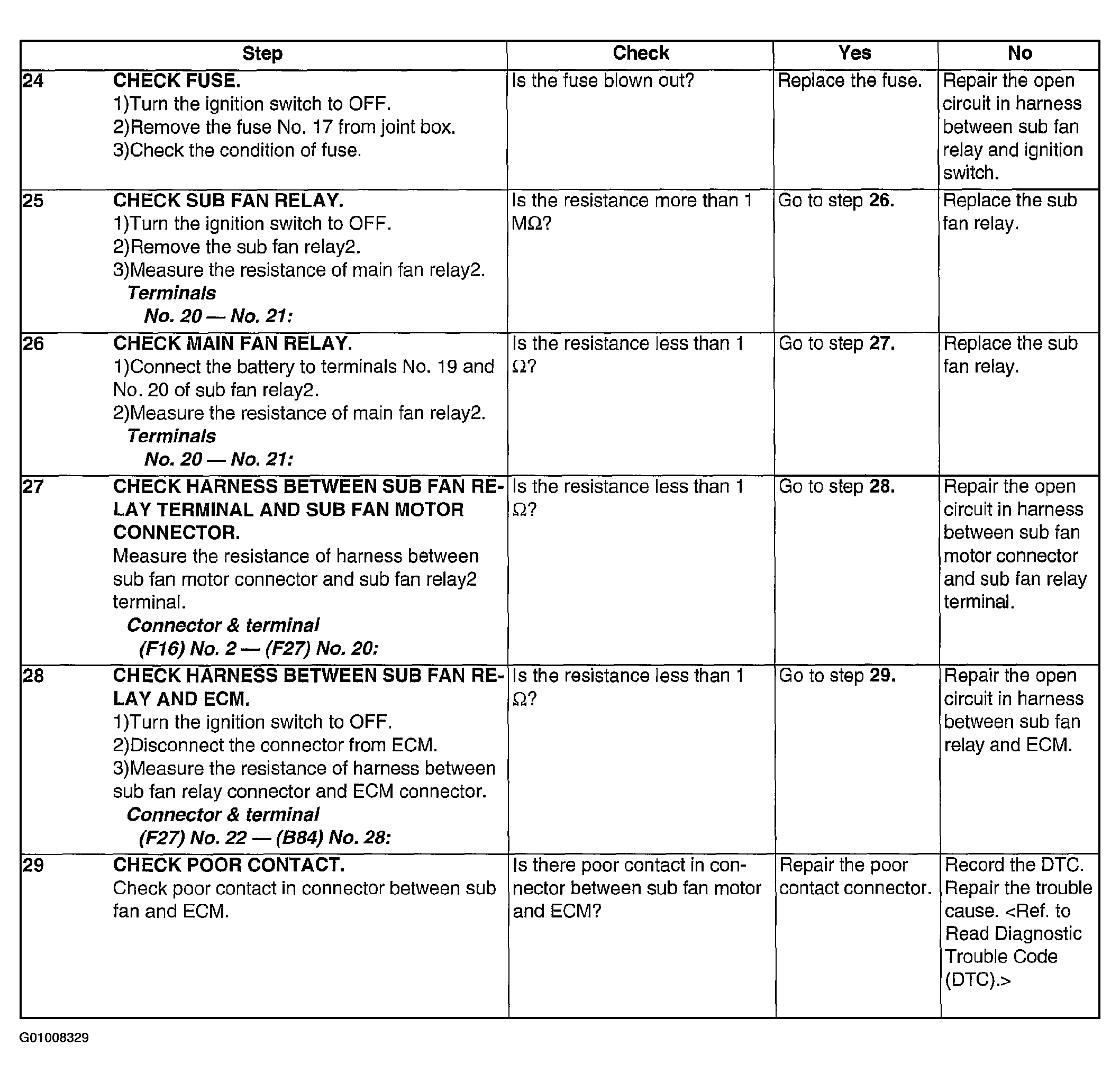

  Fig 4: Trouble Symptom Chart (4 of 4)
  Courtesy of SUBARU OF AMERICA, INC.
