Interrupt Relay

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery. Remove mounting nuts and detach the interrupt relay (near the fuse box). See Fig 1 . To install, reverse removal procedures.

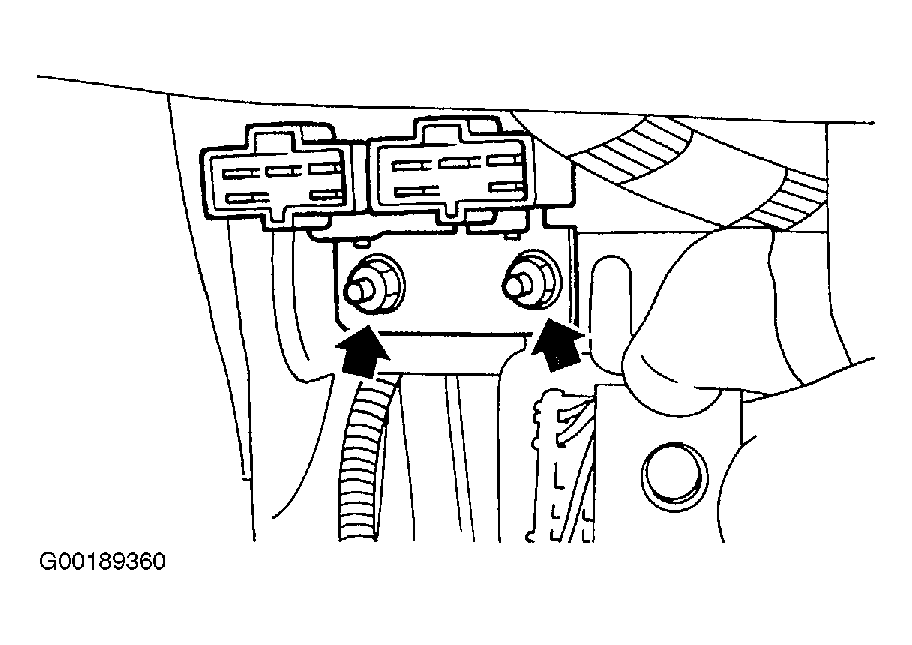

Fig 1: Removing Interrupt Relay
G00189360Courtesy of SUBARU OF AMERICA, INC.
