General Diagnostic Table: Inspection

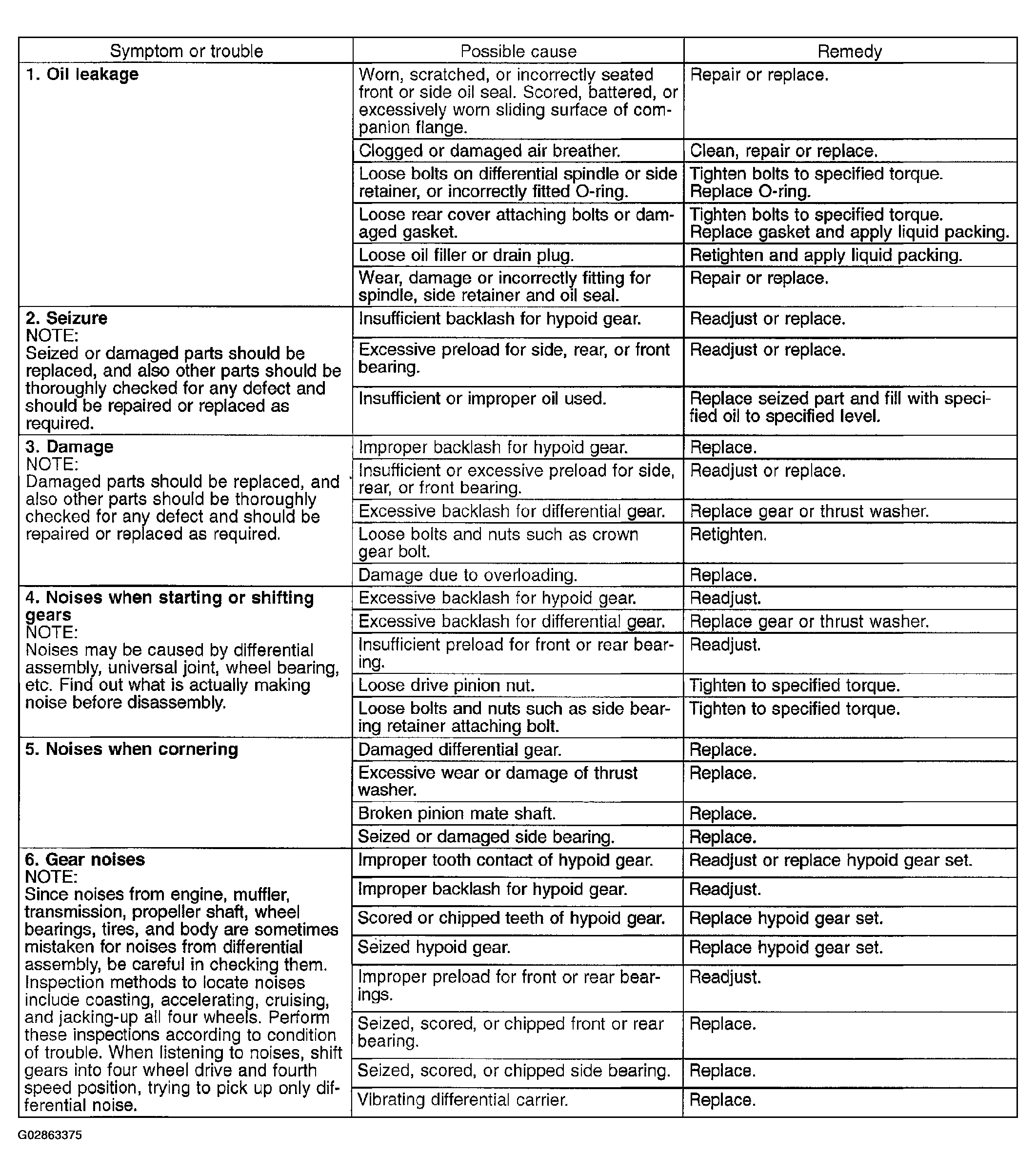

Fig 1: Identifying Symptom Chart
G02863375Courtesy of SUBARU OF AMERICA, INC.
