Front Door Glass
To adjust front door glass, follow the procedures in
Fig 1
and
Fig 2
.

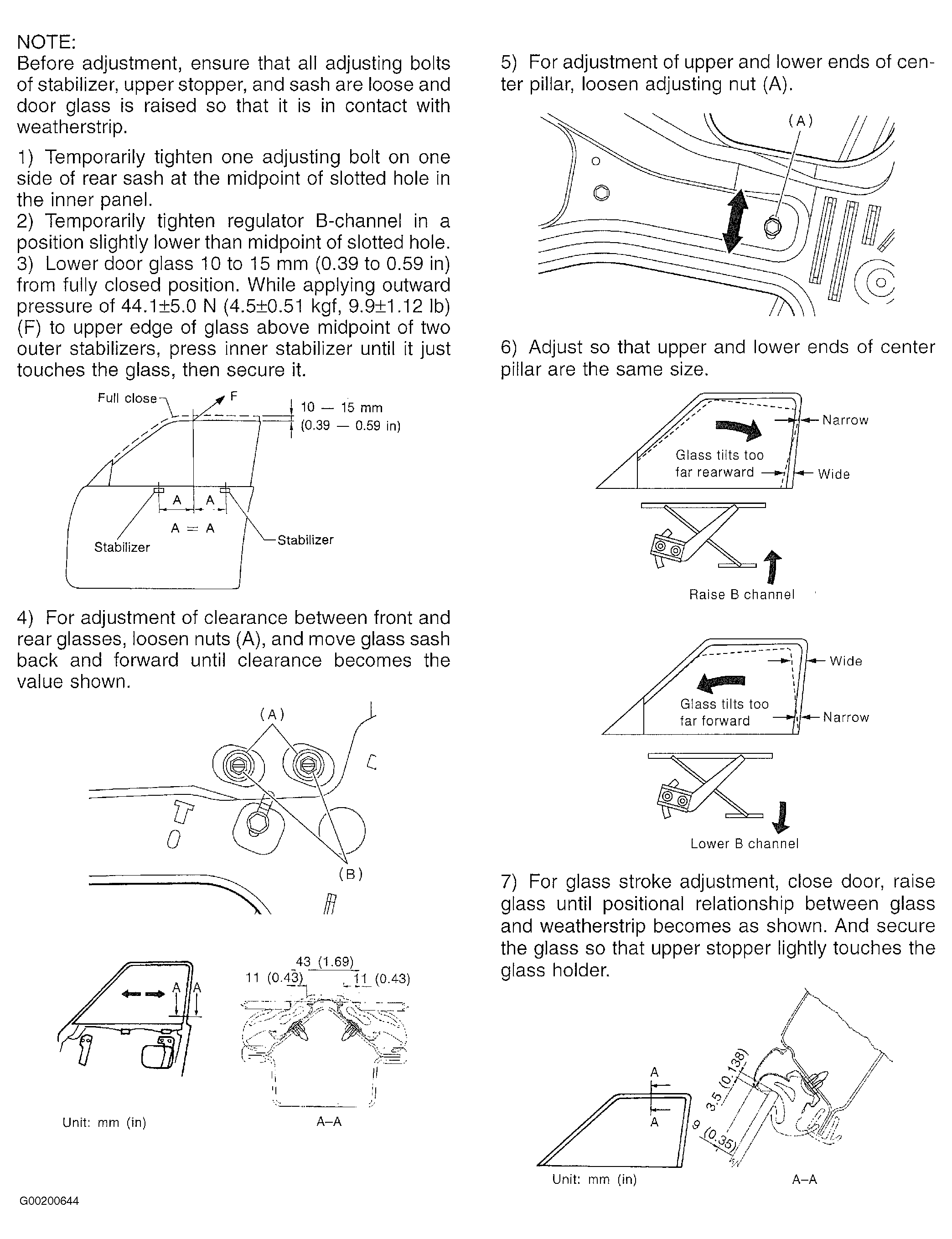

Fig 1: Adjusting Front Door Glass (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

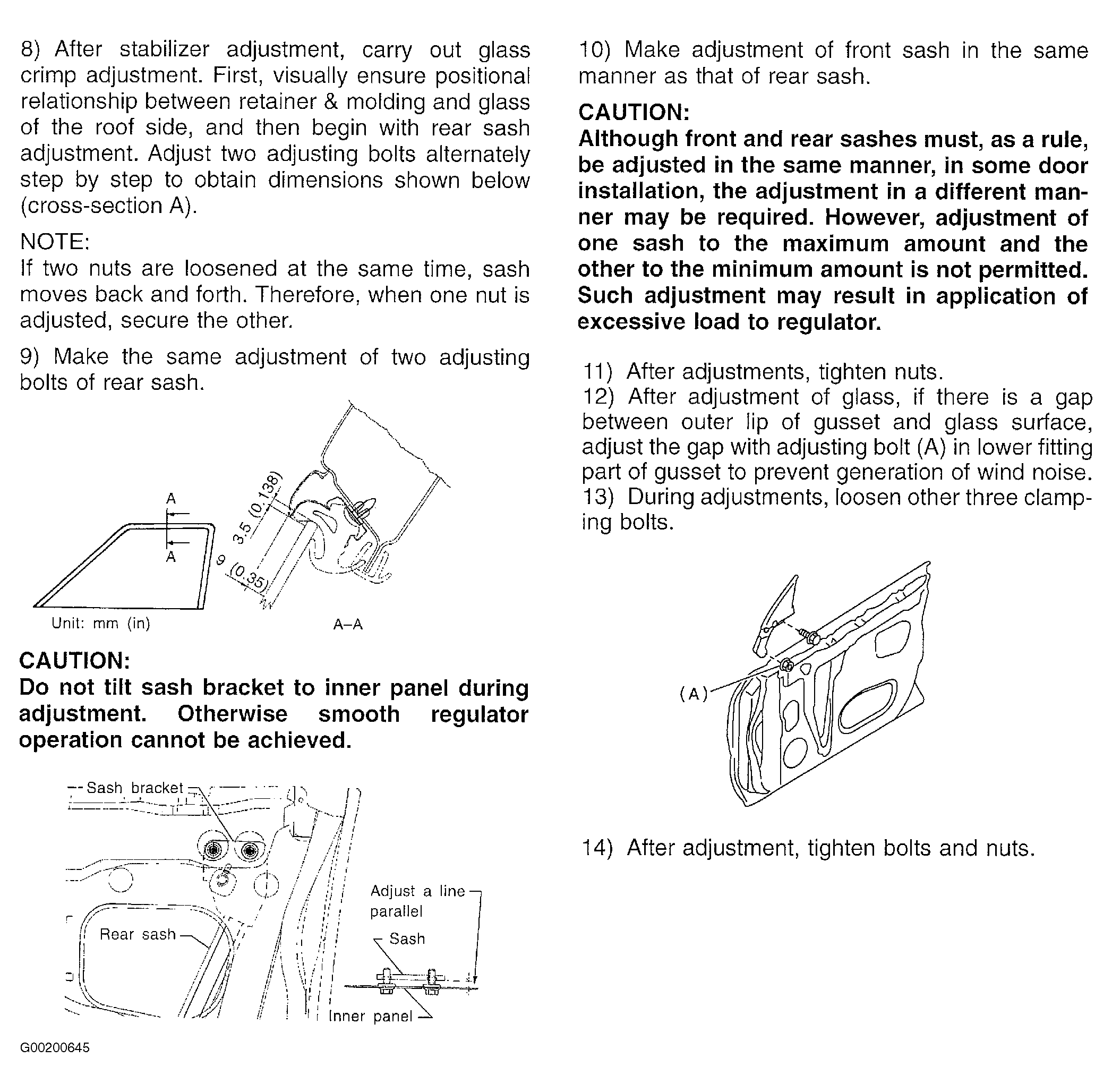

Fig 2: Adjusting Front Door Glass (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
