Check Horn Operation

CHECK HORN OPERATION

No. Step Check Yes No
CHECK HORN OPERATION.  Make sure the horn sounds when switch is pushed. Does the horn sound? Go to step 2. Check the horn circuit

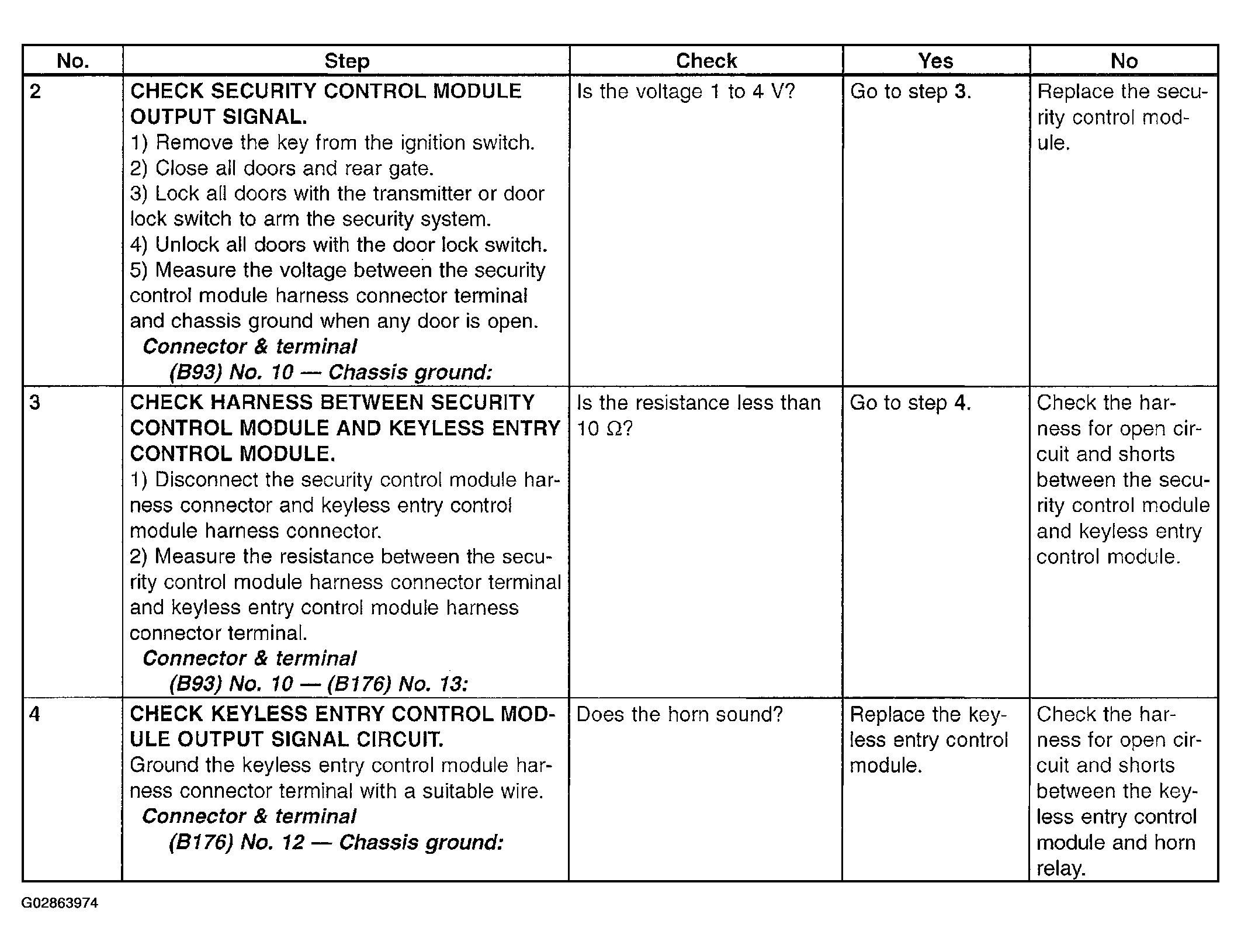

Fig 1: Checking Horn Operation Chart
G02863974Courtesy of SUBARU OF AMERICA, INC.
