Wiper Control Relay: Removal

  1. Disconnect battery ground cable.
  2. Remove the right quarter lower trim. Refer to REMOVAL , Rear Quarter Trim.
  3. Remove the quarter pocket.
  4. Loosen nut to remove control unit.

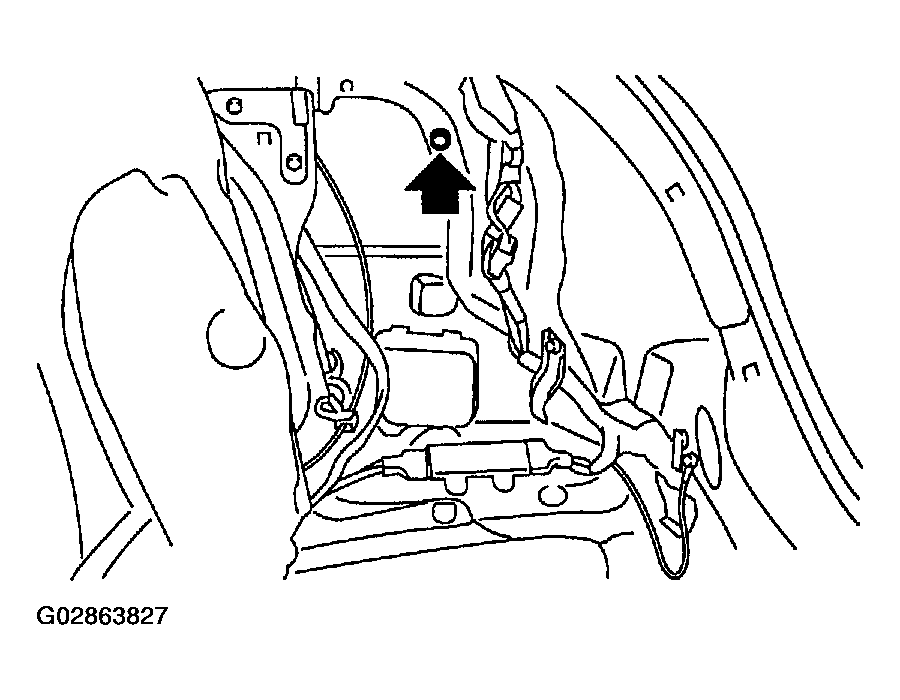

Fig 1: Removing Wiper Control Relay
G02863827Courtesy of SUBARU OF AMERICA, INC.
