Cruise Control Module: Removal

Disconnect ground cable from battery.
Remove front pillar lower trim.

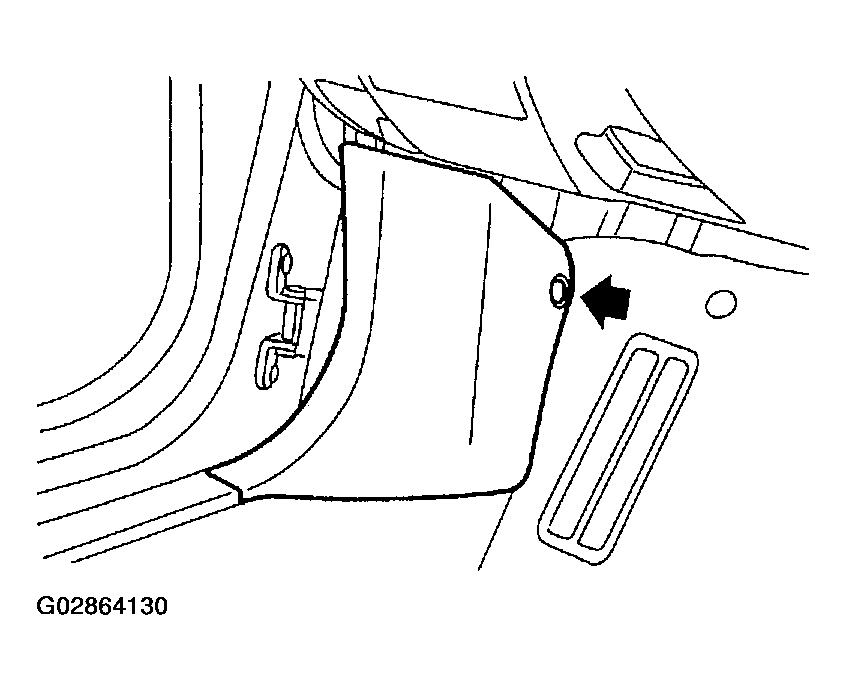

Fig 1: Removing Front Pillar Lower Trim
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from cruise control module.
Remove bolt, then remove cruise control module.

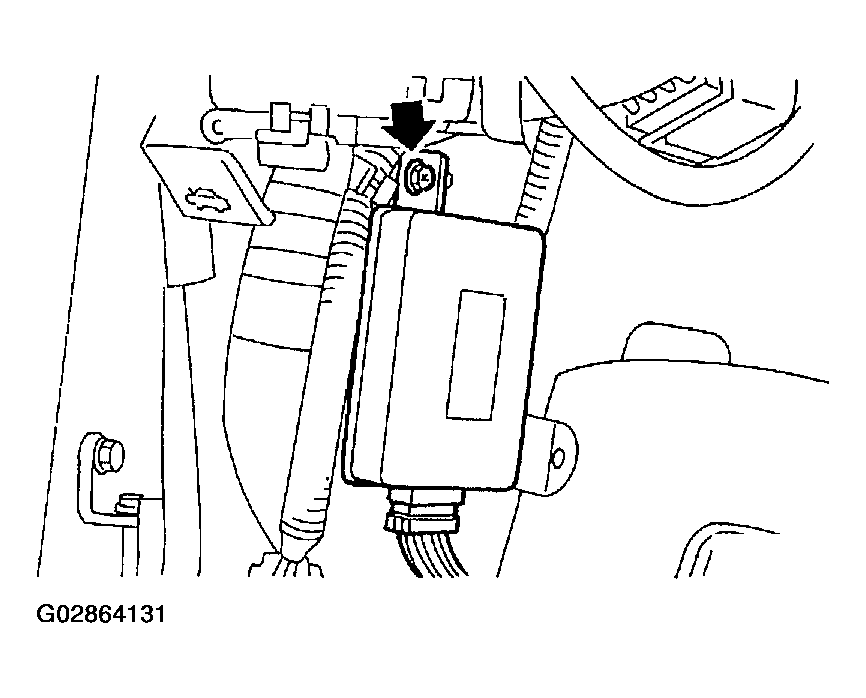

Fig 2: Removing Cruise Control Module
Courtesy of SUBARU OF AMERICA, INC.
