Transmission Control Module (TCM) I/O Signal
>>
Schematic
>>
Without VDC System
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Without VDC System

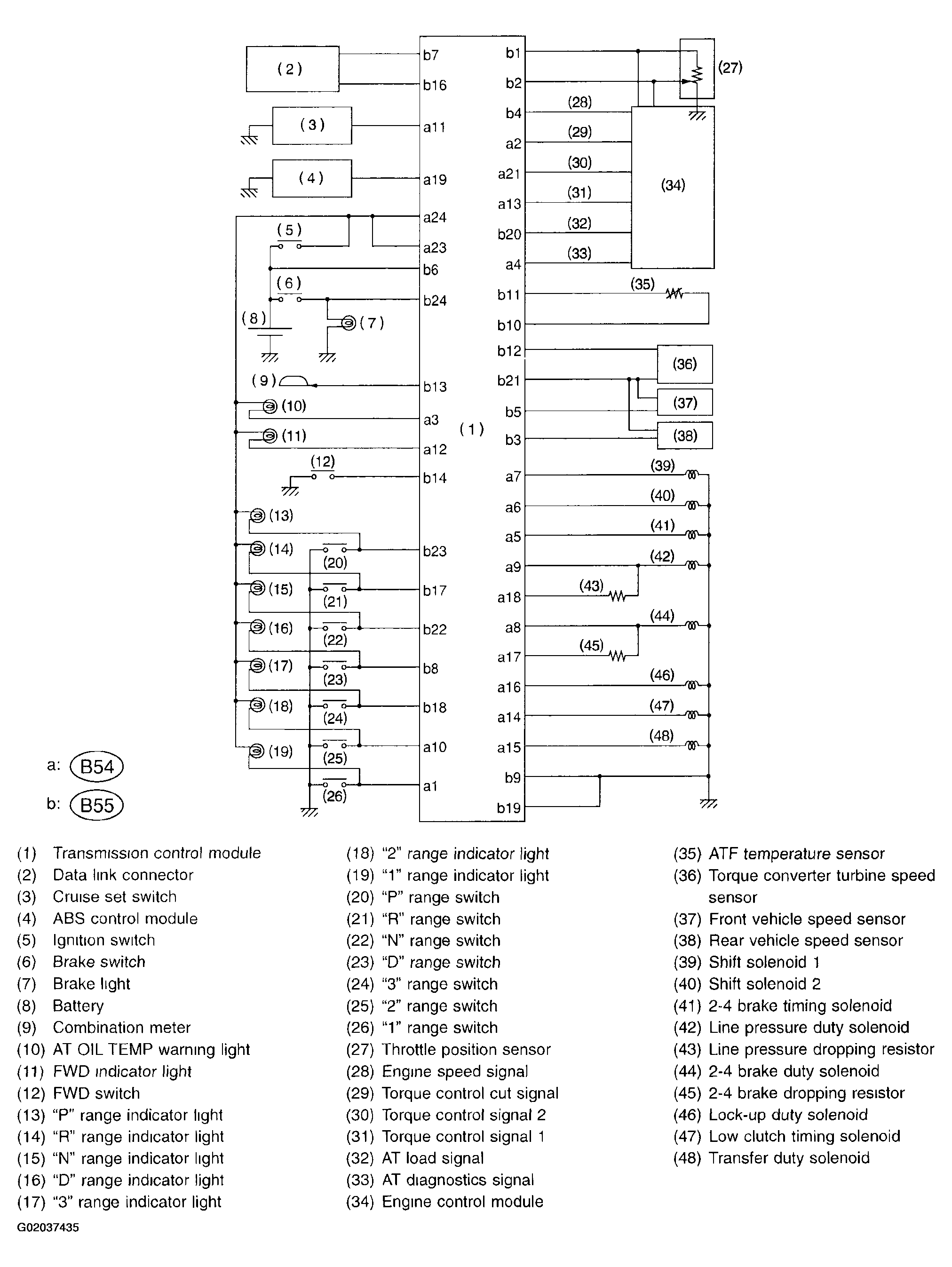

Fig 1: Schematic Diagram (Without VDC System)
