Code 38: Torque Control Signal: Trouble Symptom

Excessive shift shock.

• 2.5 L ENGINE MODEL

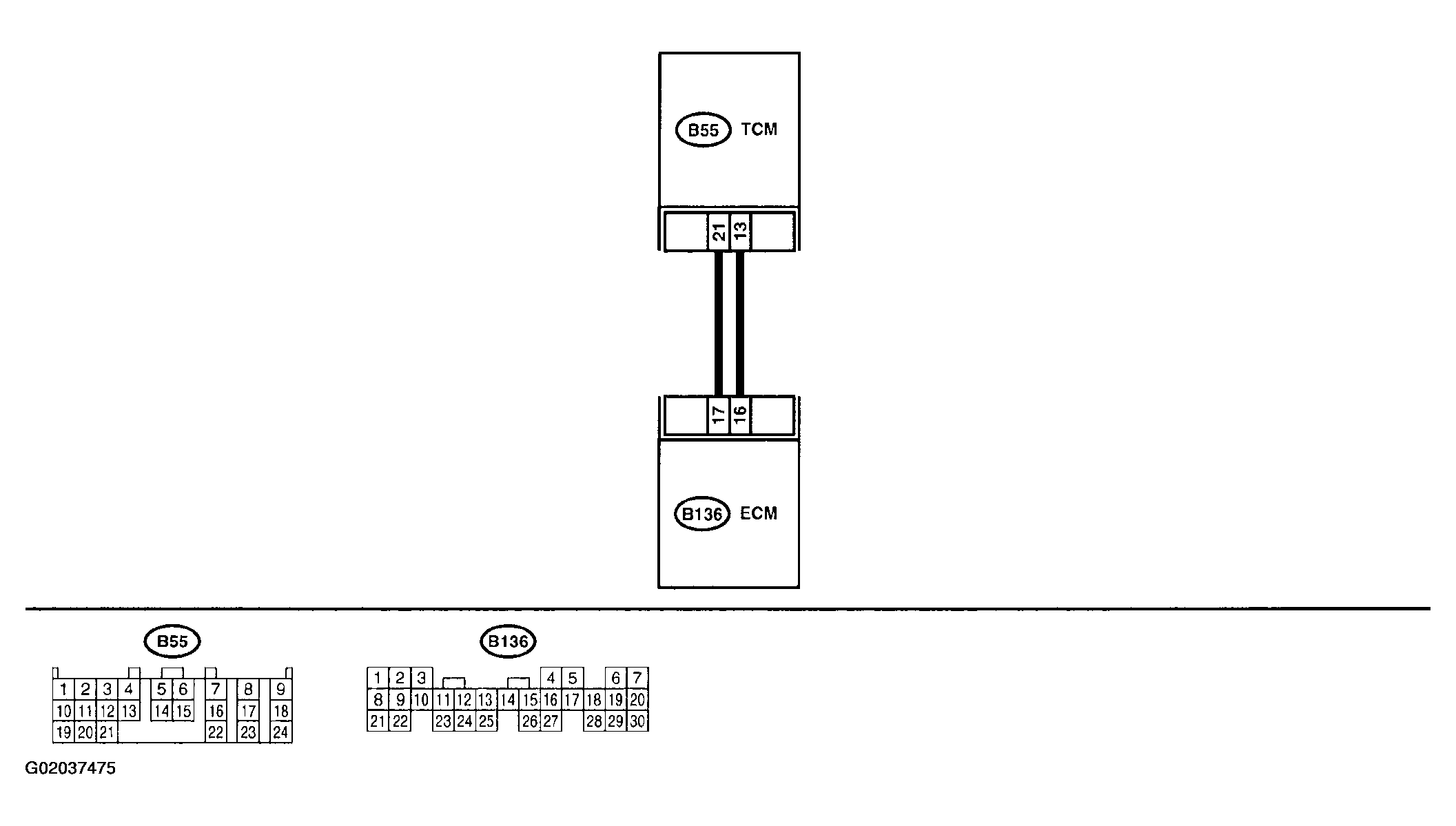

  Fig 1: Trouble Code 38 - Torque Control Signal Wiring Diagram (2.5 L)


• 3.0 L ENGINE MODEL

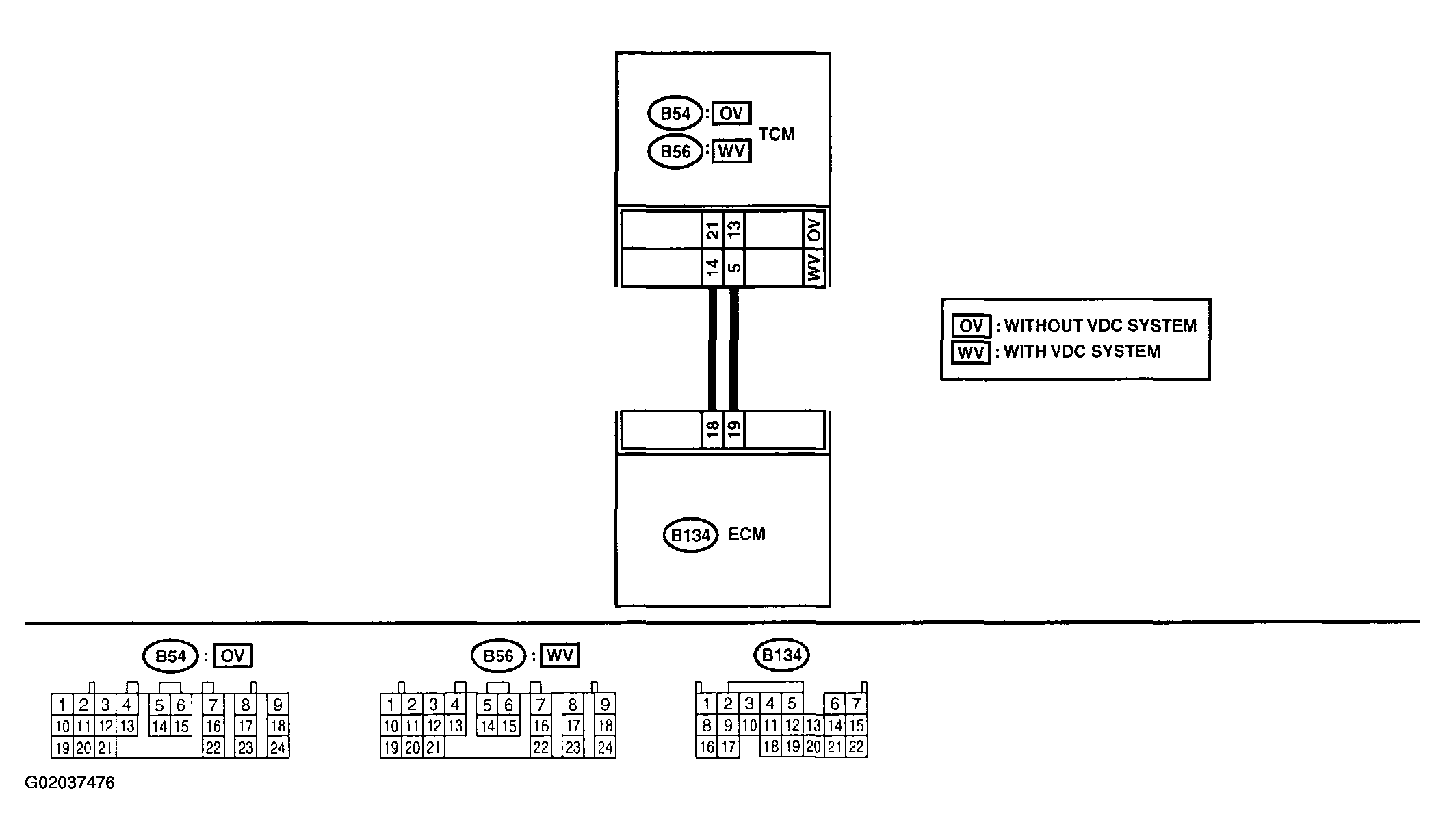

  Fig 2: Trouble Code 38 - Torque Control Signal Wiring Diagram (3.0 L)

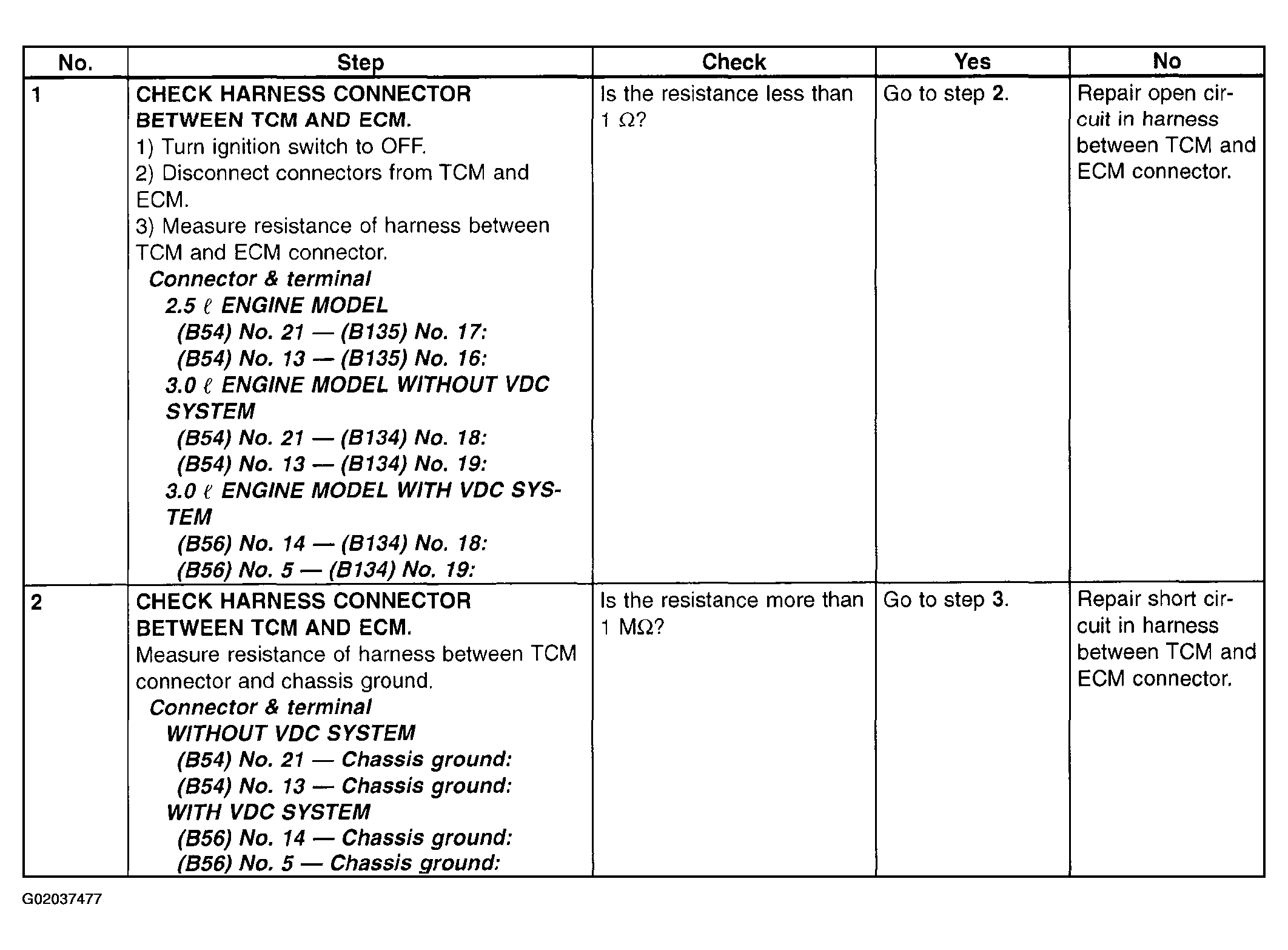

  Fig 3: Trouble Code 38 - Diagnostic Chart (1 Of 2)

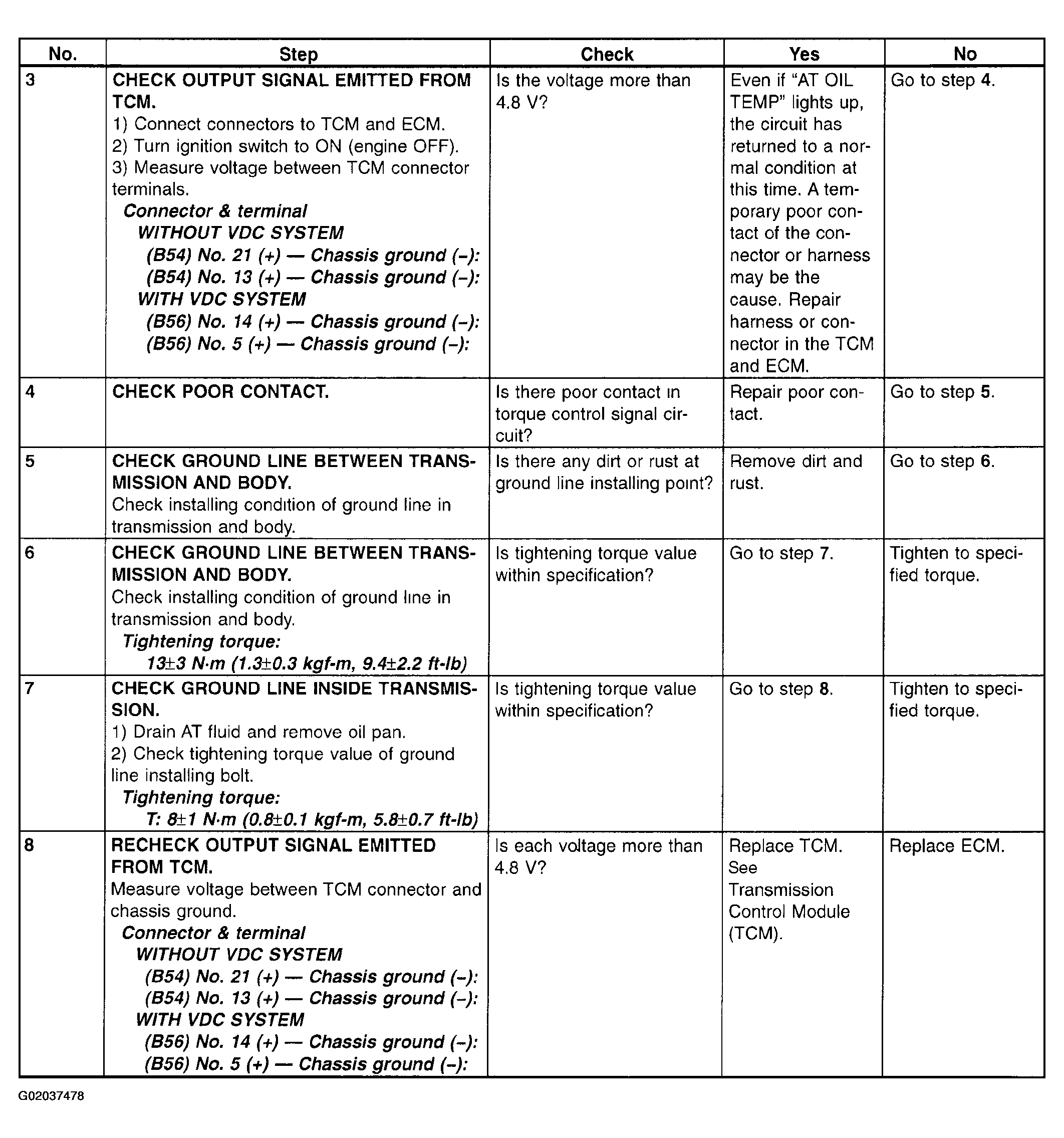

  Fig 4: Trouble Code 38 - Diagnostic Chart (2 Of 2)
