Master Cylinder: Inspection

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, fluid reservoir, return spring and gasket, replace the faulty part.

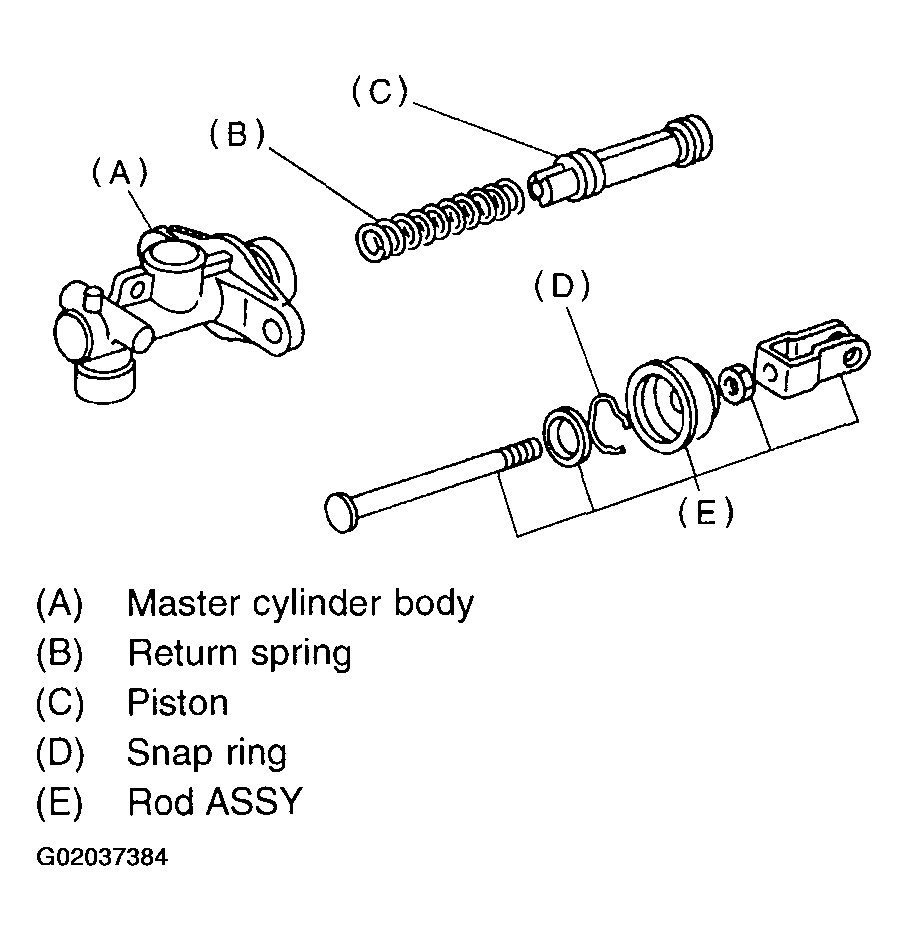

Fig 1: Identifying Master Cylinder Components
G02037384
