Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before or during assembling, lubricate the following points with a light coat of grease.
  • Contact surface of lever and pivot
  • Contact surface of lever and bearing
  • Transmission main shaft spline (Use grease containing molybdenum disulfide.)
  • Contact surface of lever and operating cylinder
  1. While pushing the release lever to pivot and twisting it to both sides, fit the retainer spring onto the constricted portion of pivot.
    NOTE:
    • Apply grease (SUNLIGHT 2: P/N 003602010) to the contact point of release lever and operating cylinder.
    • Confirm that the retainer spring is securely fitted by observing it through the main case hole.

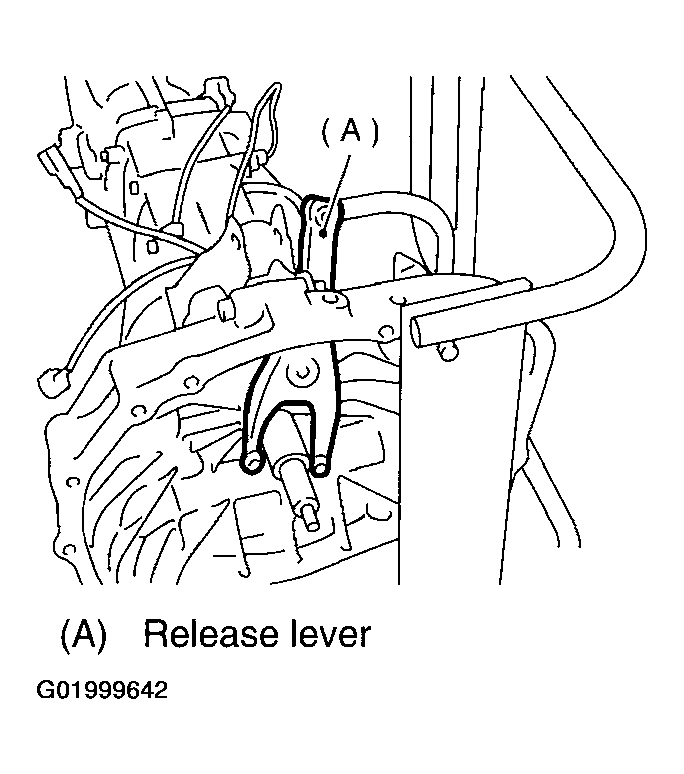

    Fig 1: Installing Retainer Spring Onto Constricted Portion Of Pivot
    G01999642Courtesy of SUBARU OF AMERICA, INC.
  2. Install the release bearing and fasten it with two clips.
  3. Install the release lever seal.

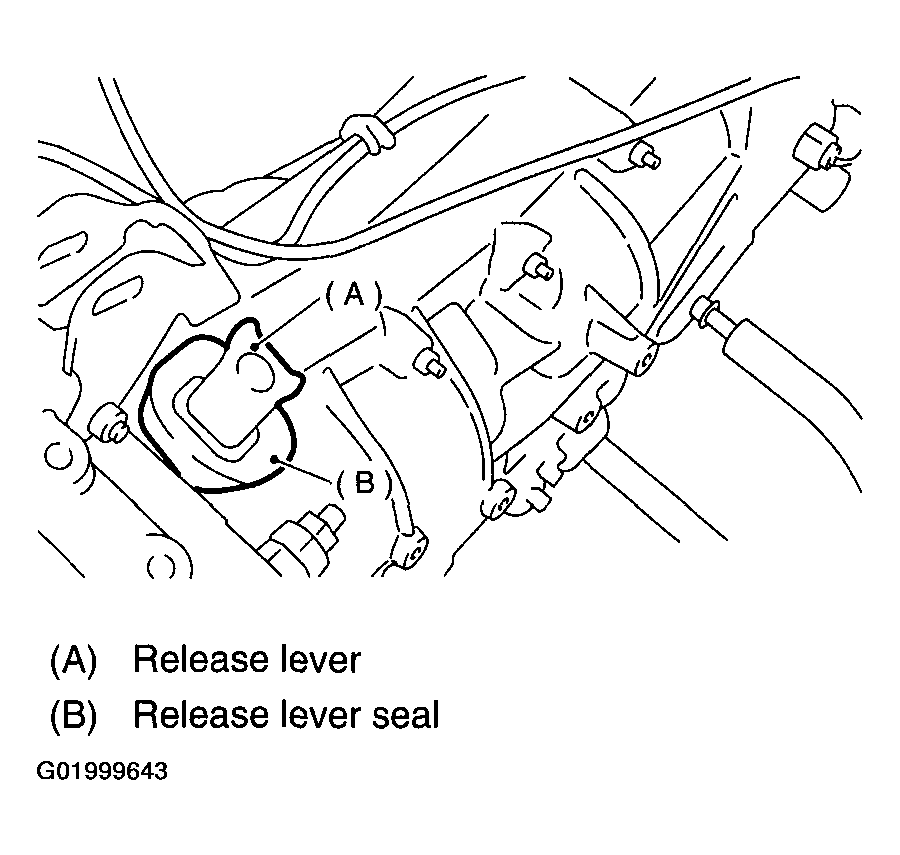

    Fig 2: Installing Release Lever Seal
    G01999643Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transmission assembly. See INSTALLATION , Manual Transmission Assembly.
