Special Tools

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

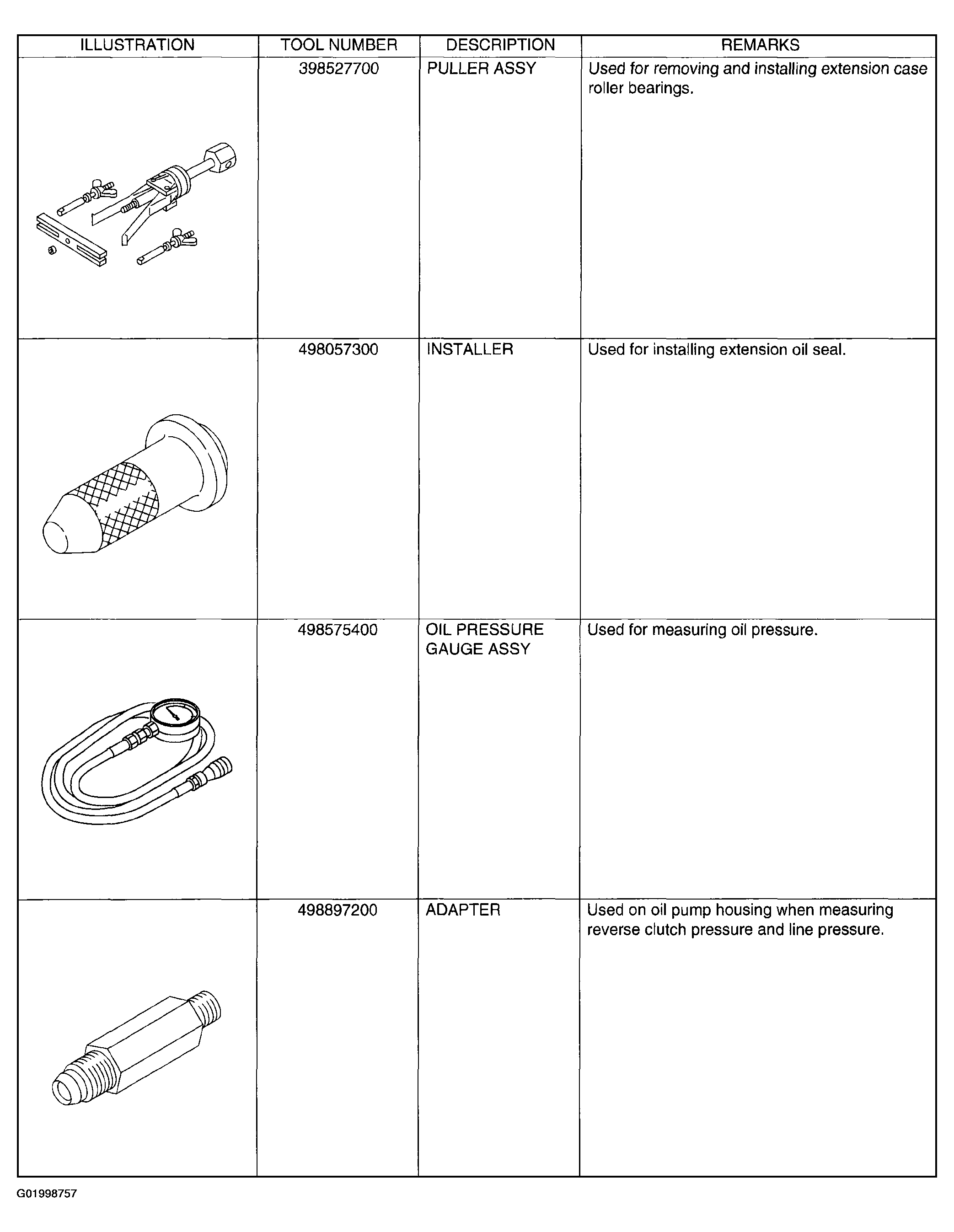

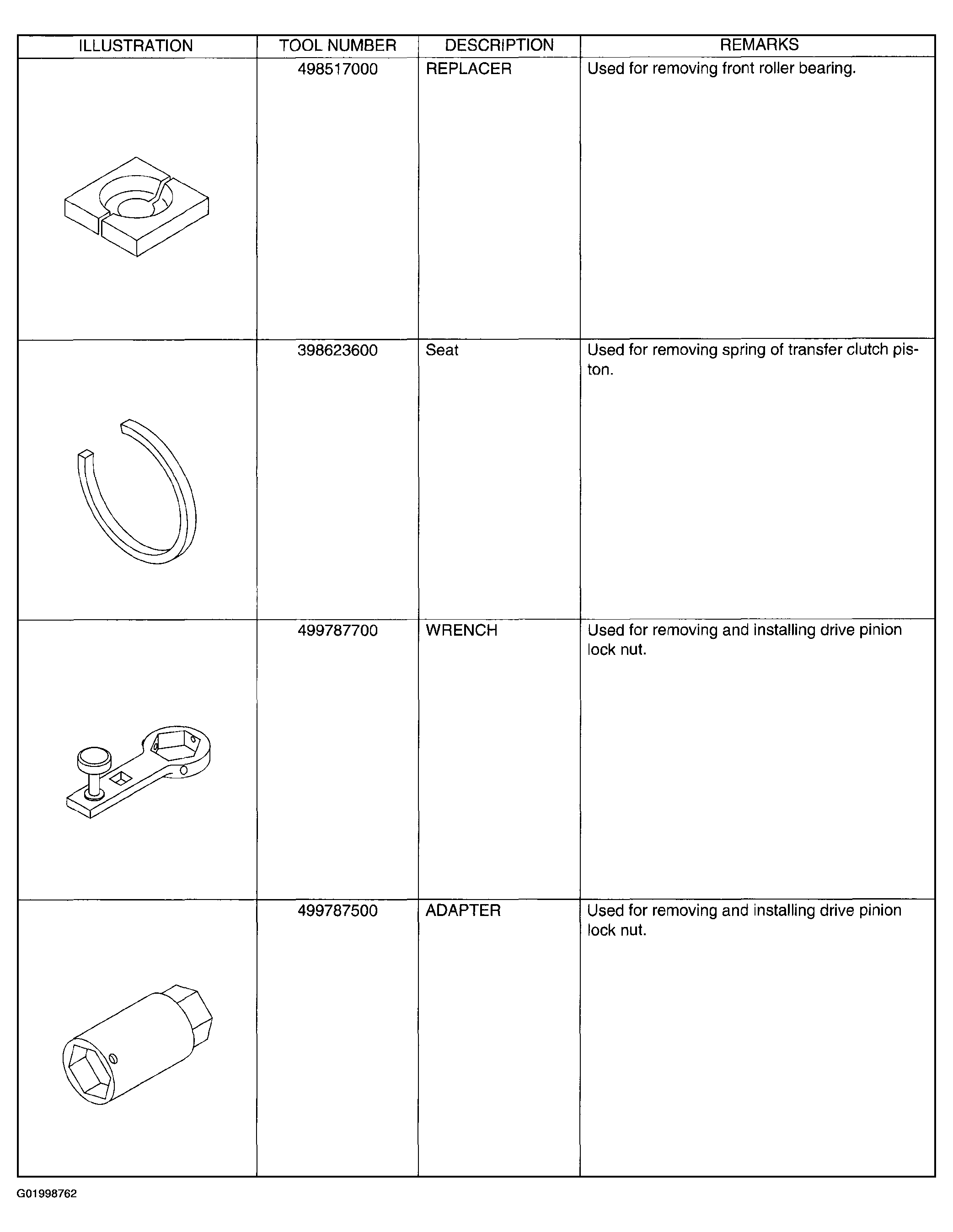

Fig 1: Identifying Special Tools (1 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

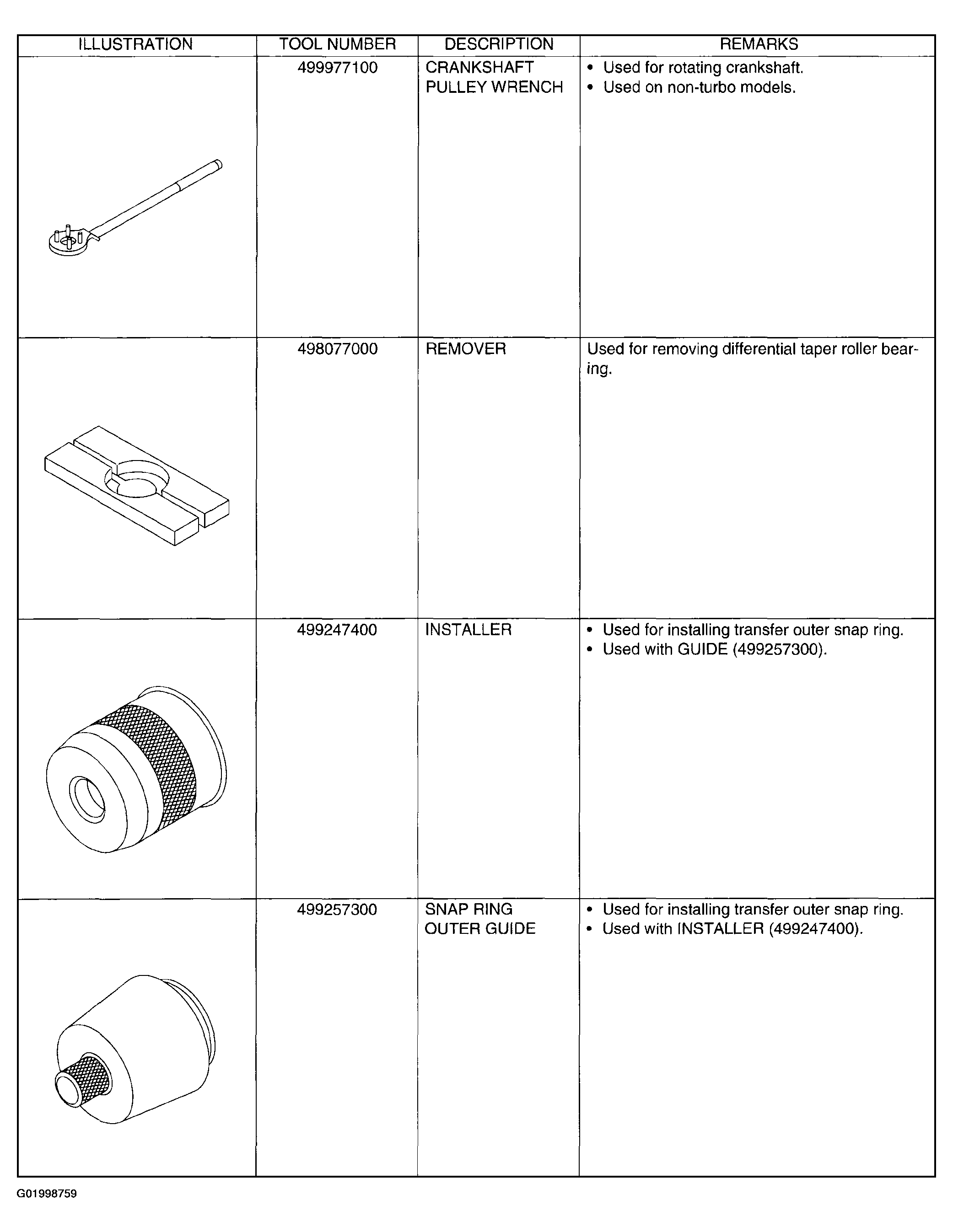

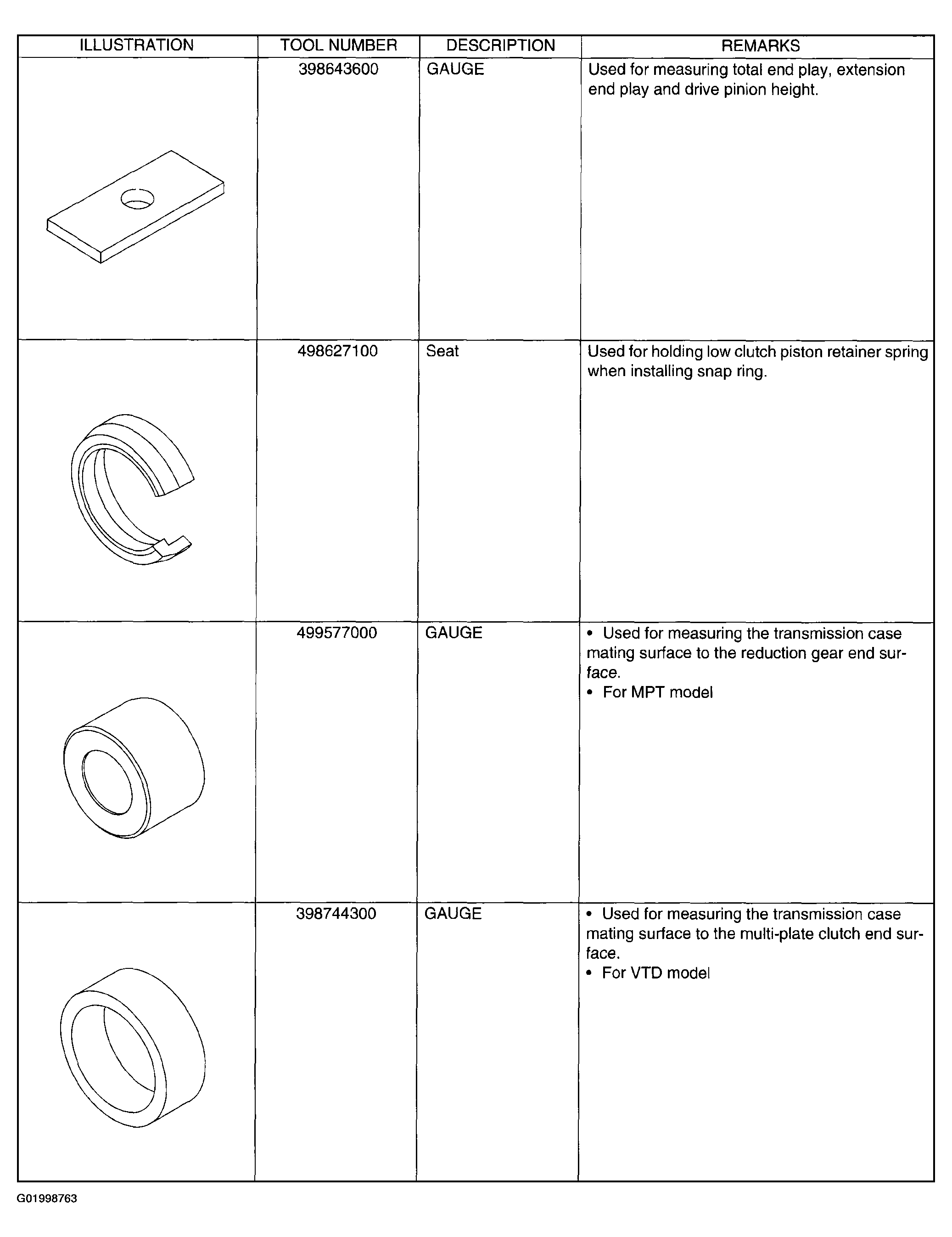

Fig 2: Identifying Special Tools (2 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

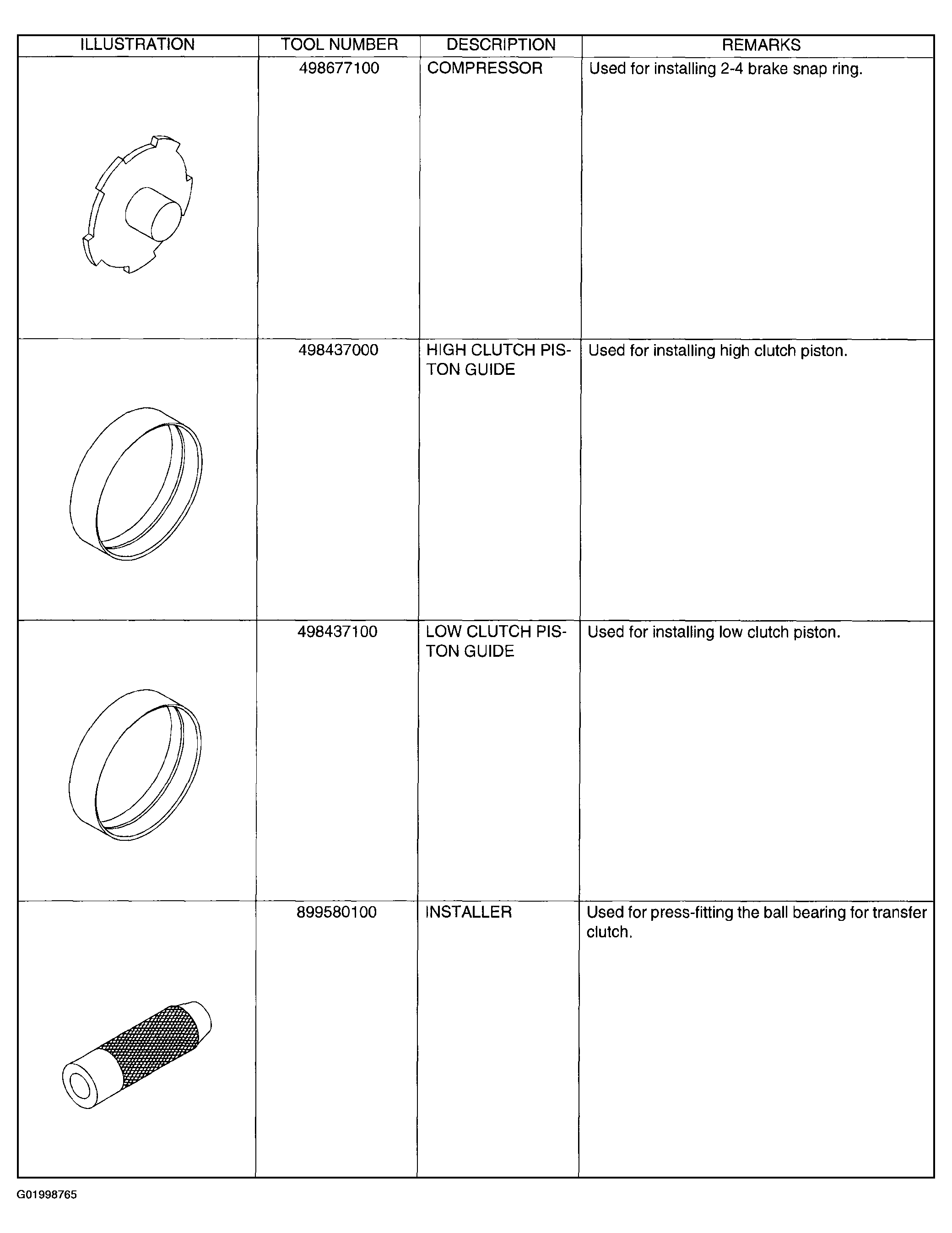

Fig 3: Identifying Special Tools (3 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

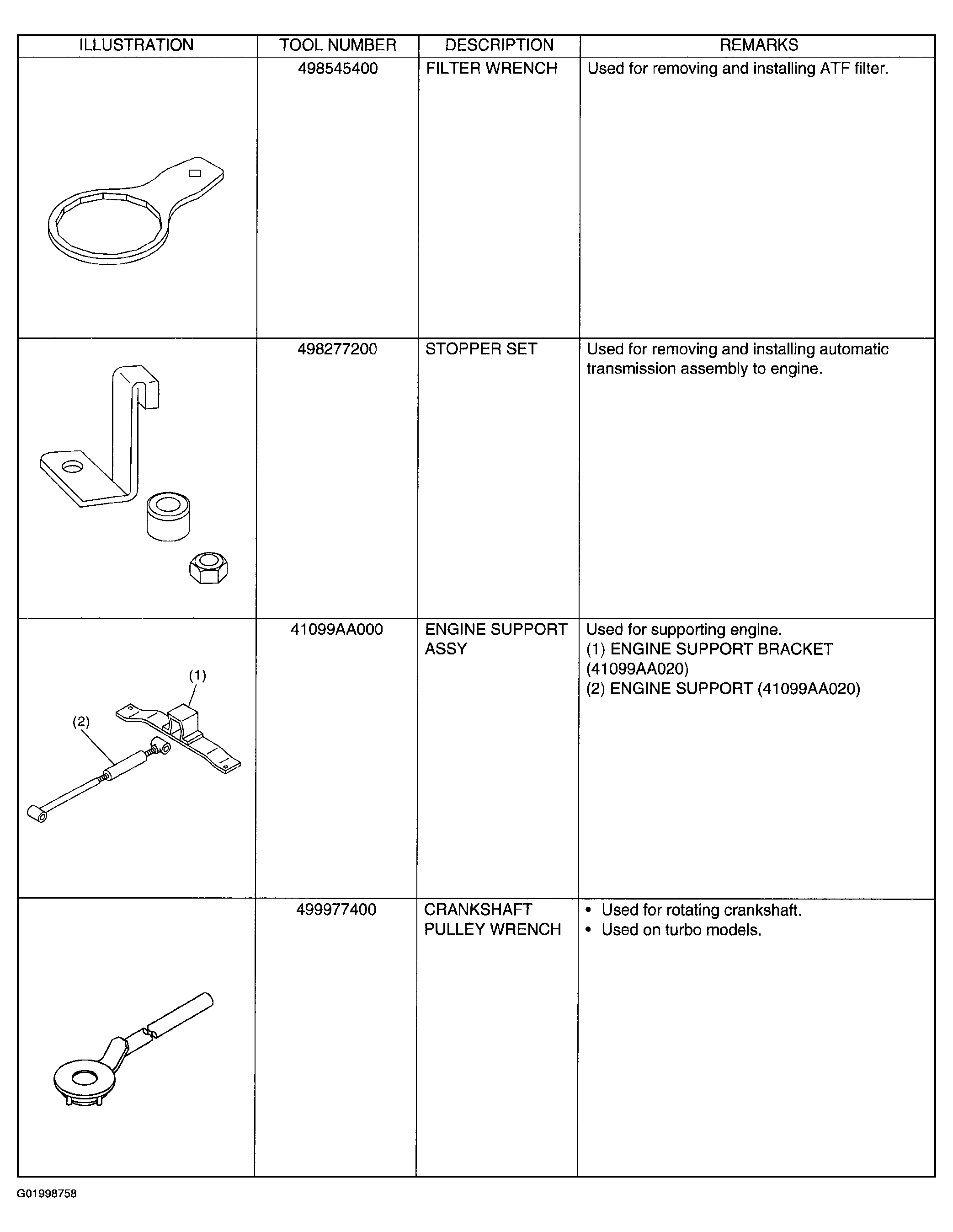

Fig 4: Identifying Special Tools (4 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

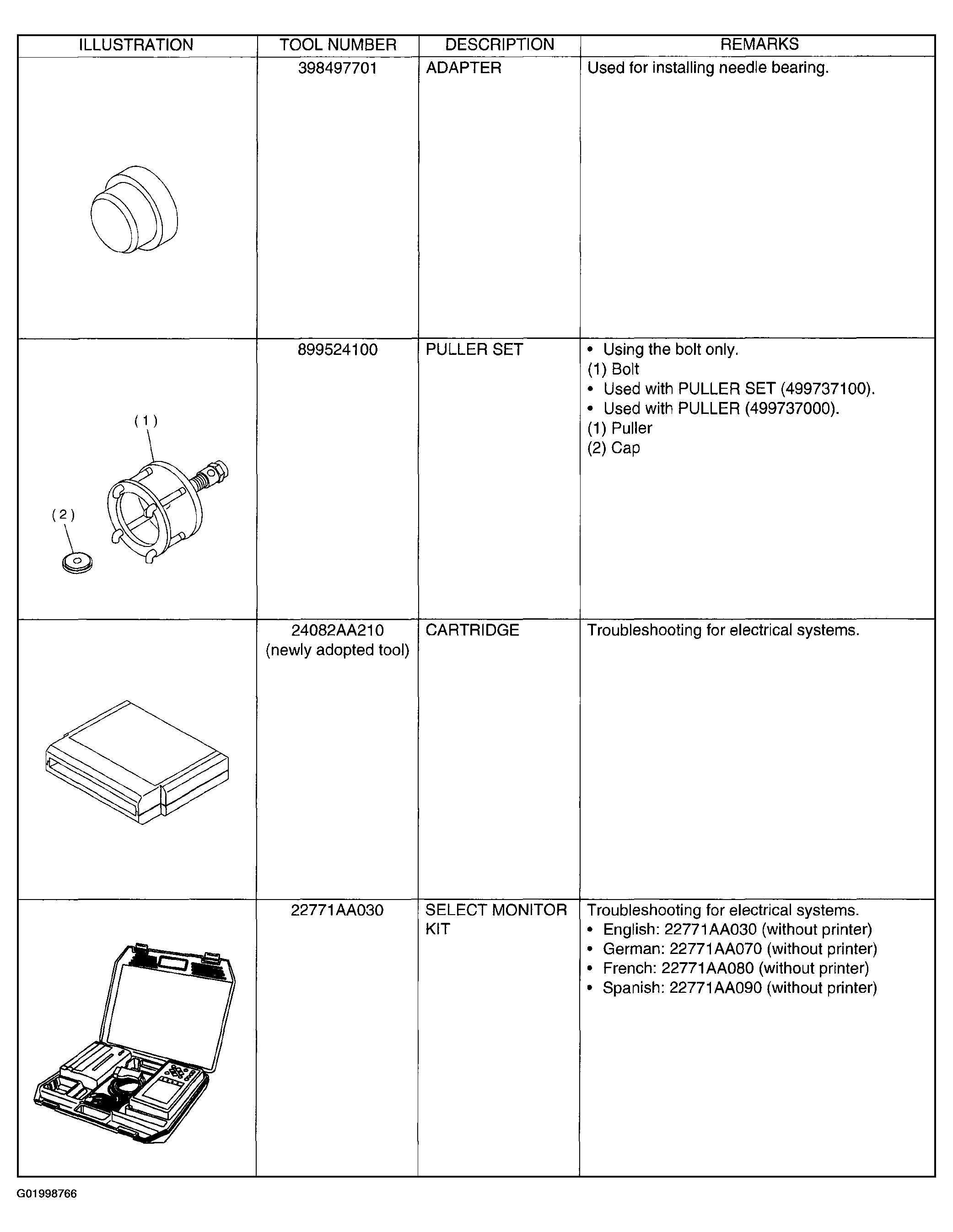

Fig 5: Identifying Special Tools (5 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

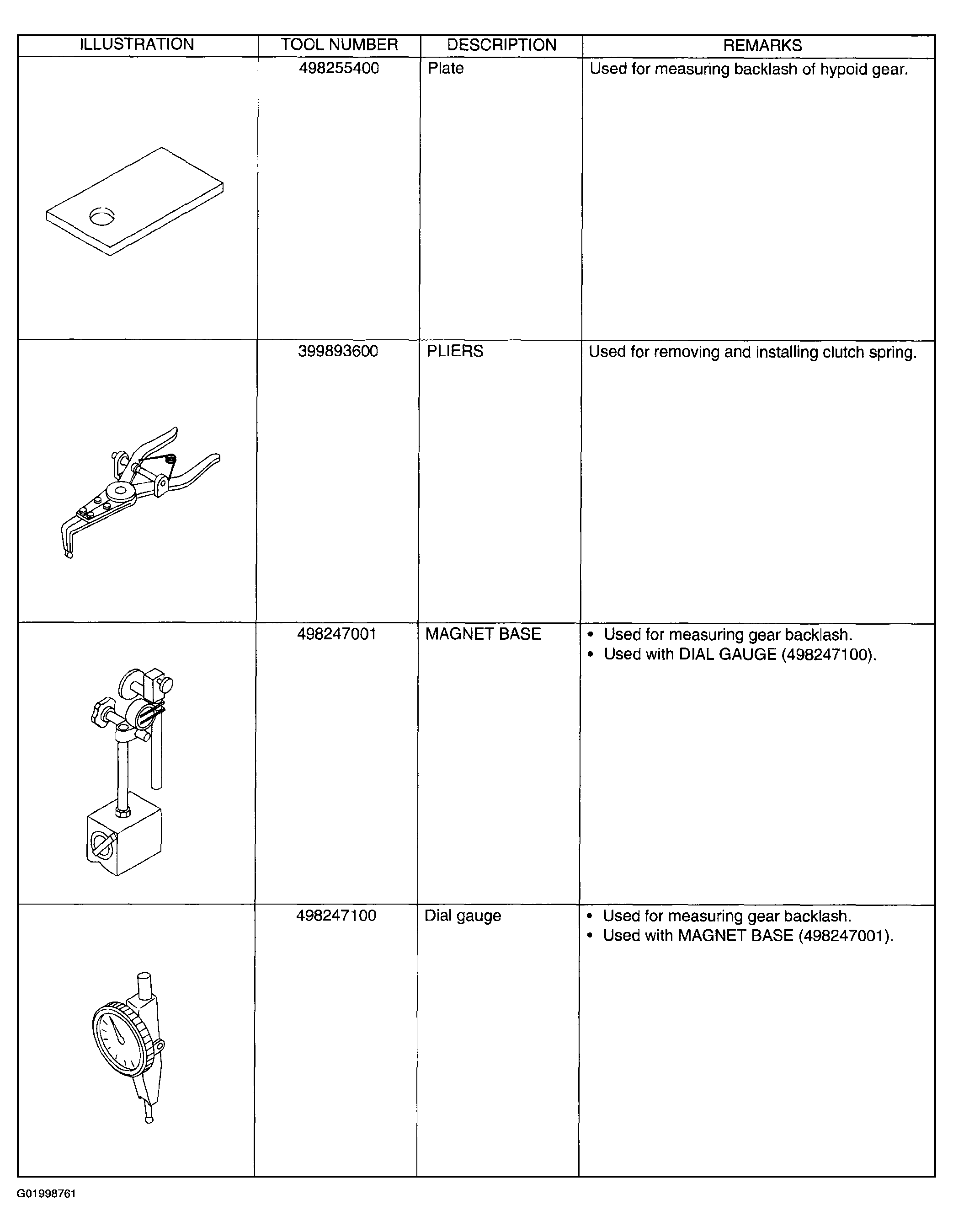

Fig 6: Identifying Special Tools (6 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

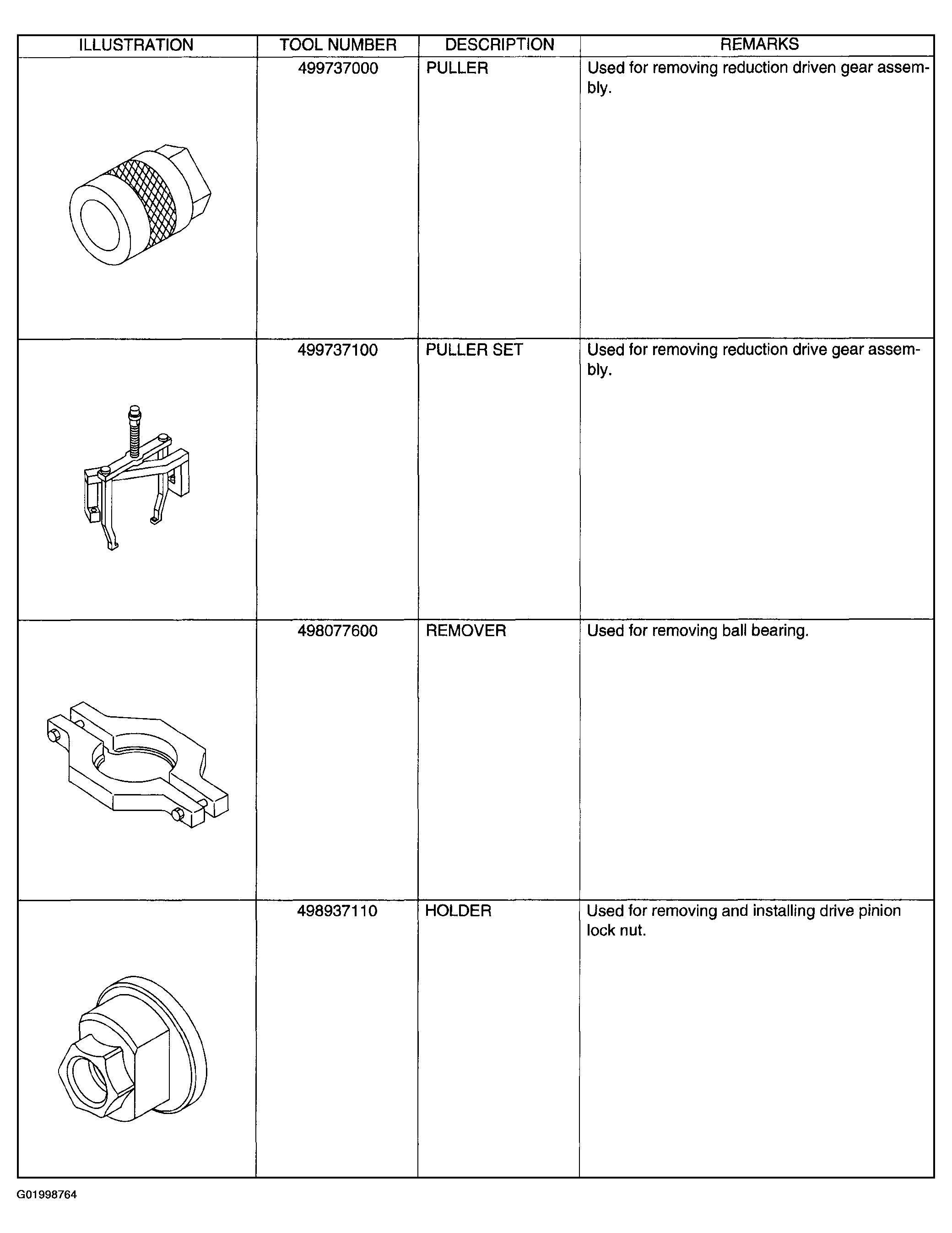

Fig 7: Identifying Special Tools (7 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Special Tools (8 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Special Tools (9 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Special Tools (10 Of 11)

Courtesy of SUBARU OF AMERICA, INC.

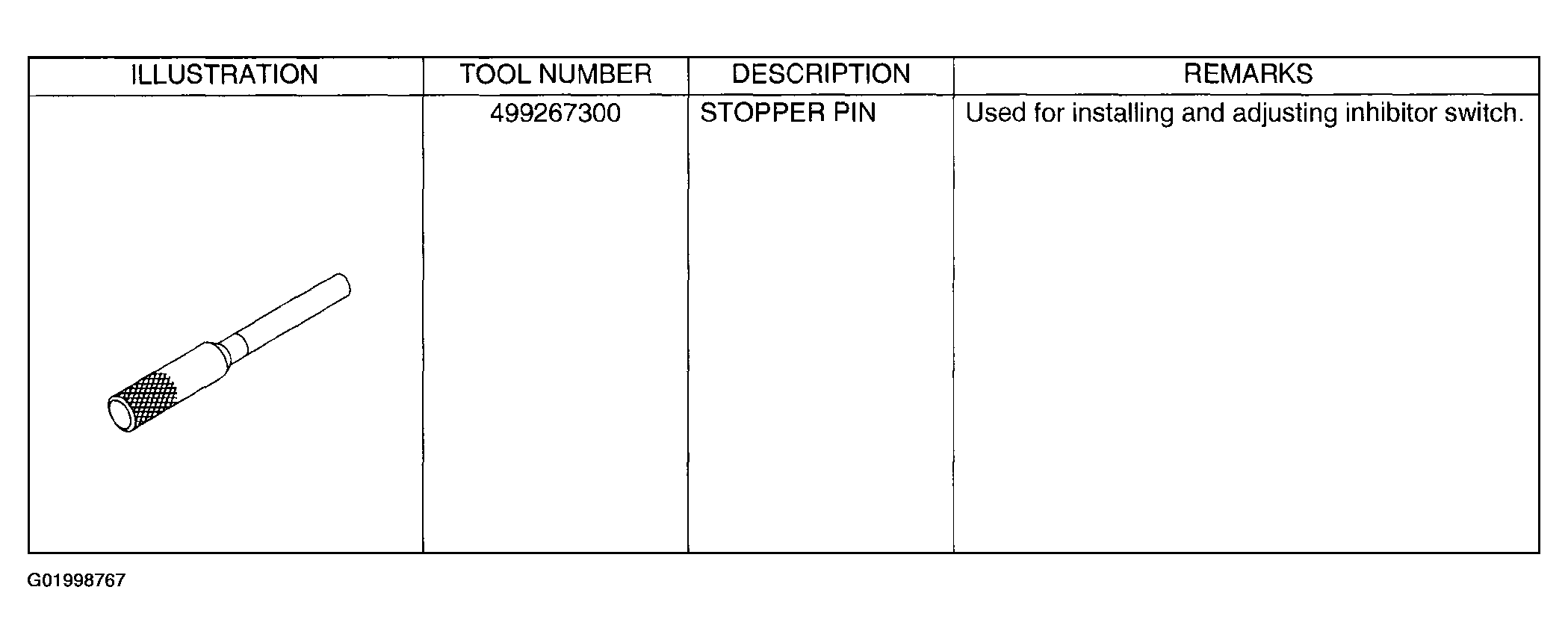

Fig 11: Identifying Special Tools (11 Of 11)

Courtesy of SUBARU OF AMERICA, INC.
