Universal Joint: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. < Ref. to REMOVAL <-- , Steering Wheel -->.>
  2. Make matching mark on the universal joint.
  3. Remove the universal joint bolts, and then remove the universal joint.

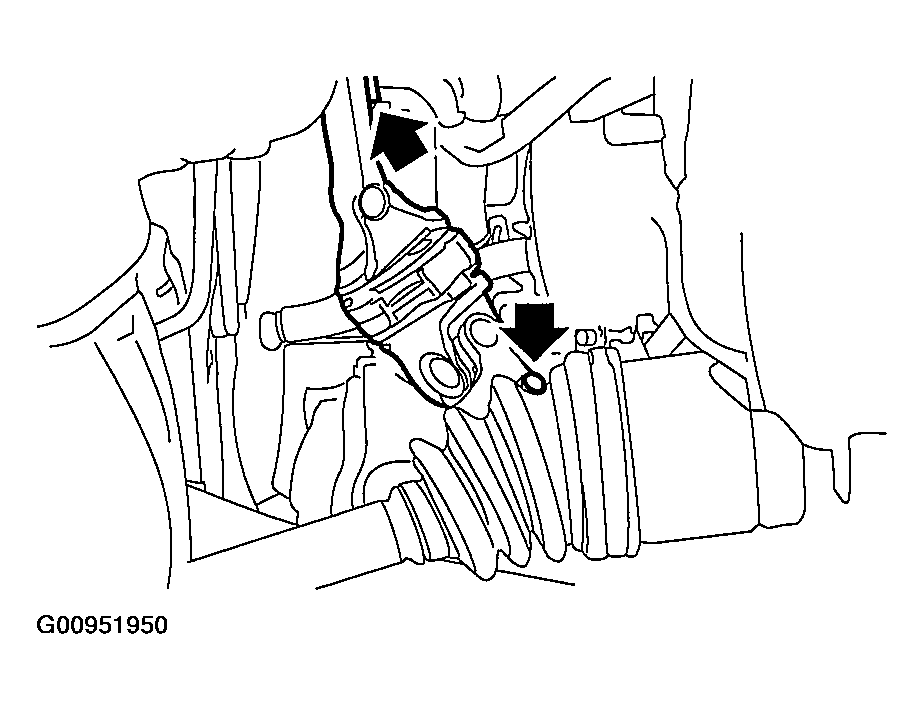

    Fig 1: Removing Universal Joint Bolts And Remove Universal Joint
    G00951950Courtesy of SUBARU OF AMERICA, INC.
