Radiator Main Fan System: Inspection

TROUBLE SYMPTOM:

Radiator main fan does not rotate in low speed under the following conditions:

1. Coolant temperature 95°C (203°F) or more.
2. A/C switch set to OFF.

• Radiator main fan does not rotate in middle speed under the following conditions:
  1. Coolant temperature 94°C (201°F) or less.
  2. A/C switch set to ON and A/C temperature at the lowest position.
• Radiator main fan does not rotate in high speed under the following conditions:
  1. Coolant temperature 95°C (203°F) or more.
  2. A/C switch set to ON and A/C temperature at the lowest position.

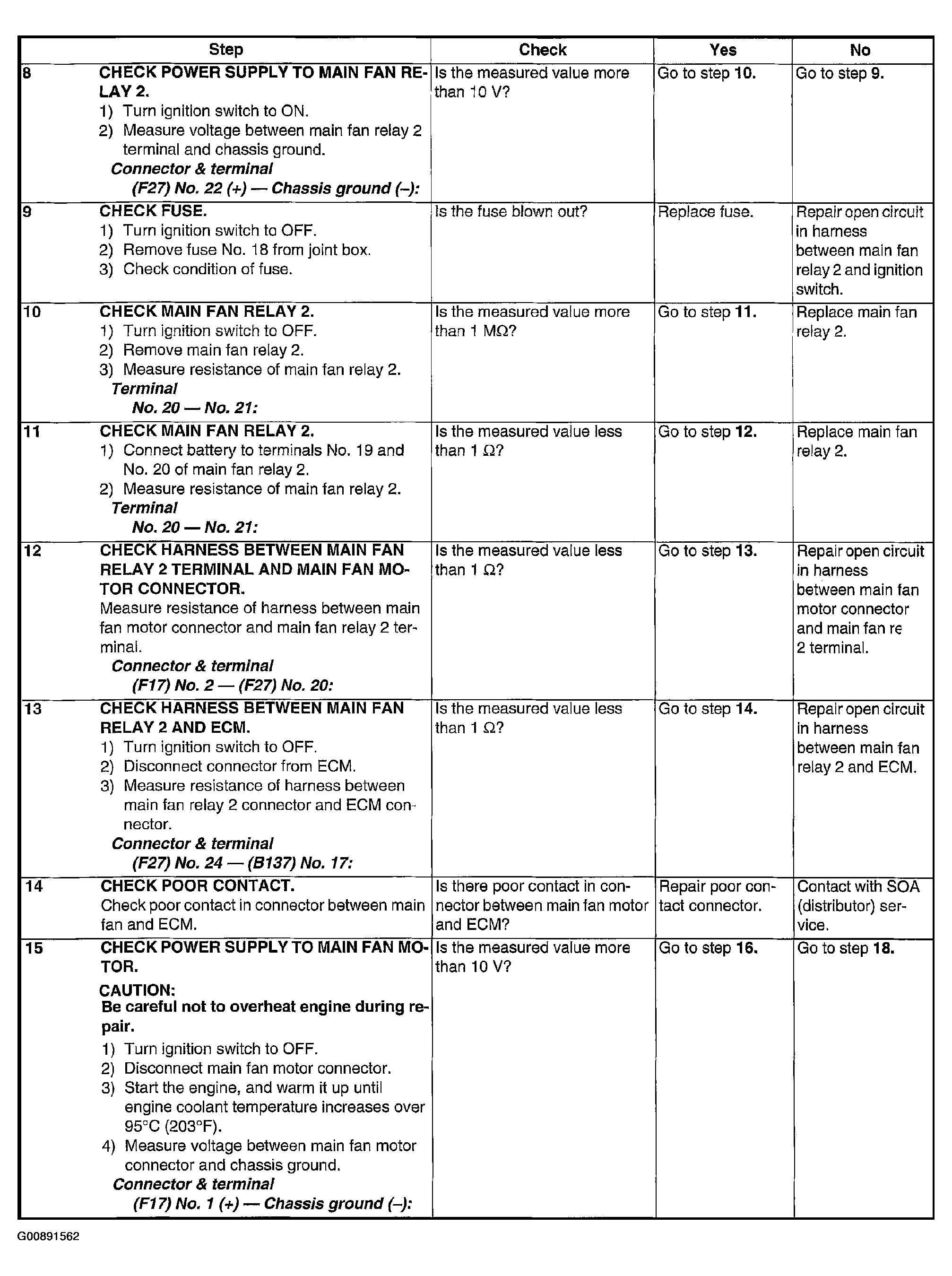

Fig 1: Check Sheet (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

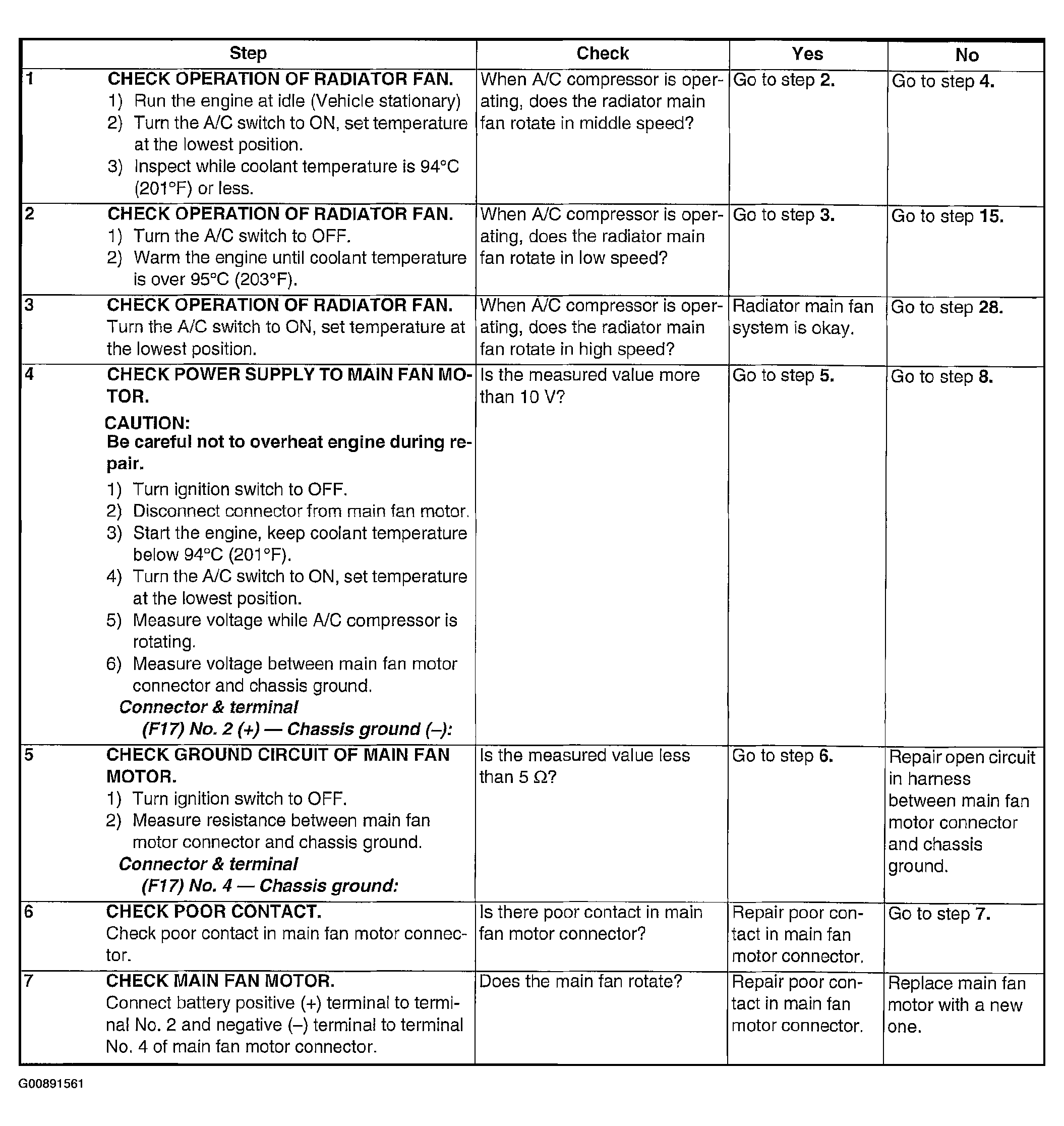

Fig 2: Check Sheet (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

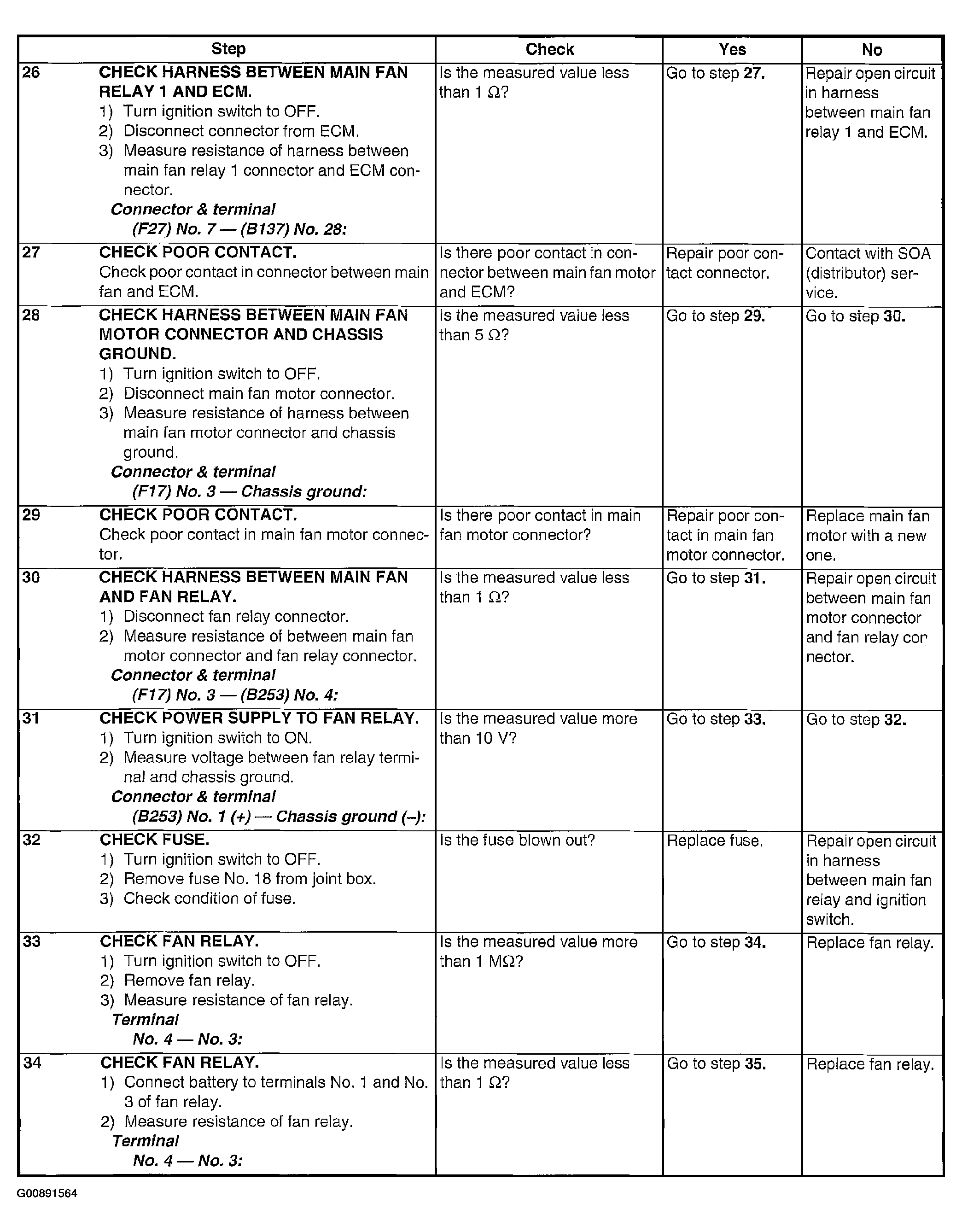

Fig 3: Check Sheet (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

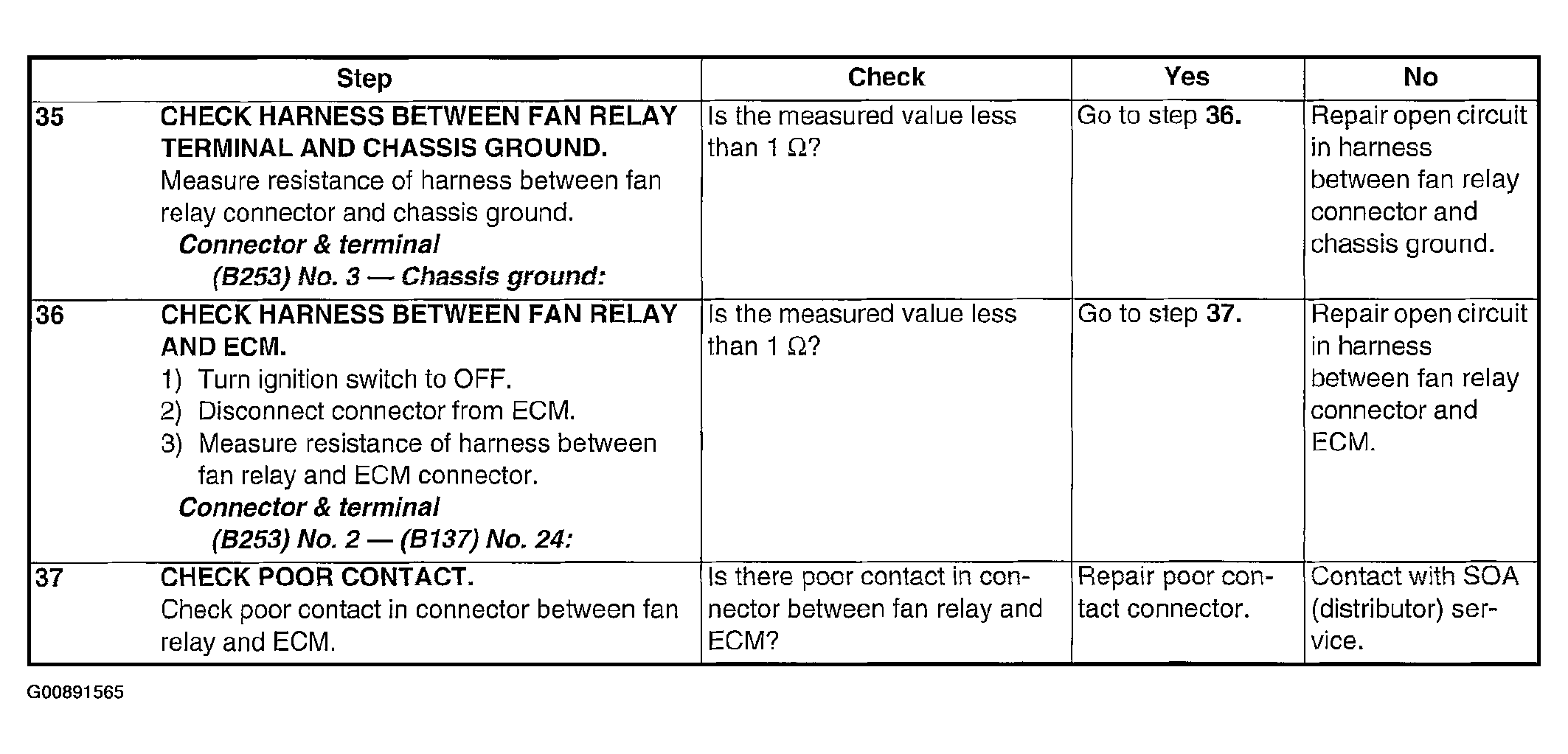

Fig 4: Check Sheet (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

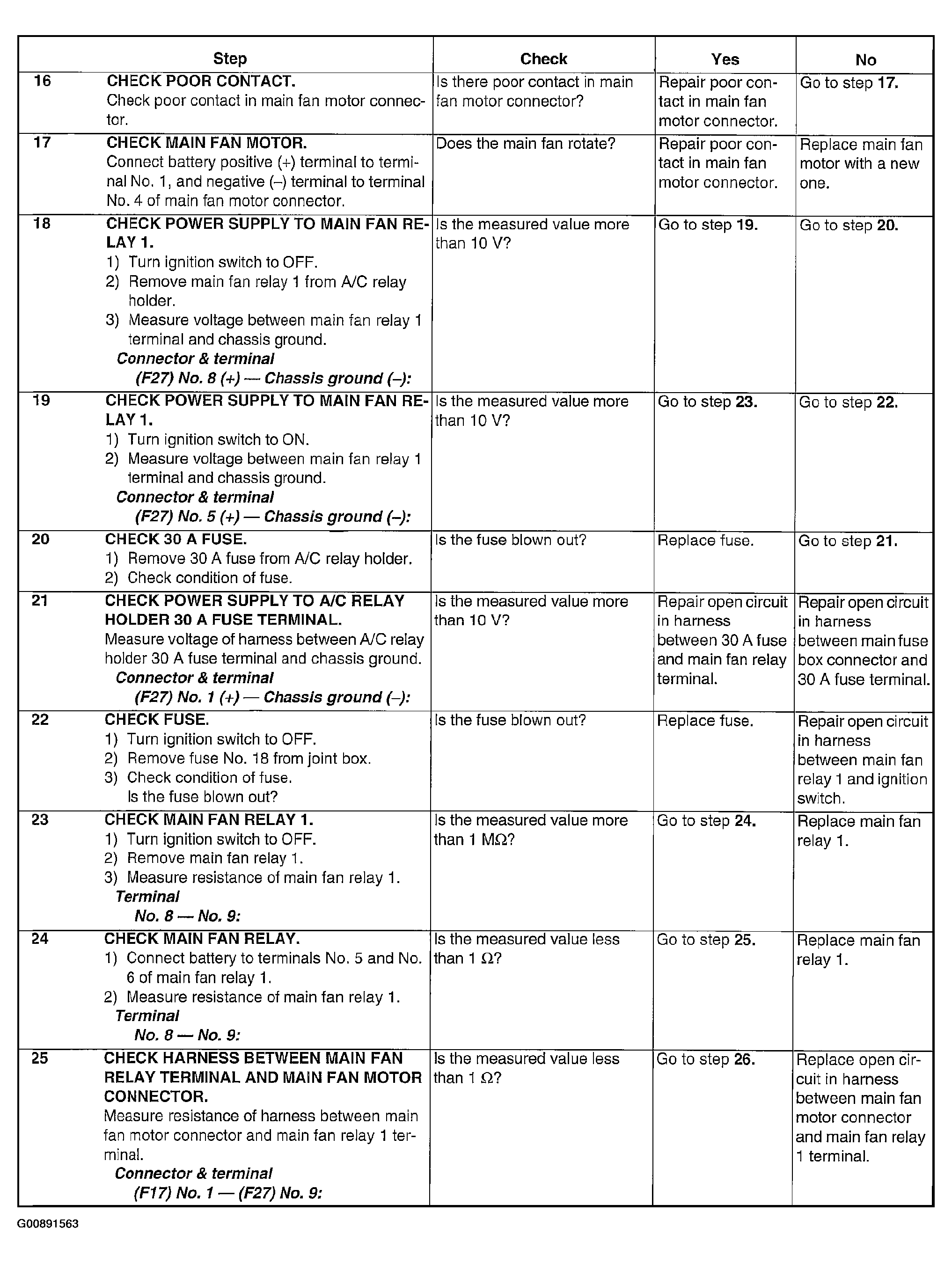

Fig 5: Check Sheet (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
