CROSSMEMBER And Cushion Rubber

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear cushion rubber.
1. Tightening torque: 39 N.m (4.0 kgf-m, 29 ft-lb)
Install the crossmember.
Tightening torque:
1. T1: 35 N.m (3.6 kgf-m, 26 ft-lb)
2. T2: 75 N.m (7.6 kgf-m, 55 ft-lb)

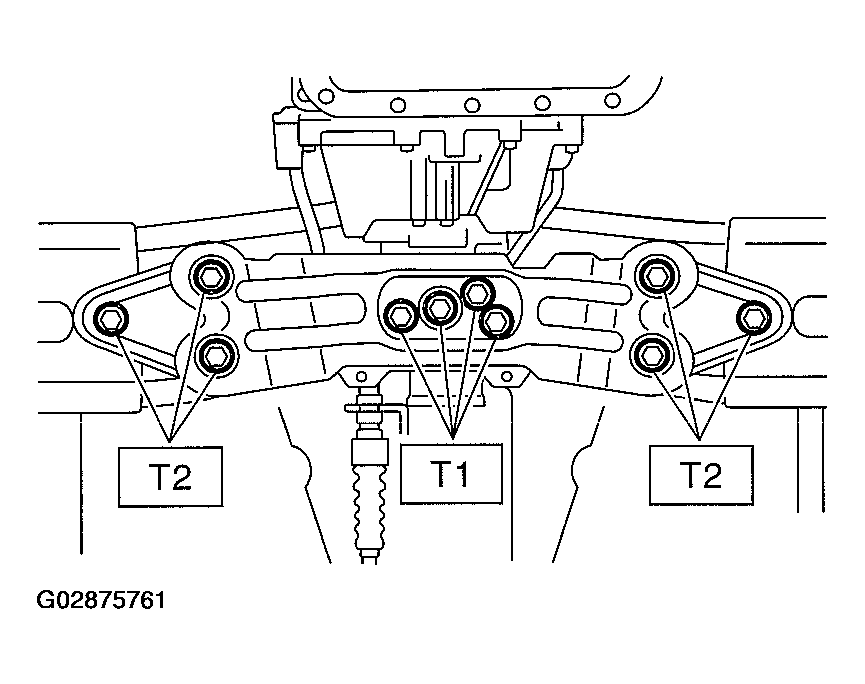

  Fig 1: Installing Crossmember
  Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission jack.
Install the heat shield cover.
Install the front, center, rear exhaust pipes and the muffler.
2.5 L model
1. < Ref. to INSTALLATION , Front Exhaust Pipe>, <Ref. to INSTALLATION , Rear Exhaust Pipe> and < Ref. to INSTALLATION , Muffler.>
3.0 L model
1. < Ref. to INSTALLATION , Front Exhaust Pipe>, < Ref. to INSTALLATION , Rear Exhaust Pipe> and < Ref. to INSTALLATION , Muffler.>
