Yaw Rate and Lateral G SENSOR: Removal

  1. Disconnect battery ground cable.

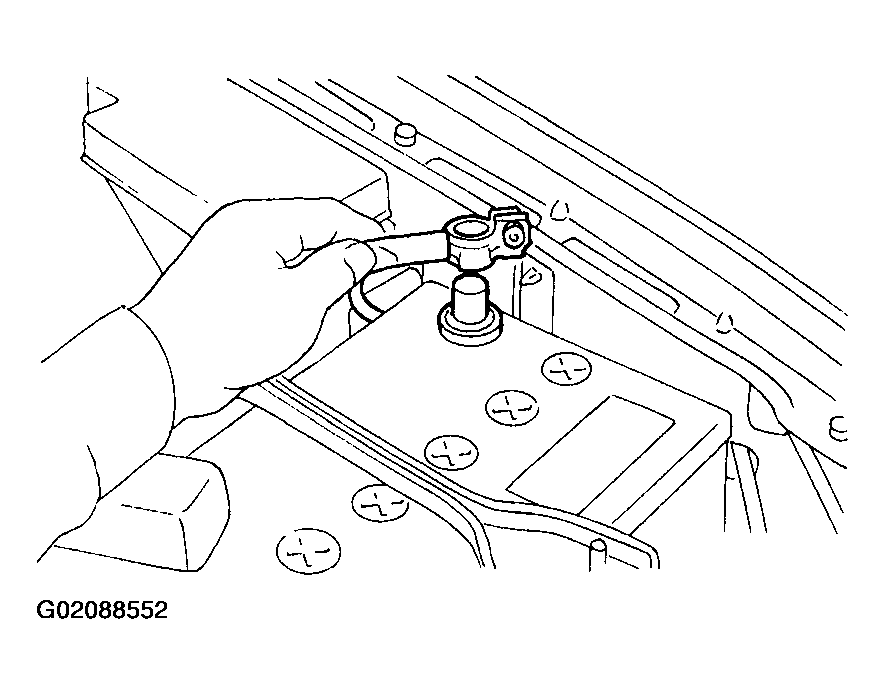

    Fig 1: Disconnecting Battery Ground Cable
    G02088552
  2. Remove console cover. See CONSOLE BOX .
  3. Disconnect connector from yaw rate and lateral G sensor.
  4. Remove yaw rate and lateral G sensor.
    CAUTION: Do not drop or bump yaw rate and lateral G sensor.

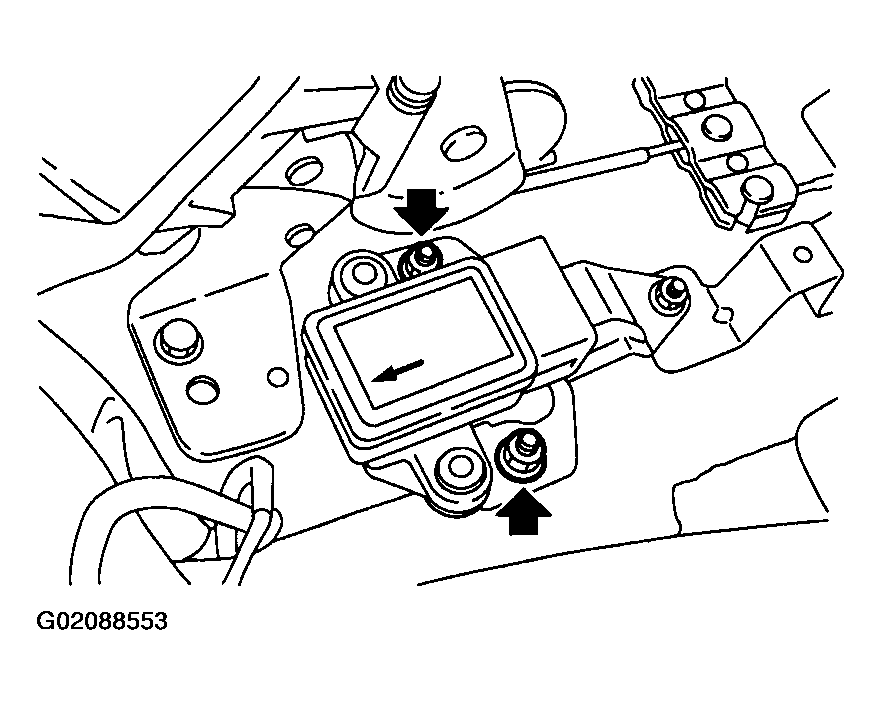

    Fig 2: Removing Yaw Rate & Lateral G Sensor
    G02088553
  5. Remove bracket from body.
    Fig 3: Removing Bracket
    G02088554
