Trouble Code 43 AEC Communication Line Malfunction: Wiring Diagram

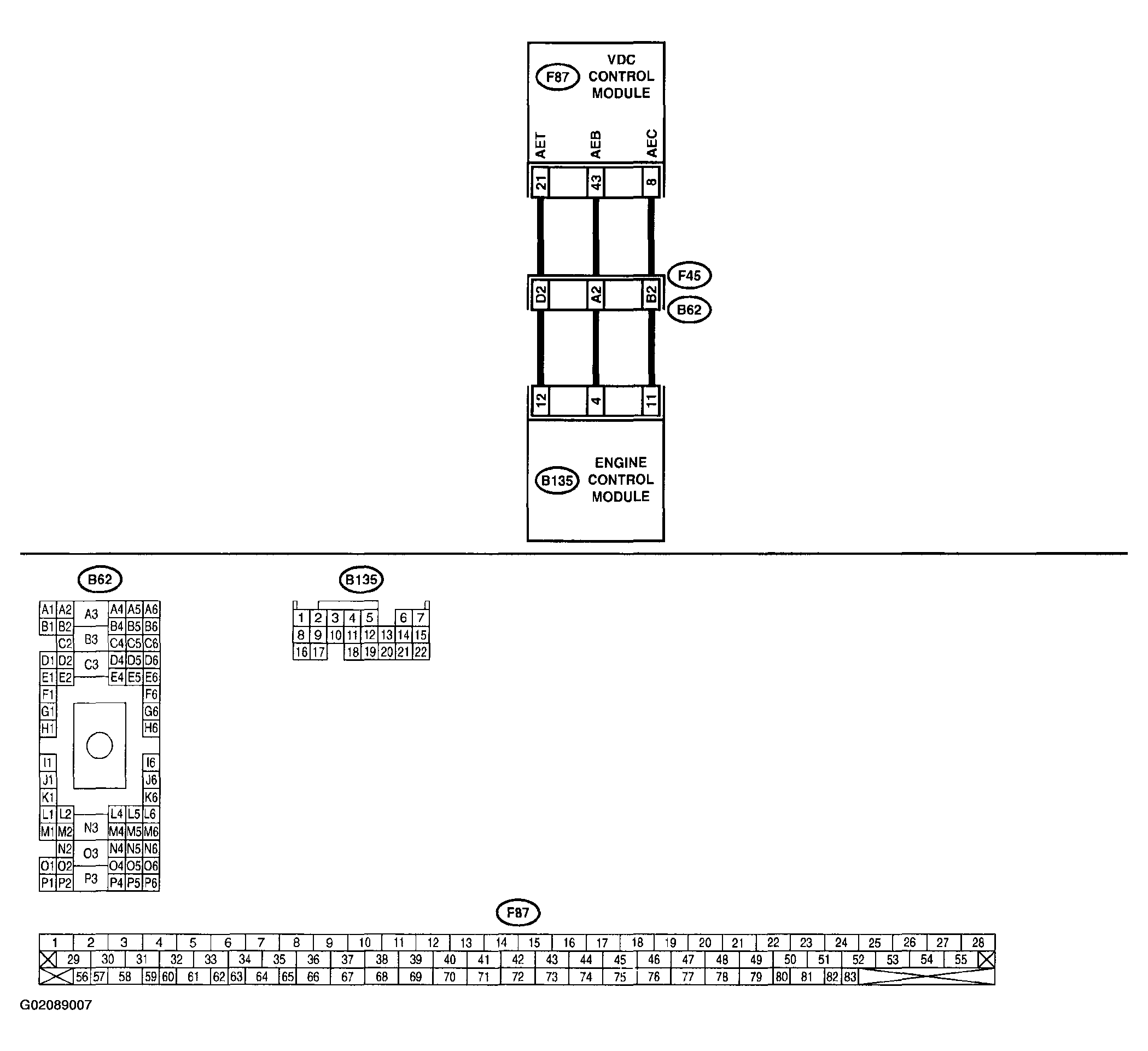

Fig 1: Wiring Diagram - Trouble Code 43 - With Select Monitor (AEC Communication Line Malfunction)
G02089007
