Diagnostic Chart

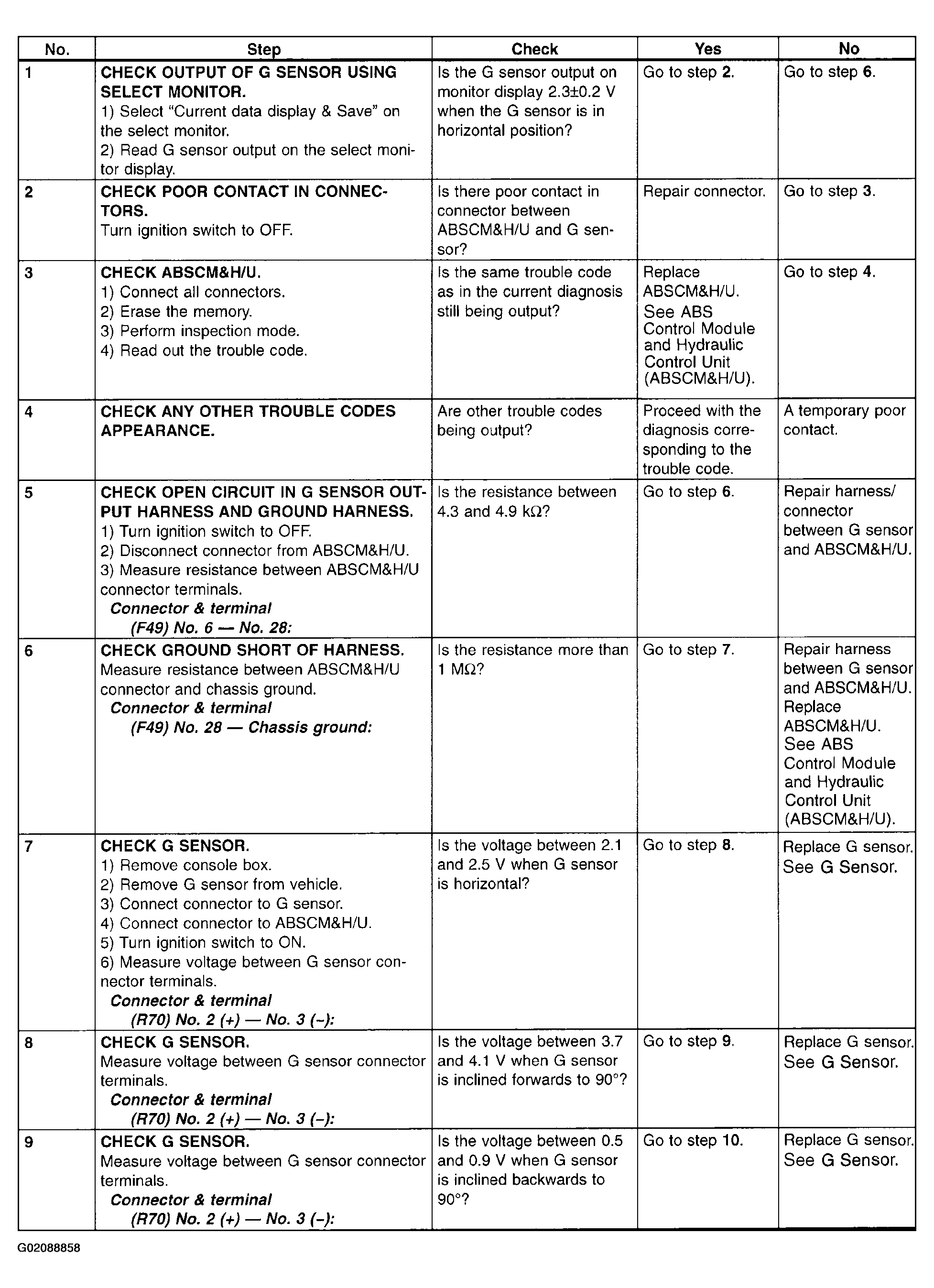

Fig 1: Trouble Code 56 - Abnormal G Sensor High Output - Diagnsotic Chart (1 Of 2)
G02088858

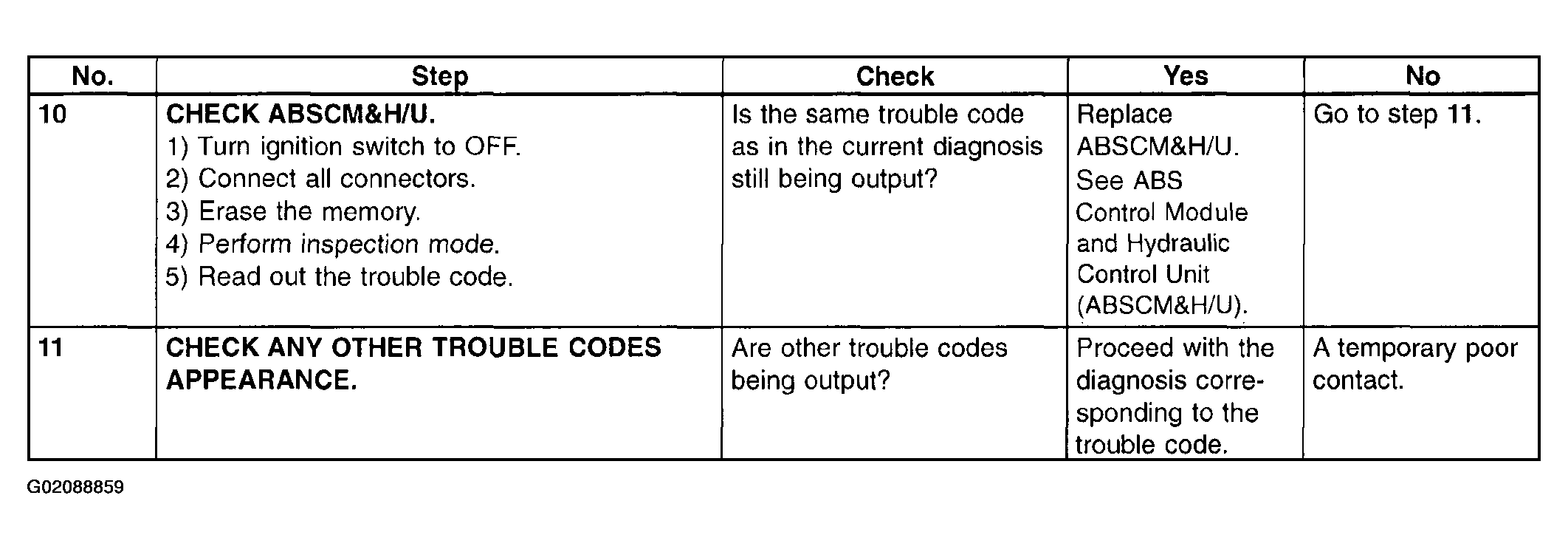

Fig 2: Trouble Code 56 - Abnormal G Sensor High Output - Diagnostic Chart (2 Of 2)
G02088859
