Code 79: Transfer Duty Solenoid: Trouble Symptom

Excessive "braking" in tight corners.

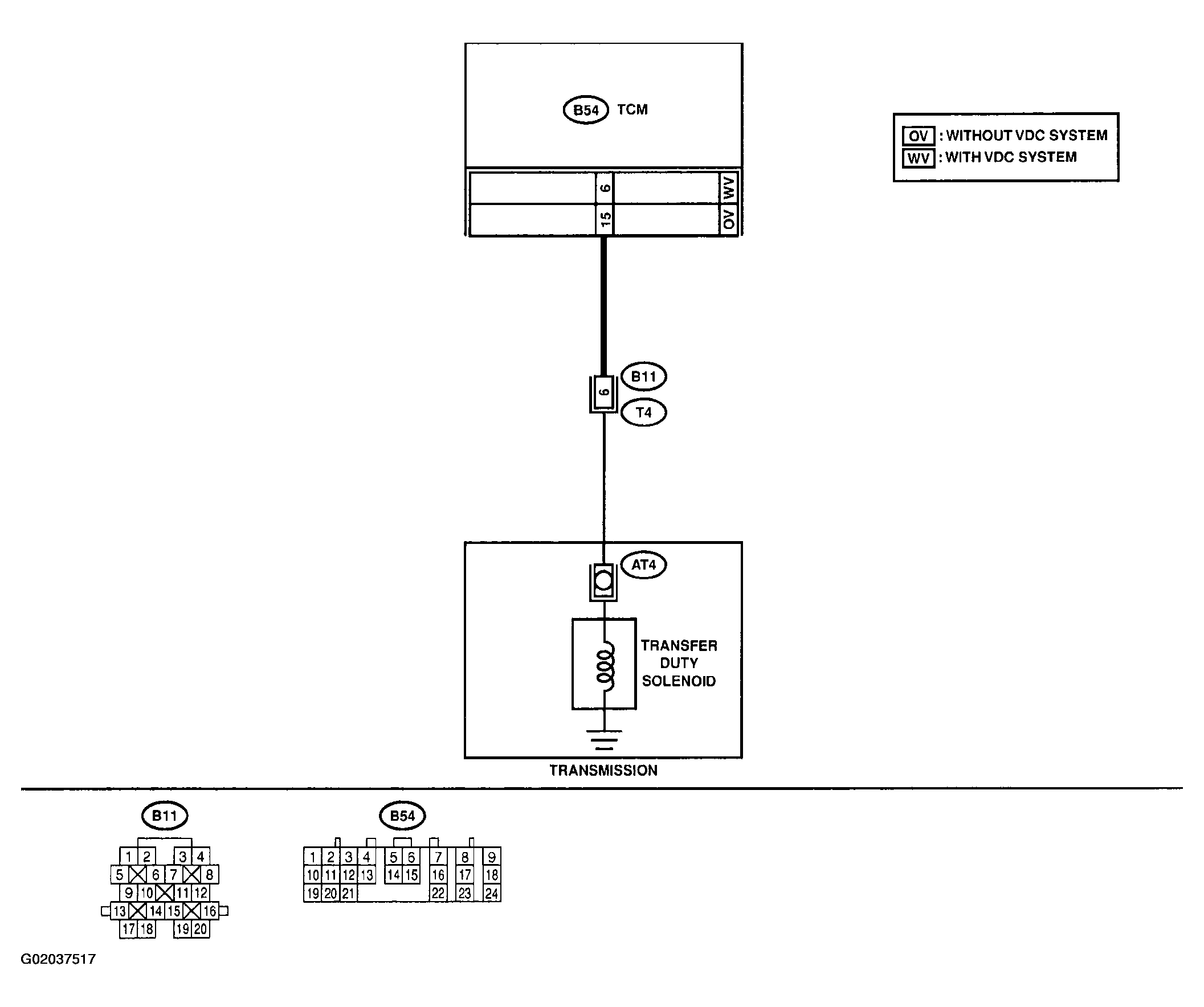

Fig 1: Trouble Code 79 - Transfer Duty Solenoid Wiring Diagram
G02037517

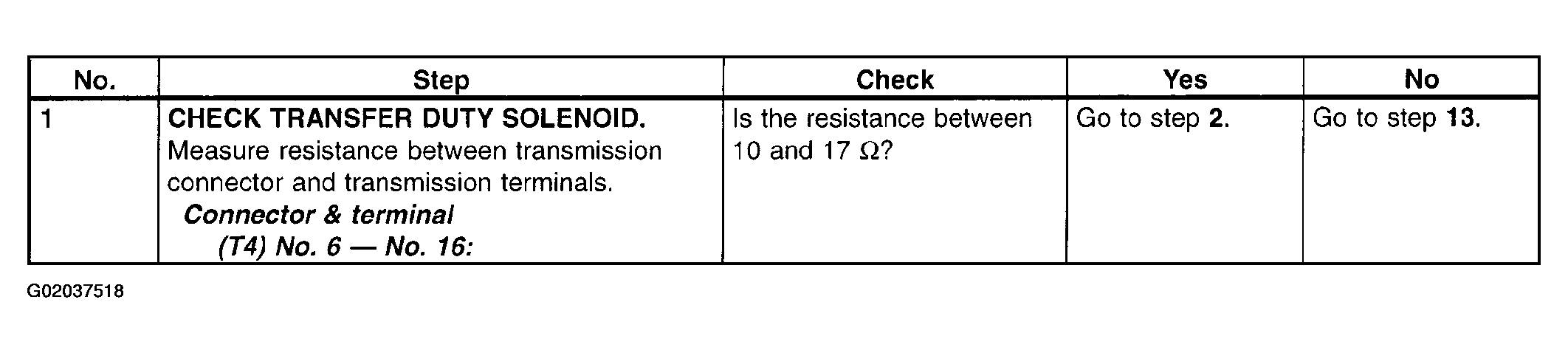

Fig 2: Trouble Code 79 - Diagnostic Chart (1 Of 4)
G02037518

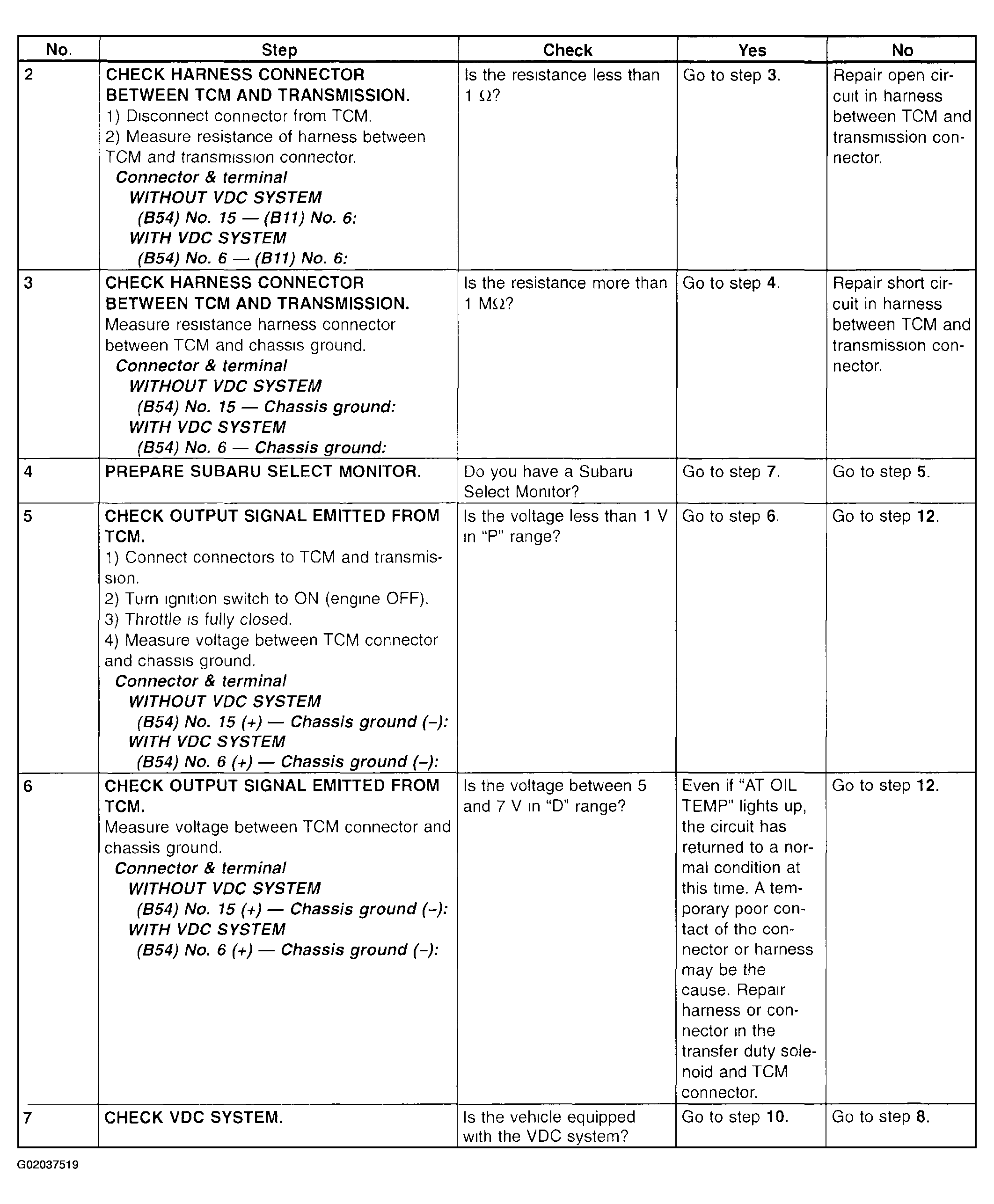

Fig 3: Trouble Code 79 - Diagnostic Chart (2 Of 4)
G02037519

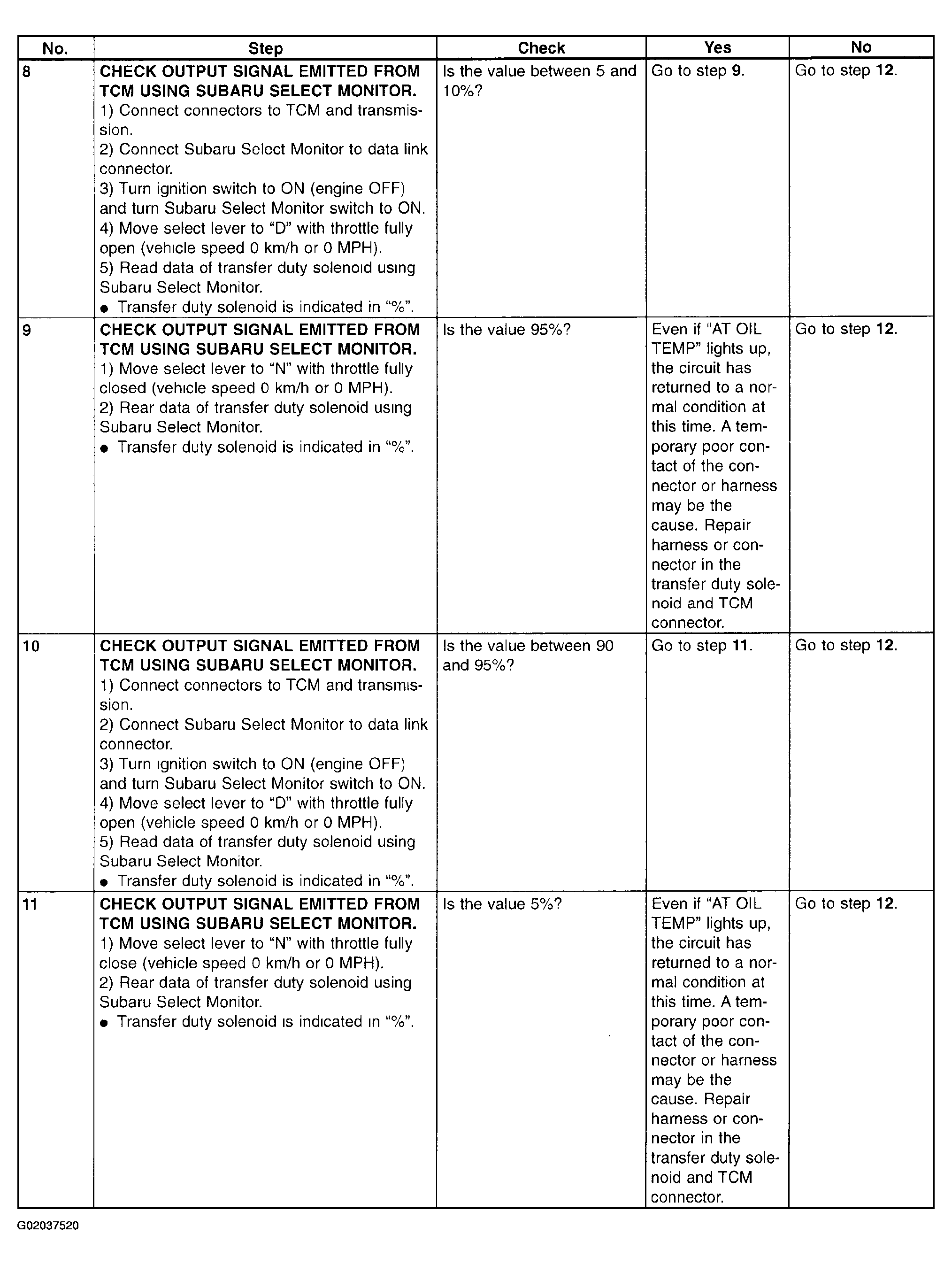

Fig 4: Trouble Code 79 - Diagnostic Chart (3 Of 4)
G02037520

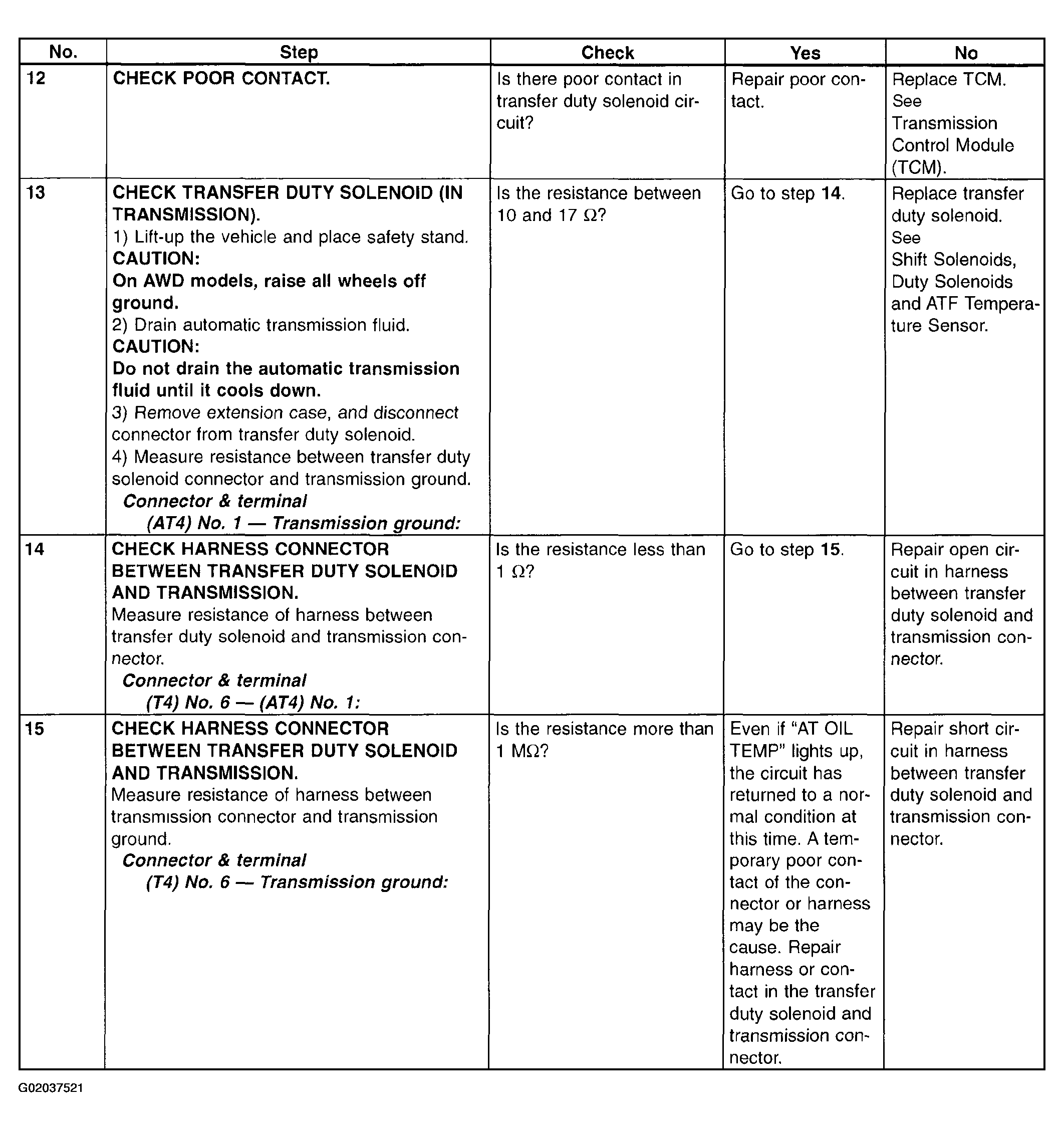

Fig 5: Trouble Code 79 - Diagnostic Chart (4 Of 4)
G02037521
