Section 7 (Starter 3.0L): Starter: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

  1. Tightening torque:  50 N-m (5.1 kgf-m, 37 ft-lb)

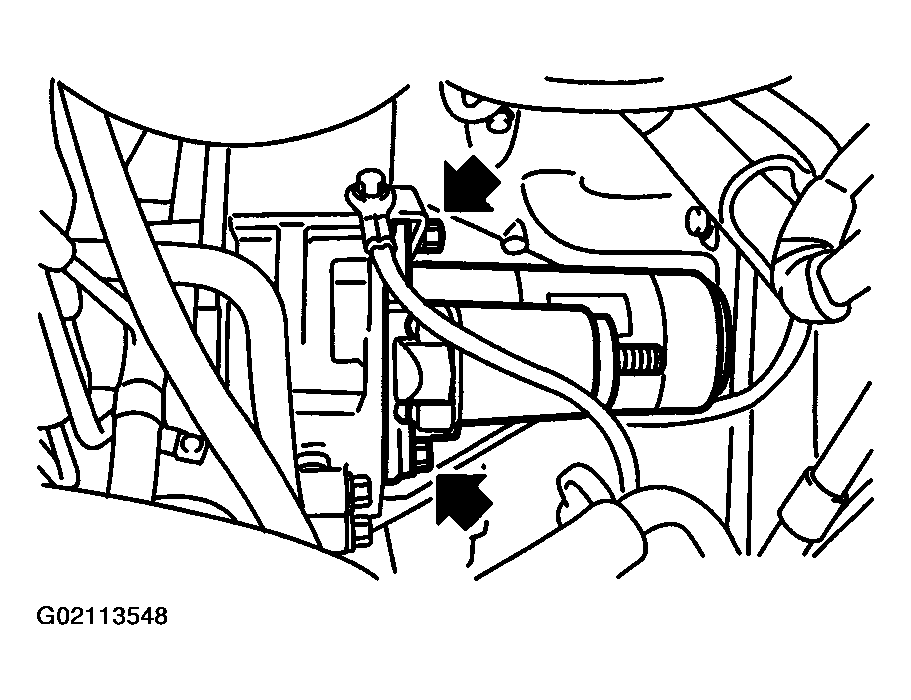

Fig 1: Installing Starter In Reverse Order Of Removal
G02113548
