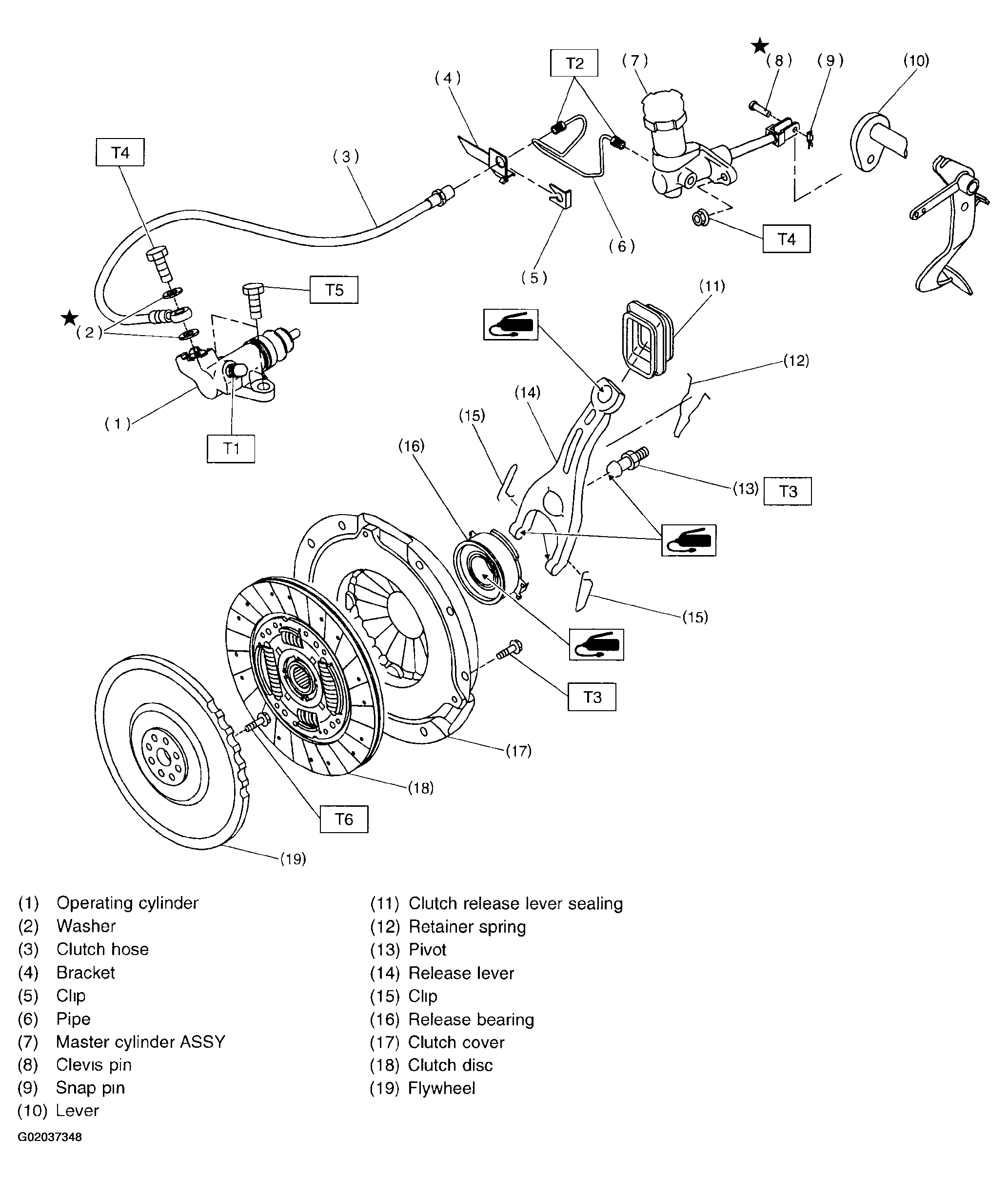

Clutch System
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N-m (kgf-m, ft-lb)
- T1:
8 (0.8, 5.8)
- T2:
15 (1.5, 11.0)
- T3:
15.7 (1.6, 11.6)
- T4:
18 (1.8, 13.0)
- T5:
37 (3.8, 27.5)
- T6:
72 (7.3, 52.8)
