General Diagnostic Table: Inspection: Clutch

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

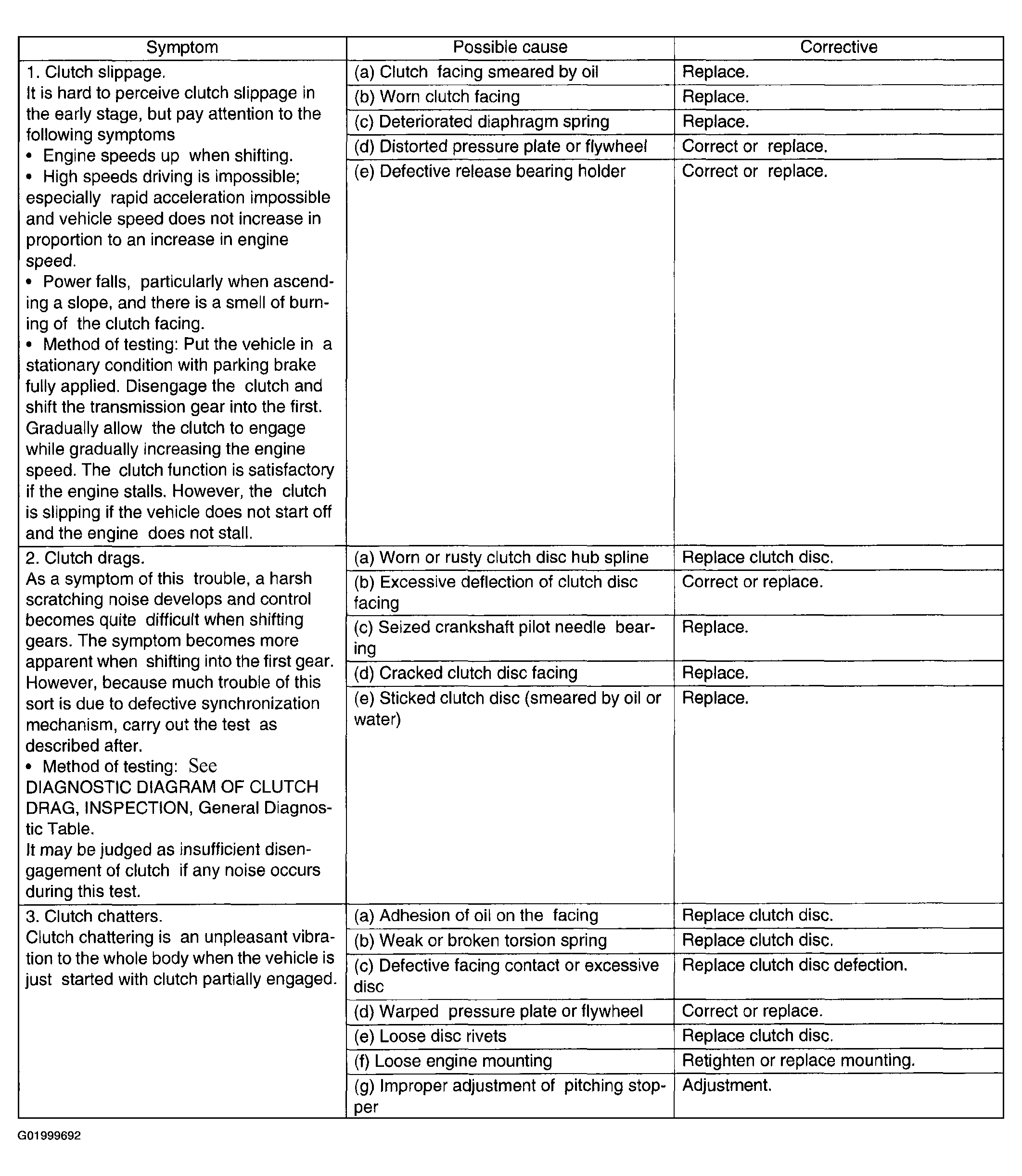

Fig 1: Clutch General Diagnostic Chart (1 Of 2)
G01999692Courtesy of SUBARU OF AMERICA, INC.

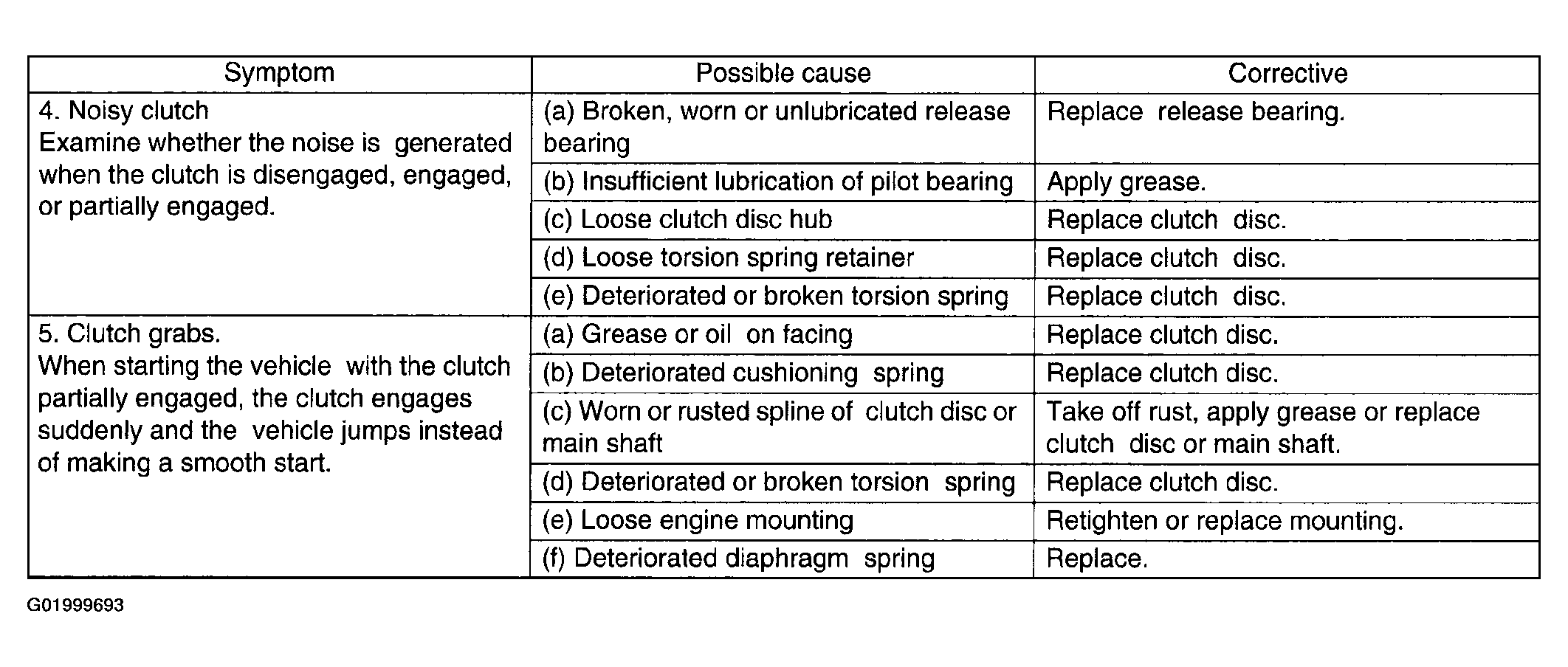

Fig 2: Clutch General Diagnostic Chart (2 Of 2)
G01999693Courtesy of SUBARU OF AMERICA, INC.
