Side Retainer

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.

    ST 499797000 INSTALLER

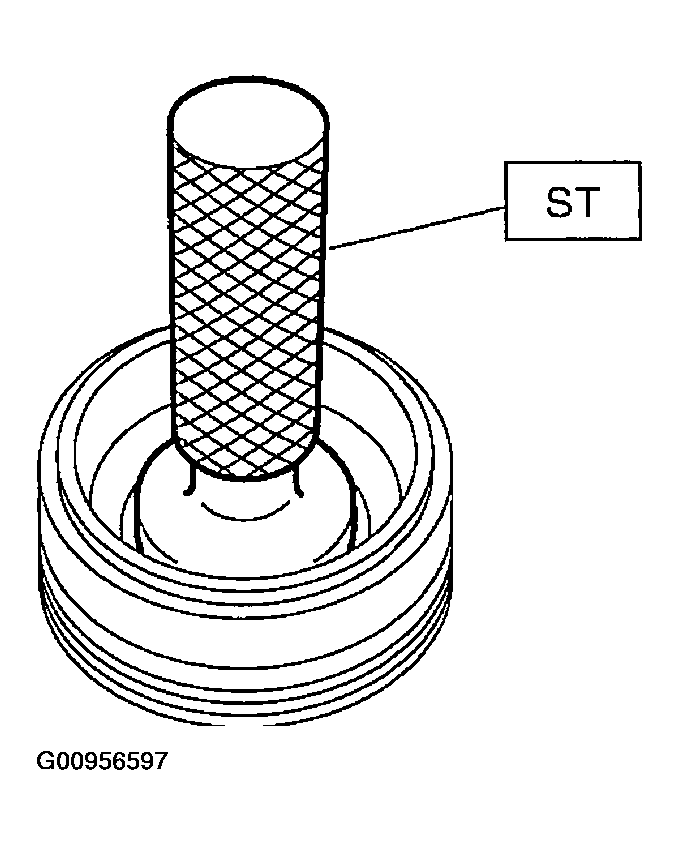

    Fig 1: Installing Bearing Outer Race To Side Retainer
    G00956597Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.
    Fig 2: Installing O-Ring
    G00956598Courtesy of SUBARU OF AMERICA, INC.
