License Plate Light: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove license plate light mounting screw (A) and then remove the lens (B)
    Fig 1: Removing License Plate Light Mounting Screw (Sedan)
    G02872829Courtesy of SUBARU OF AMERICA, INC.

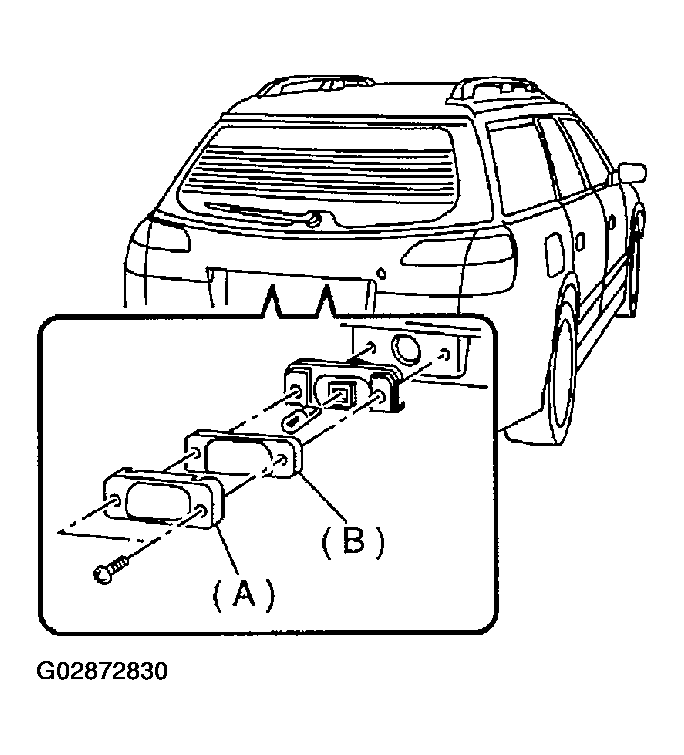

    Fig 2: Removing License Plate Light Mounting Screw (Wagon)
    G02872830Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bulb.
