General Diagnostic Table: Inspection

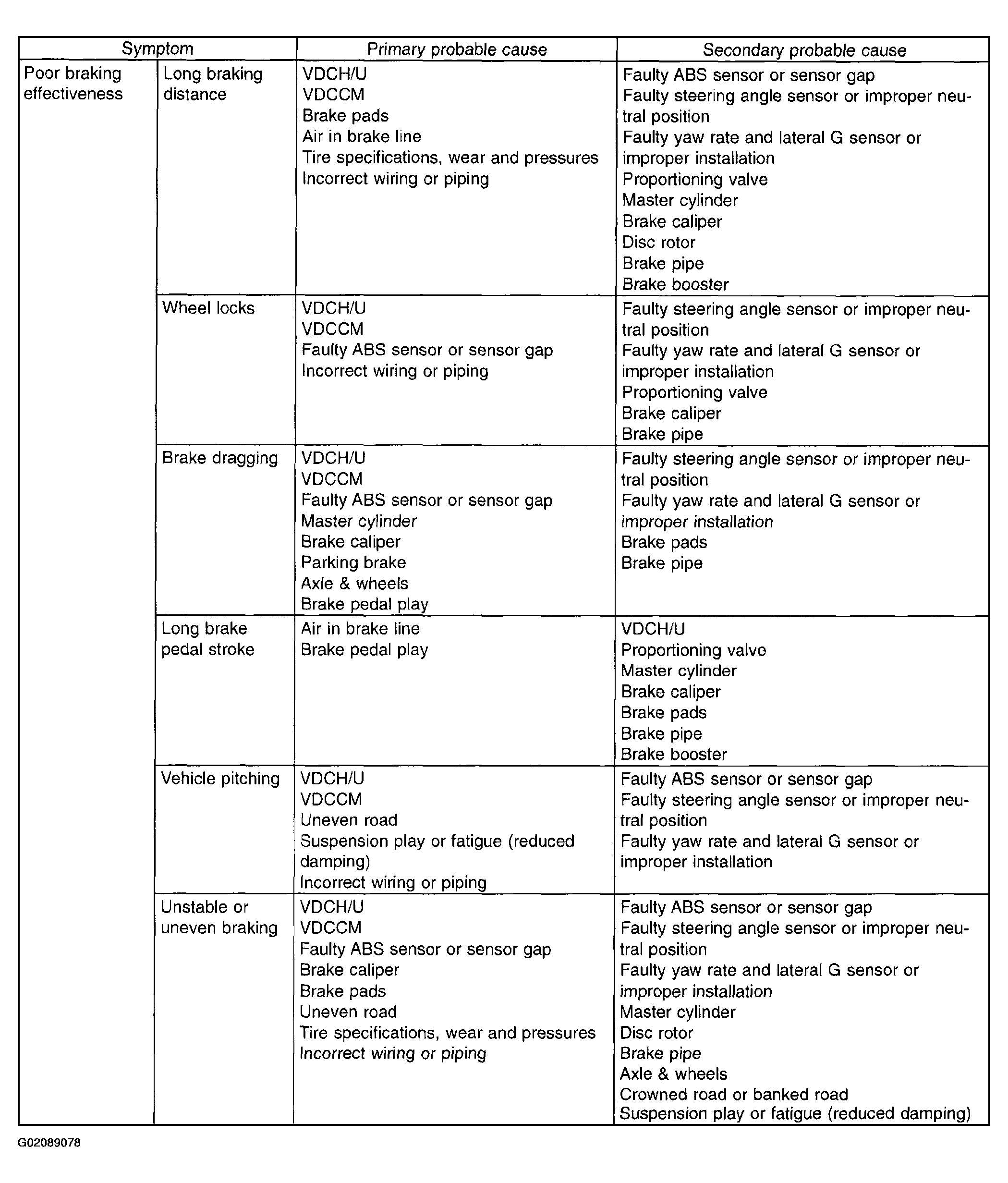

Fig 1: General Diagnostic Chart (1 Of 3)
G02089078

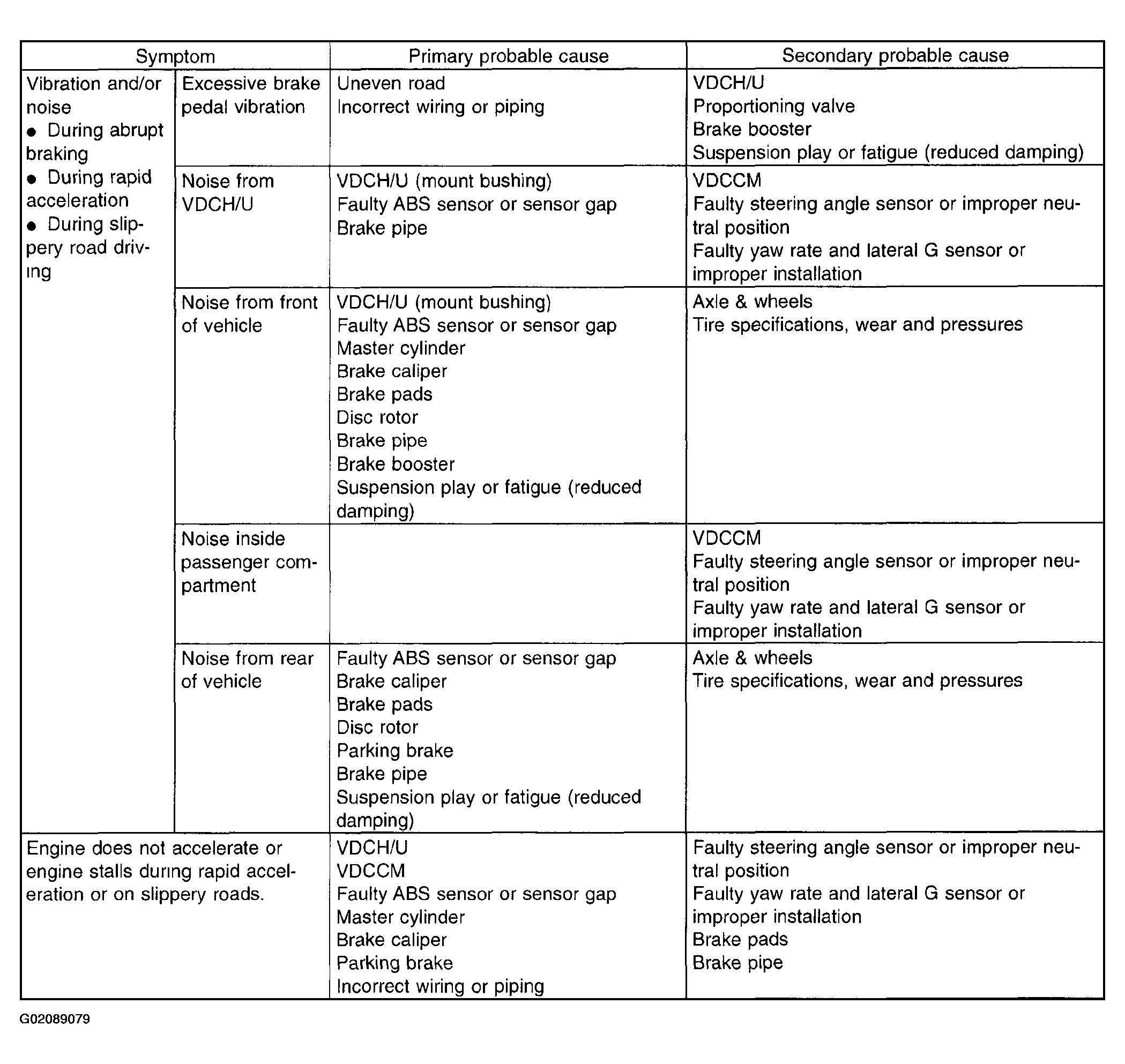

Fig 2: General Diagnostic Chart (2 Of 3)
G02089079

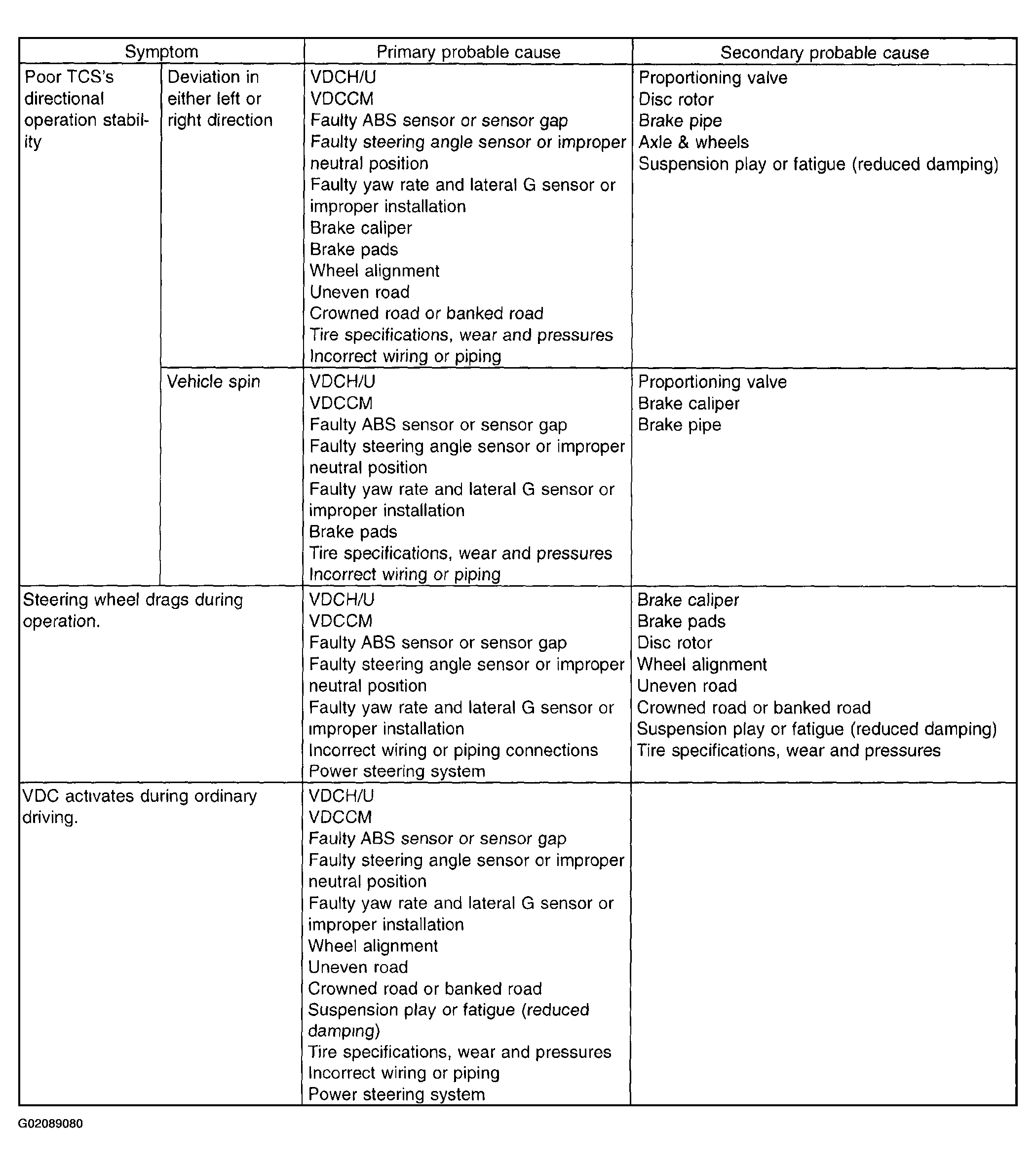

Fig 3: General Diagnostic Chart (3 Of 3)
G02089080
