Trouble Code 72 Abnormal Yaw Rate Sensor Output
>>
Diagnostic Chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Chart

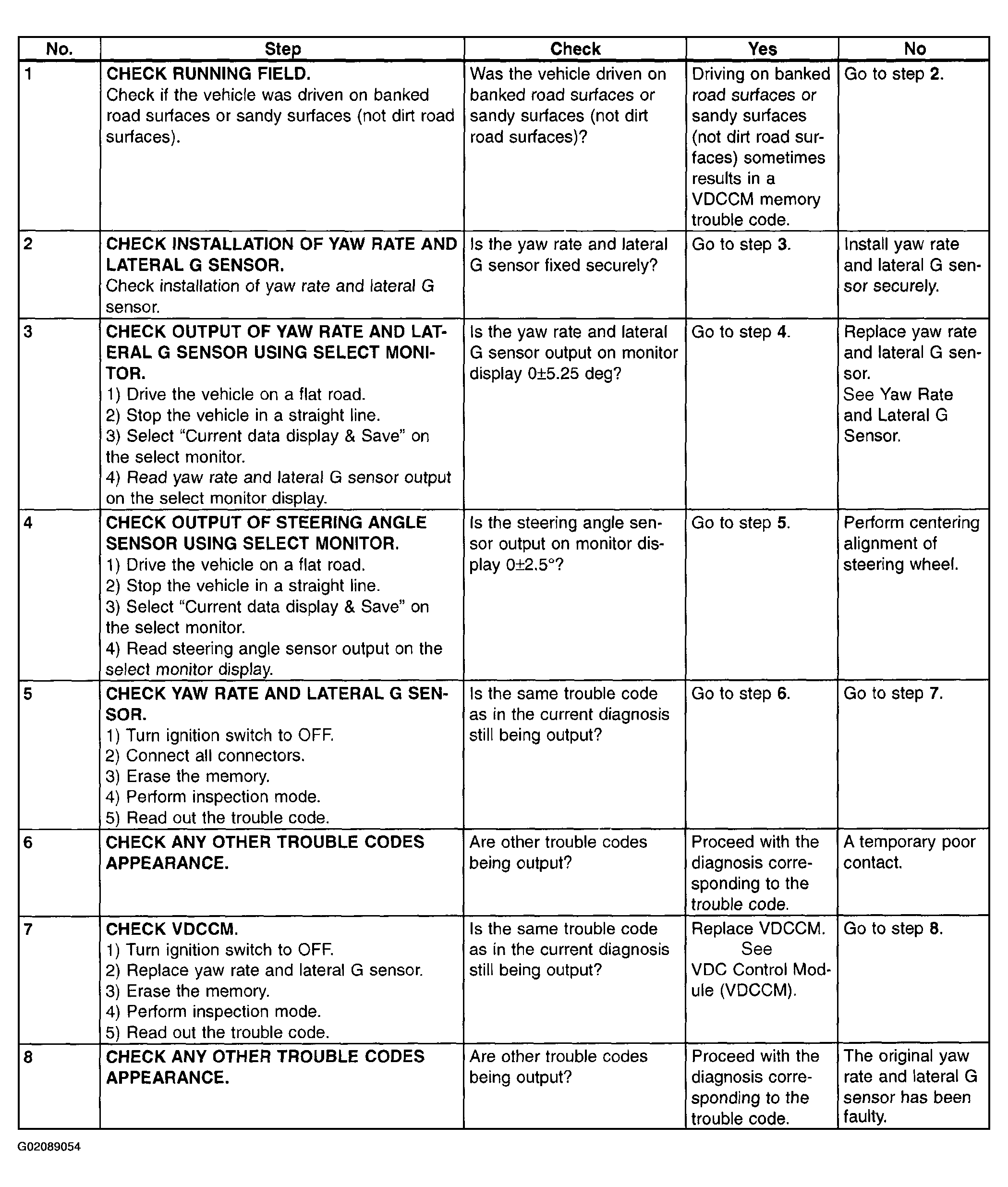

Fig 1: Diagnostic Chart - Trouble Code 72 - With Select Monitor (Abnormal Yaw Rate Sensor Output)
