Diagnostic Chart

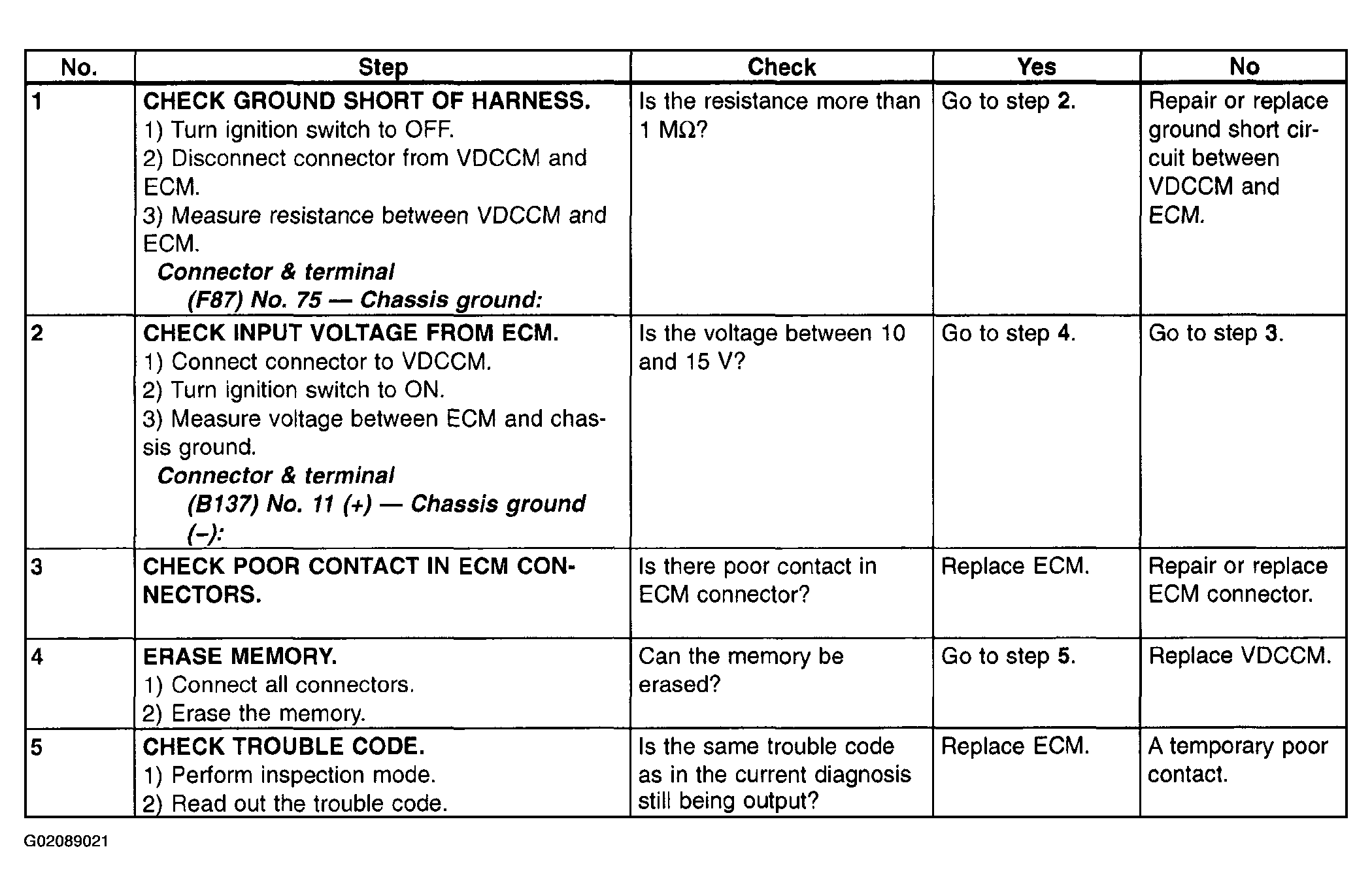

Fig 1: Diagnostic Chart - Trouble Code 48 - With Select Monitor (EAS Communication Line Grounding Shorted)
G02089021
