A/T Technical Data

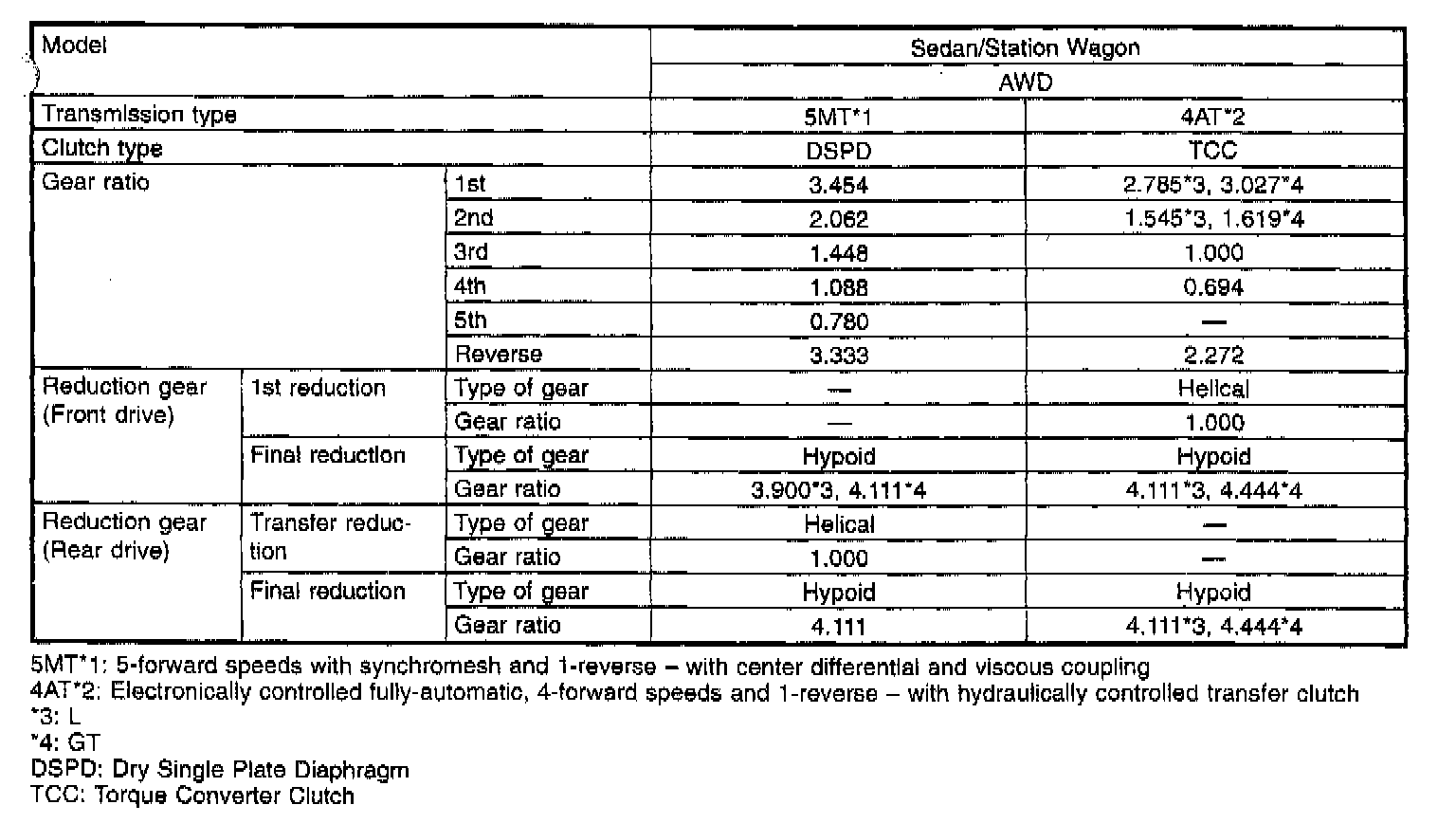

5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:

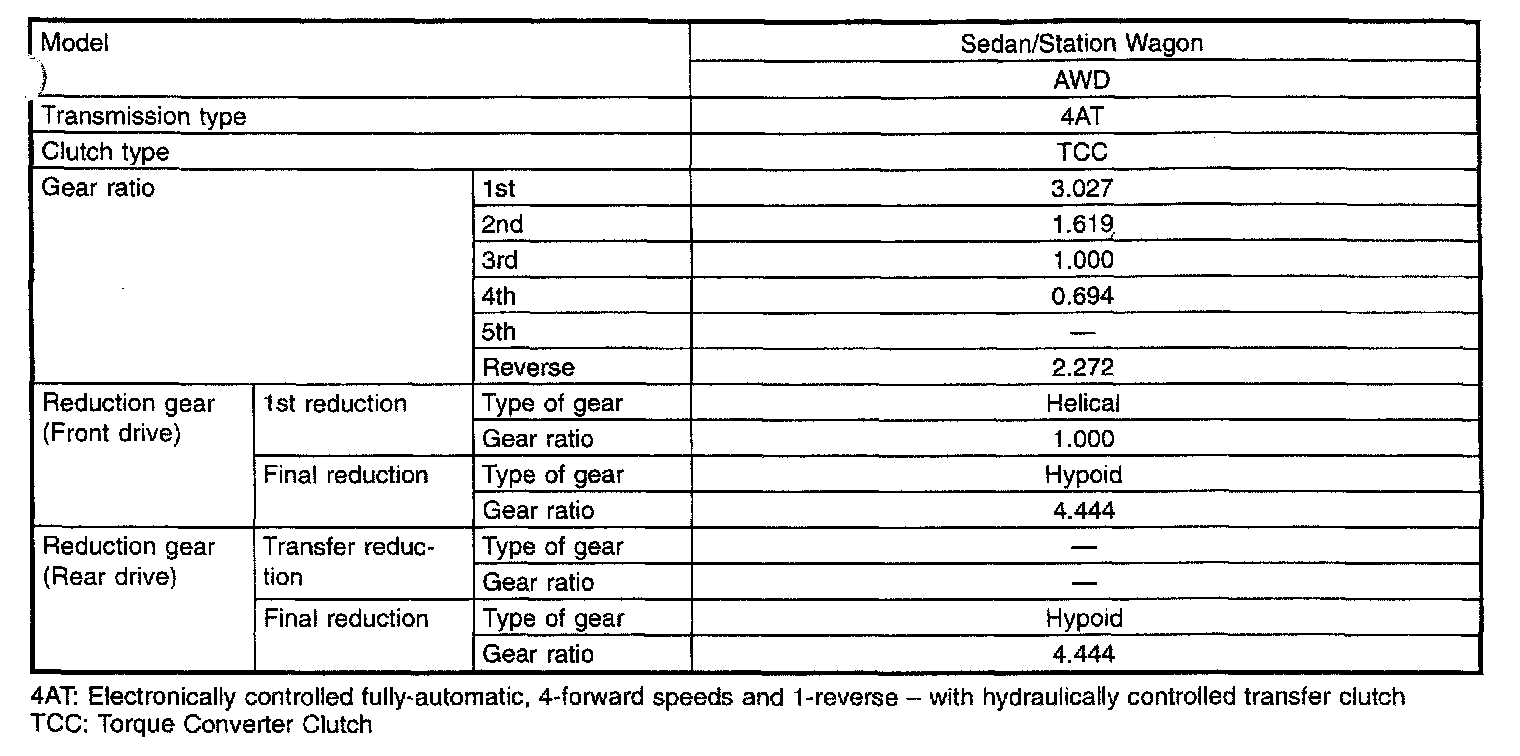

4-spd A/T, Transmission/Reduction Gear Ratios (Outback):

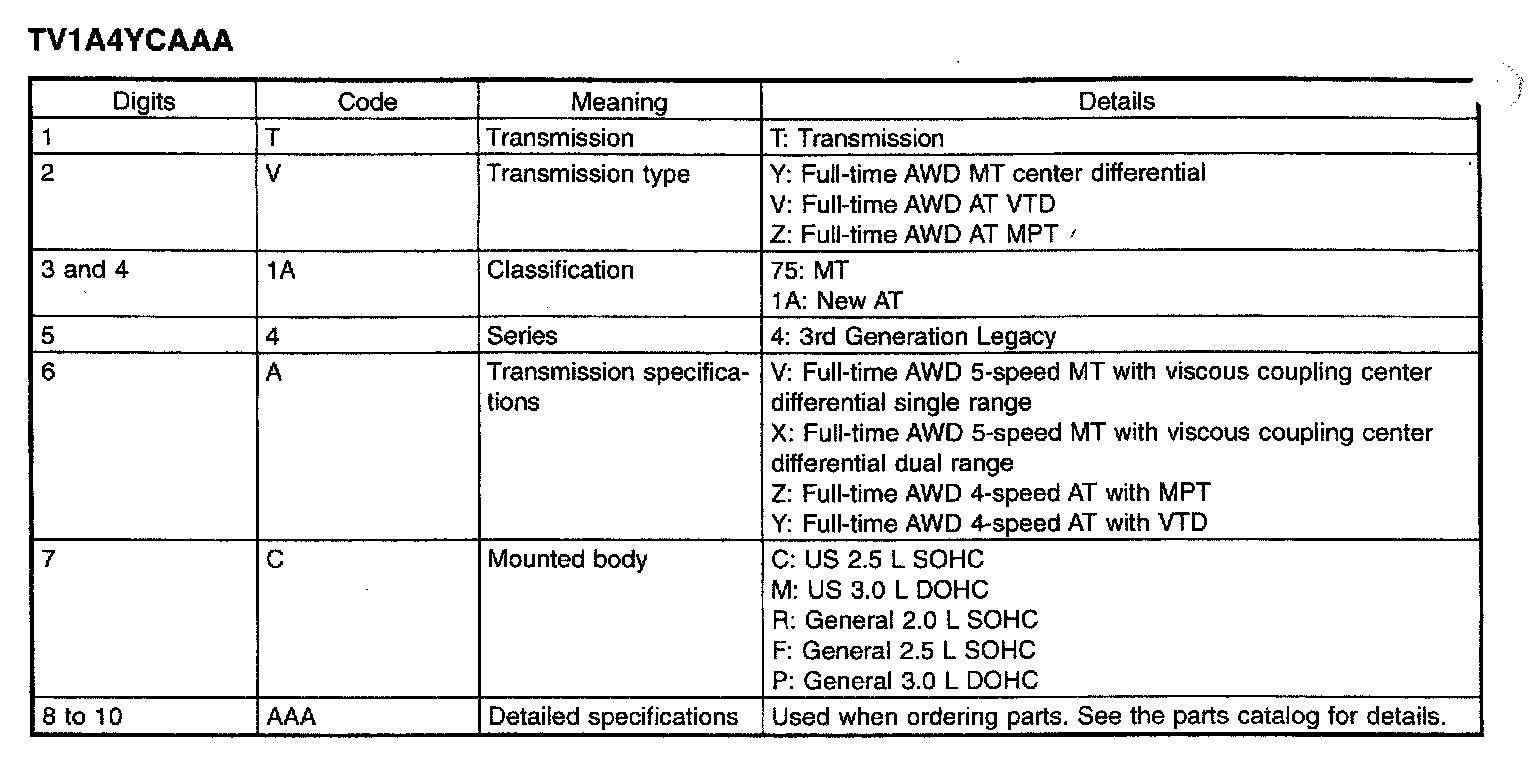

5-spd M/T/4-spd A/T, Transmission Identification Details:

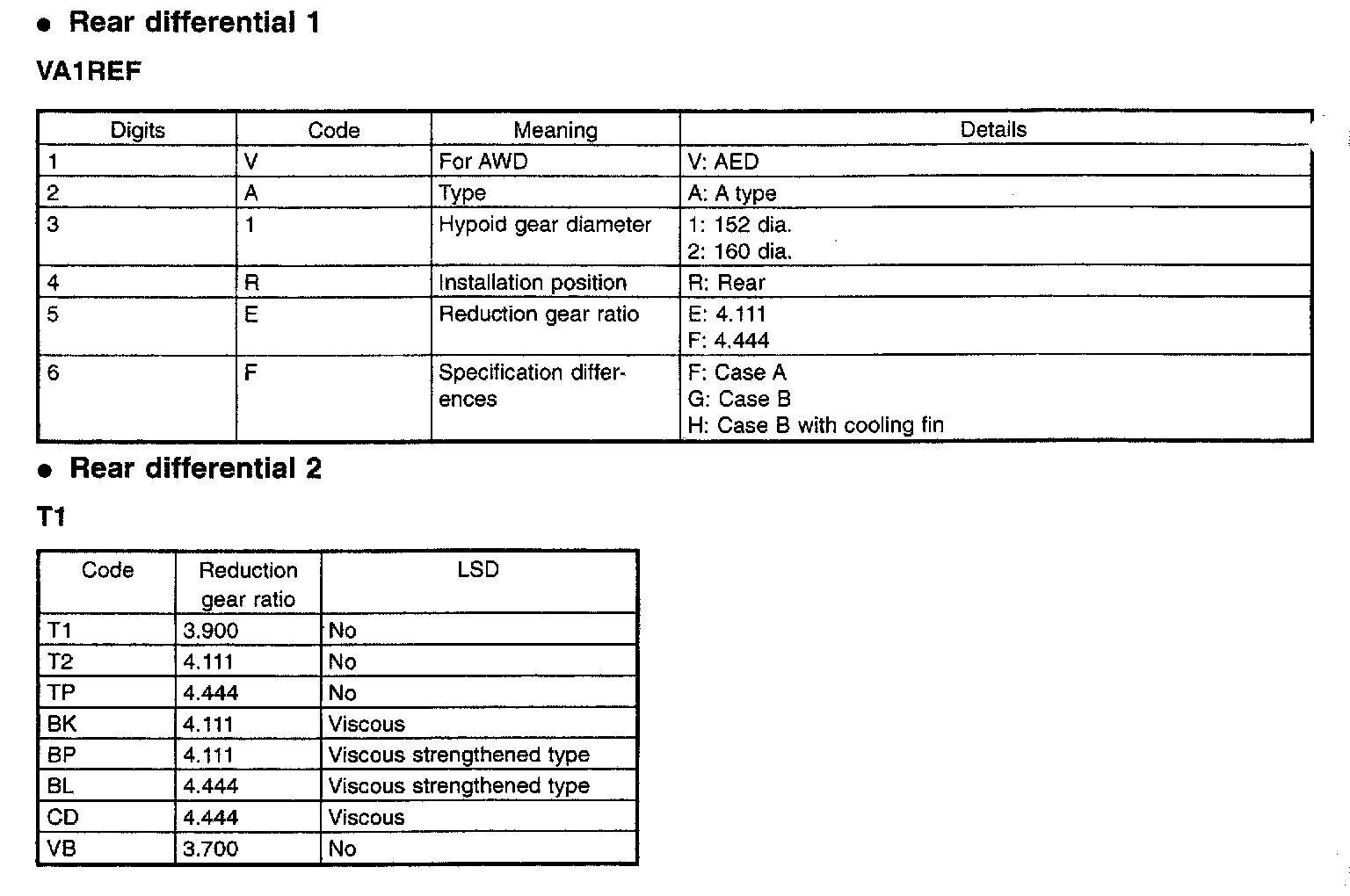

Rear Differential Identification Details & Ratios:

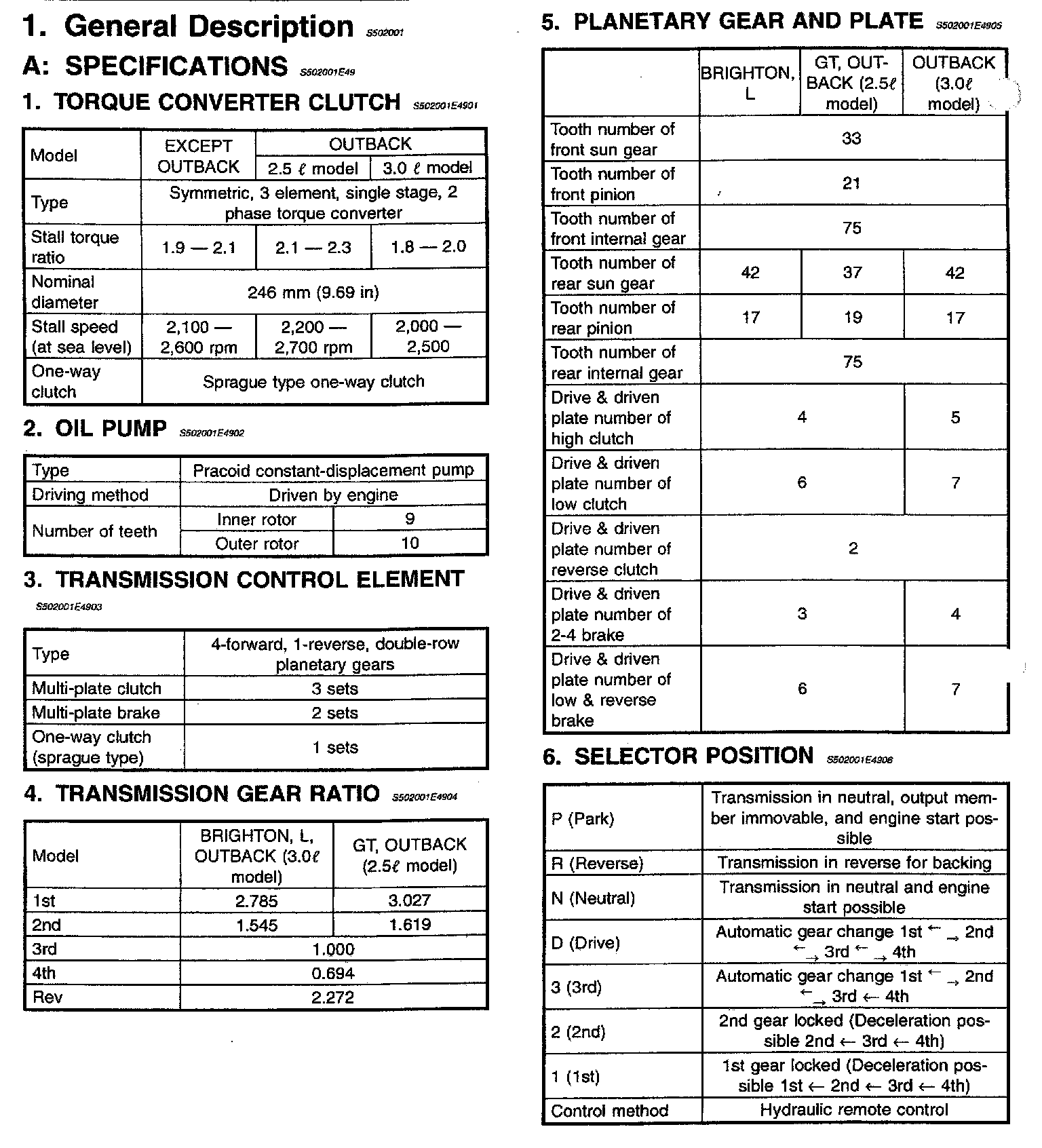

4-spd A/T, Transmission Service Data:

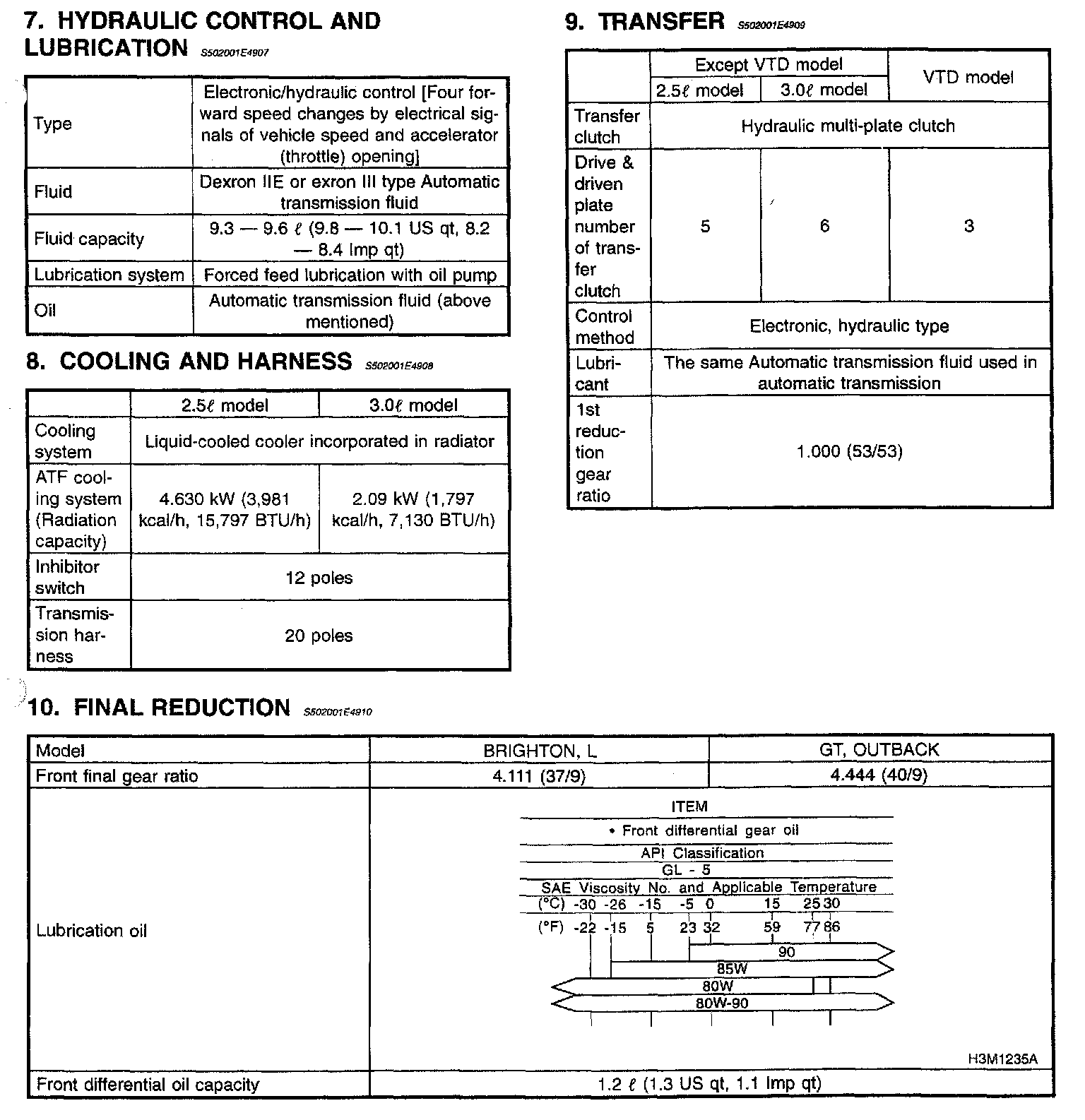

4-spd A/T, Transmission, Transfer Case & Final Reduction Data:
