Control Module Power Supply and Ground Line

1. CONTROL MODULE POWER SUPPLY AND GROUND LINE
DIAGNOSIS: Faulty harness connector

TROUBLE SYMPTOM: AT OIL TEMP warning light remains on.

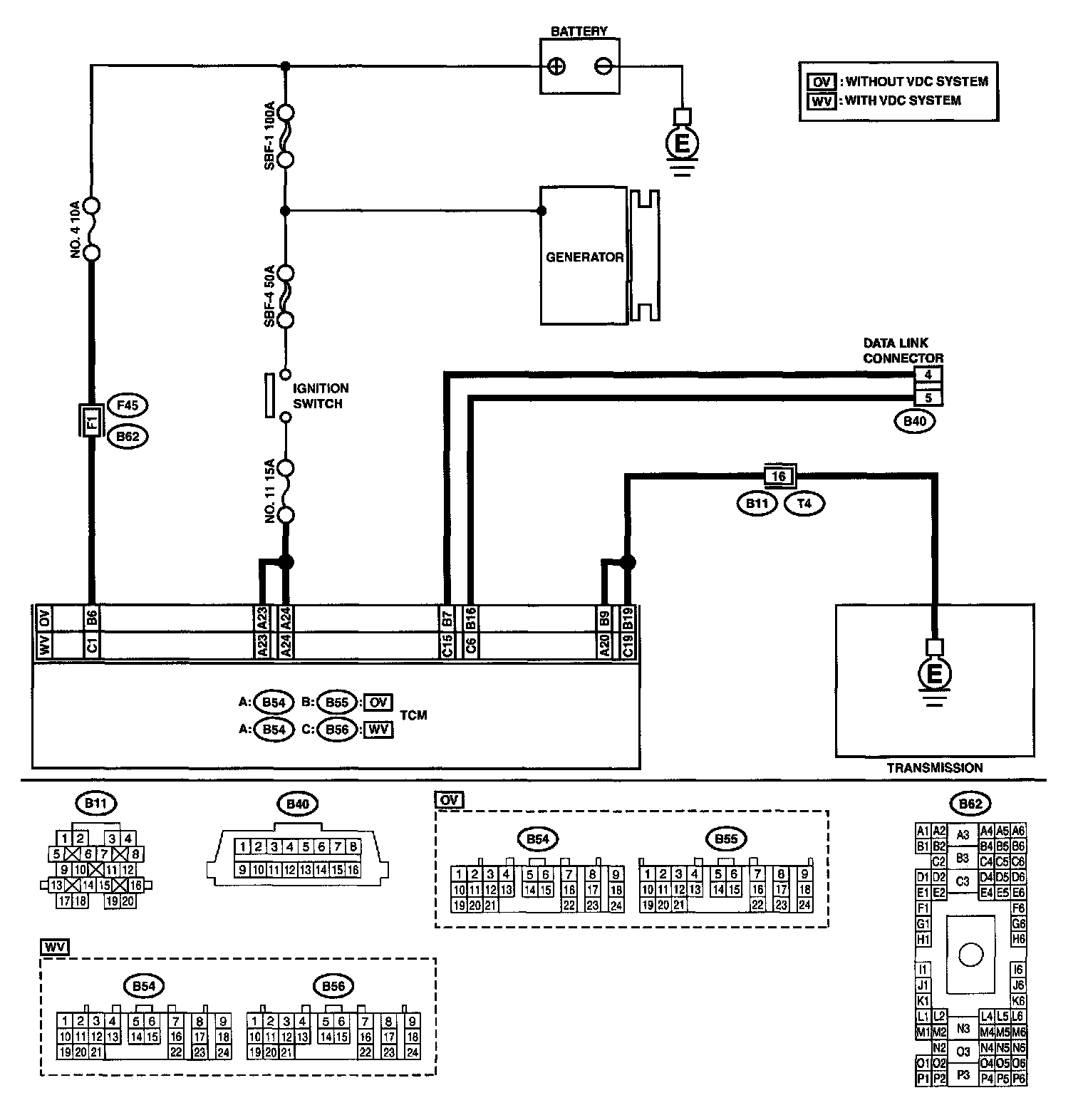

WIRING DIAGRAM:

PROCEDURE:

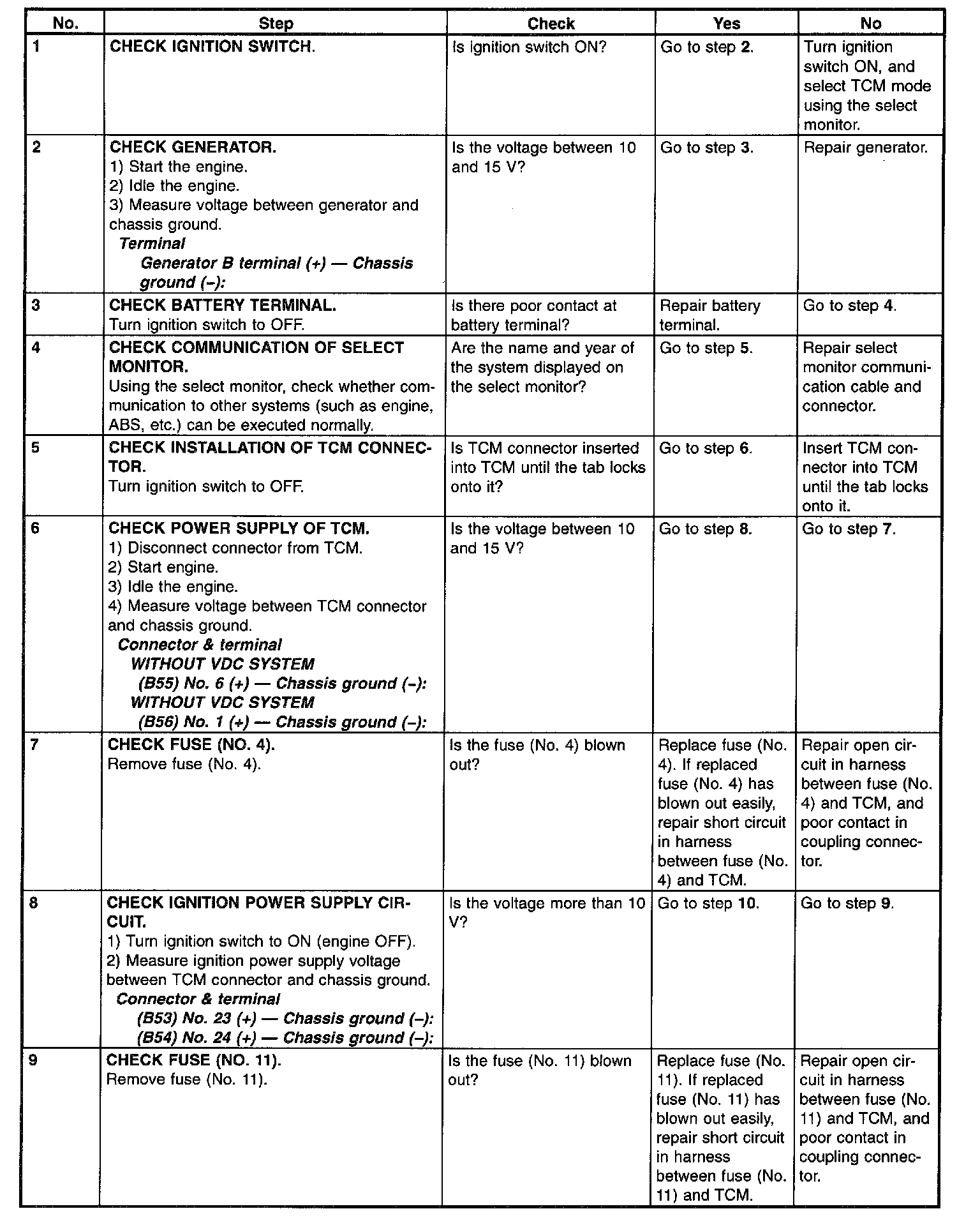

No.1 - 9

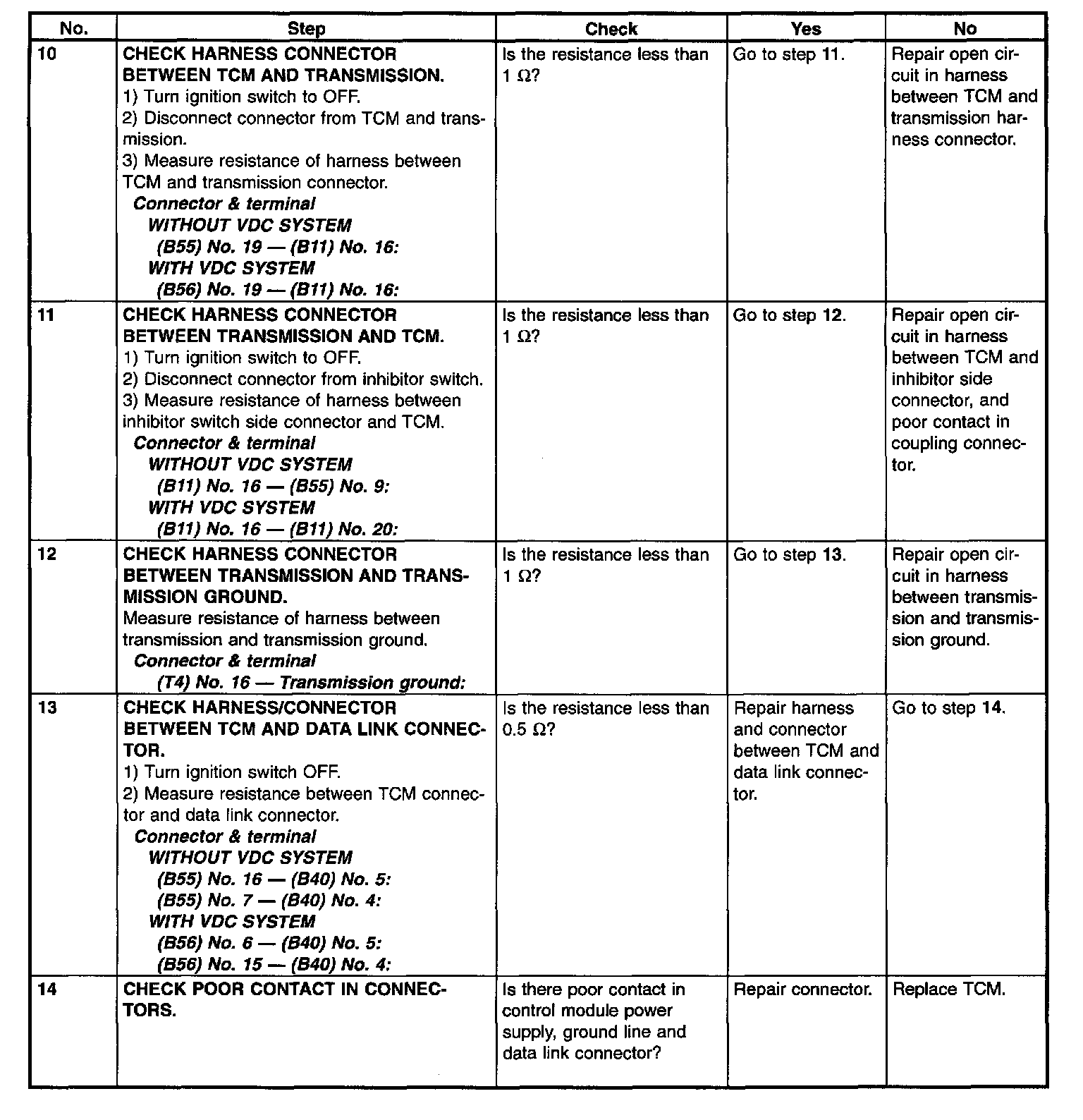

No.10 - 14
