MT Vehicle

The propeller shaft model utilizes a 2-piece design that is provided with three joints.

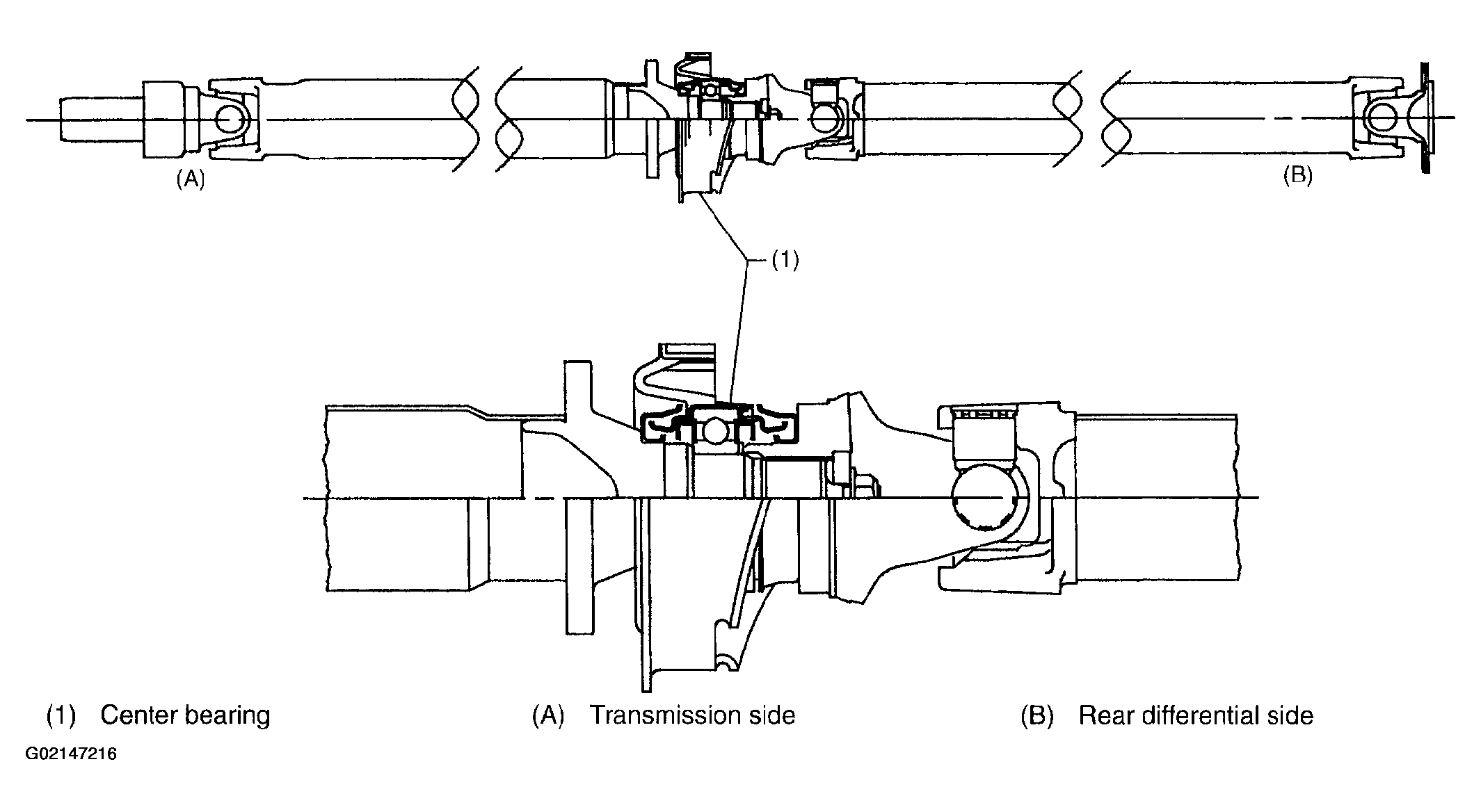

Fig 1: Identifying Propeller Shaft Components (MT Vehicles)
G02147216
